Diagnostic Method

Judge OK and clear NG when the malfunction criteria below are completed.

Judgment Value

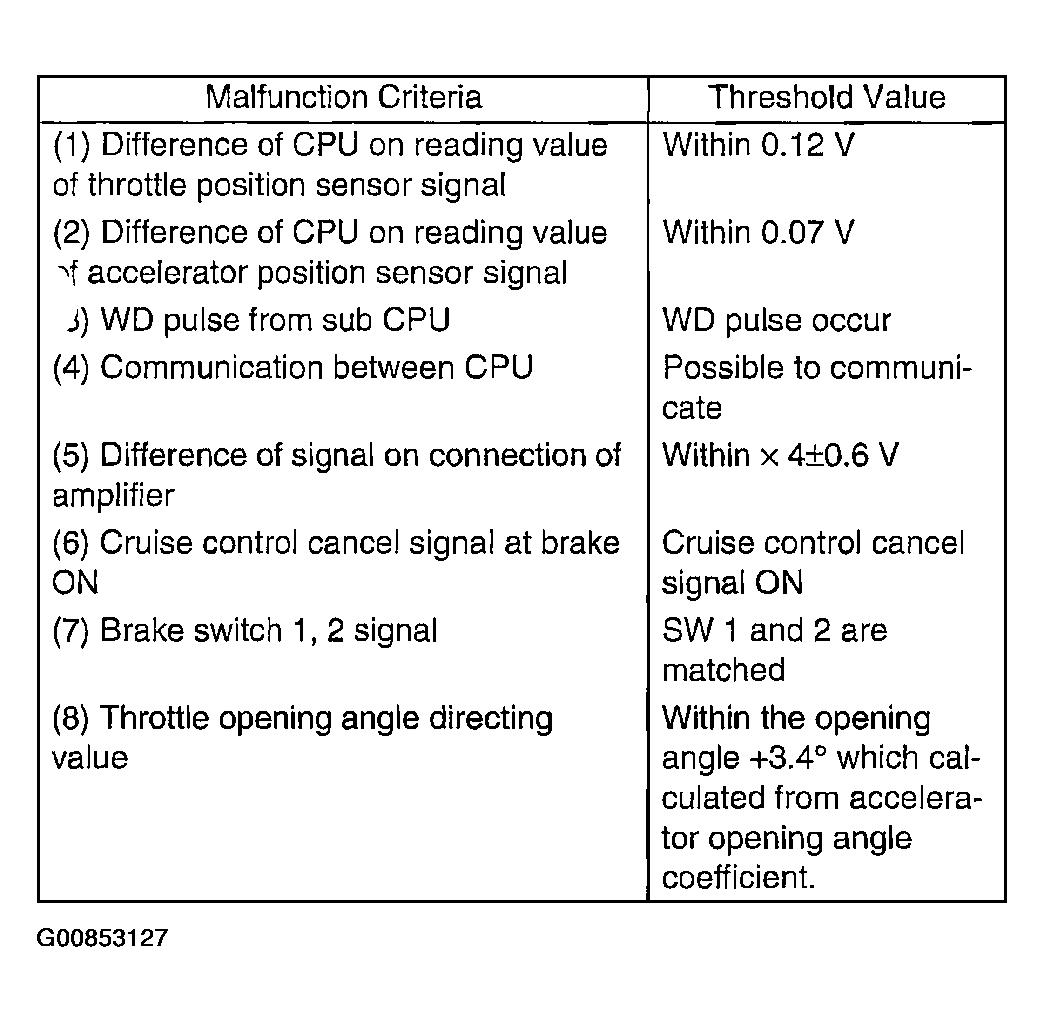

Fig 1: Threshold Valve Table

Courtesy of SUBARU OF AMERICA, INC.

Time Needed for Diagnosis:

1. 250 milliseconds
2. 250 milliseconds
3. 200 milliseconds
4. 200 milliseconds
5. 24 milliseconds
6. 250 milliseconds
7. 200 milliseconds
8. 250 milliseconds

Malfunction Indicator Light Illumination:  Illuminates as soon as malfunction occurs.
