Engine Control Module (ECM) I/O Signal Connector End Views (2.5L Turbo)

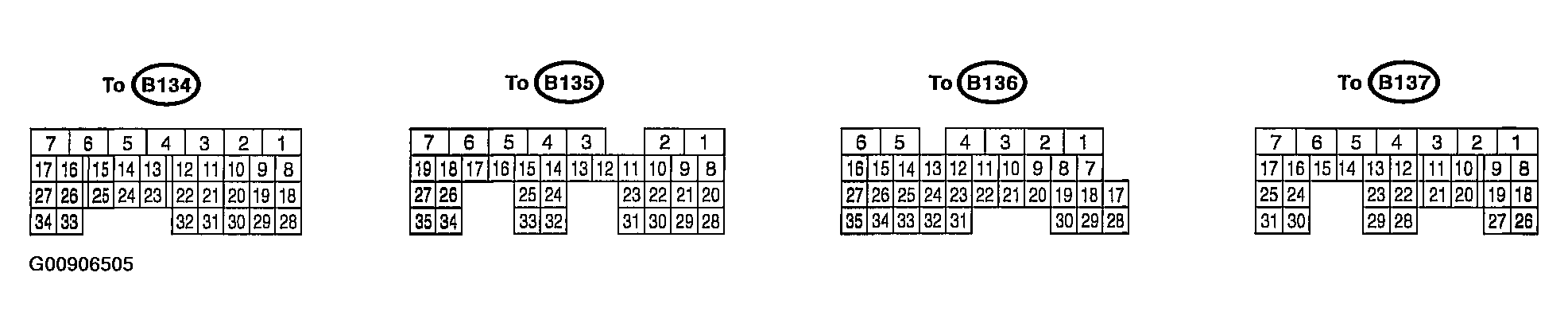

Fig 1: Engine Control Module (ECM) I/O Signal Connector End Views (2.5L Turbo)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
