Power Assisted System
Except TURBO model
Fig 1: Exploded View Of Power Assisted System (Except TURBO Model)
Courtesy of SUBARU OF AMERICA, INC.
TURBO model

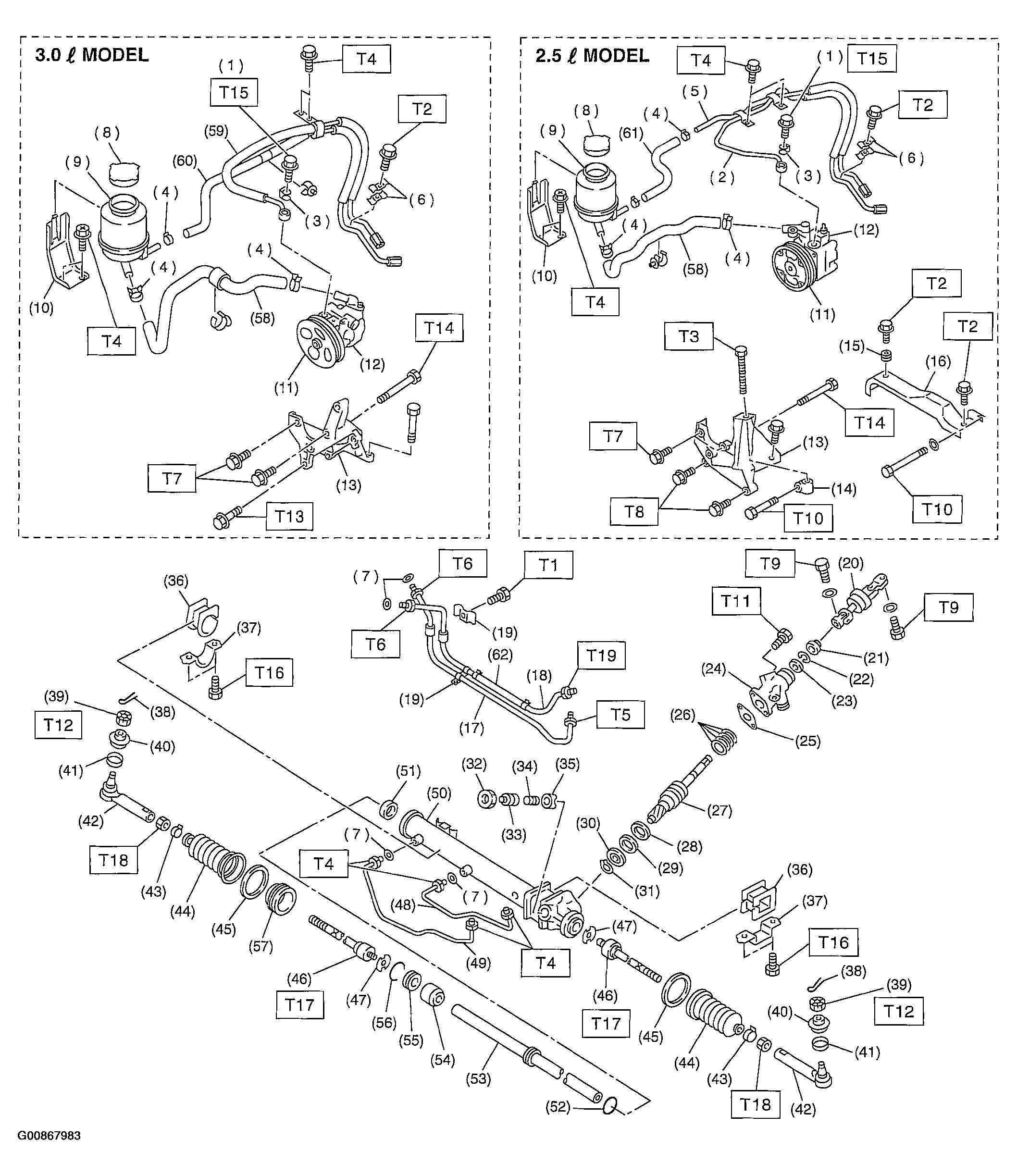

Fig 2: Exploded View Of Power Assisted System With Torque Specifications (TURBO Model)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
