Slip Control

When front or rear wheels start slipping with the vehicle running slower than the predetermined speed, the TCM makes control to increase the differential action limiting torque.

This function maintains traction and improves driving stability.

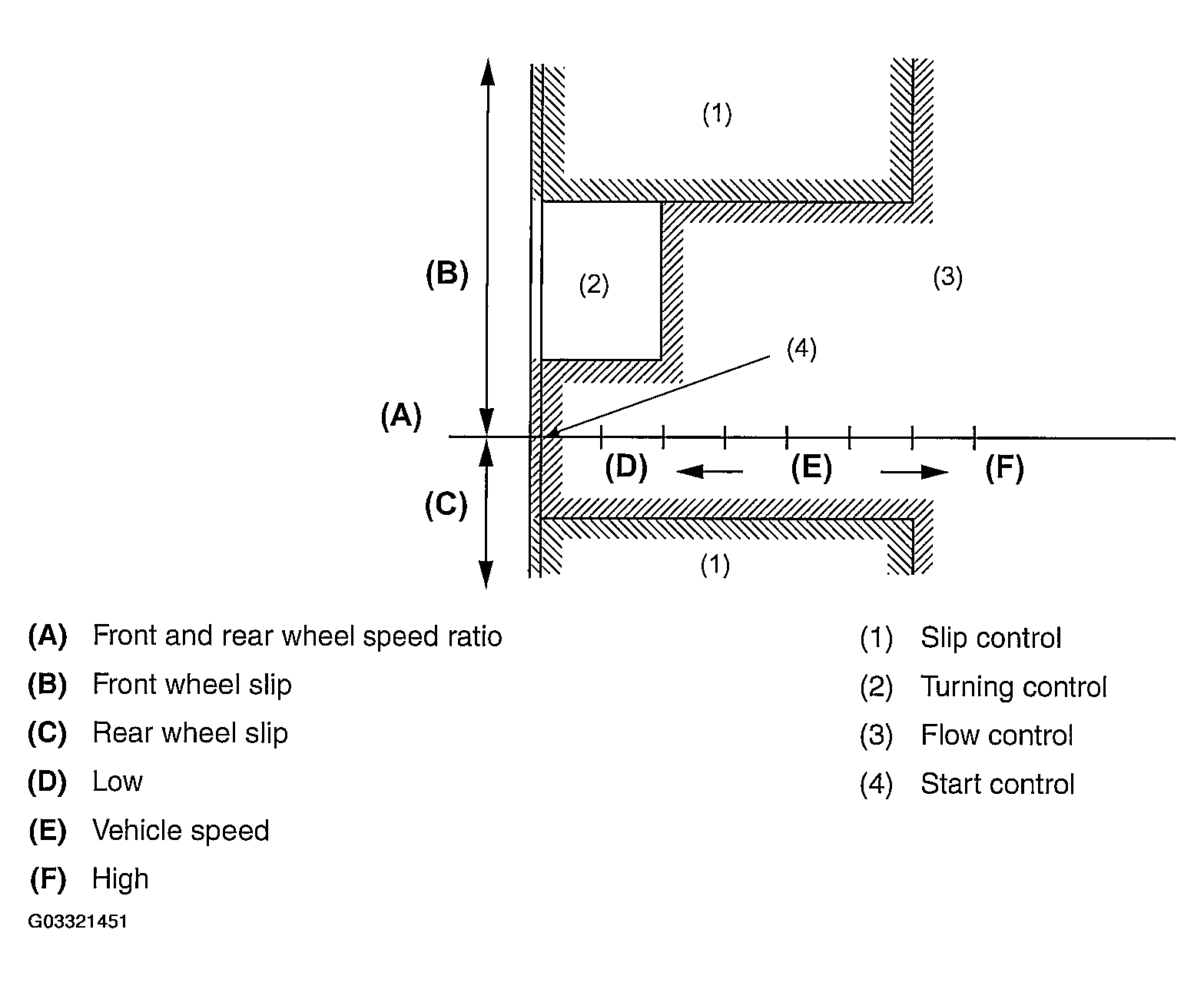

Fig 1: Identifying Slip Control
G03321451Courtesy of SUBARU OF AMERICA, INC.
