Wiring Diagram:

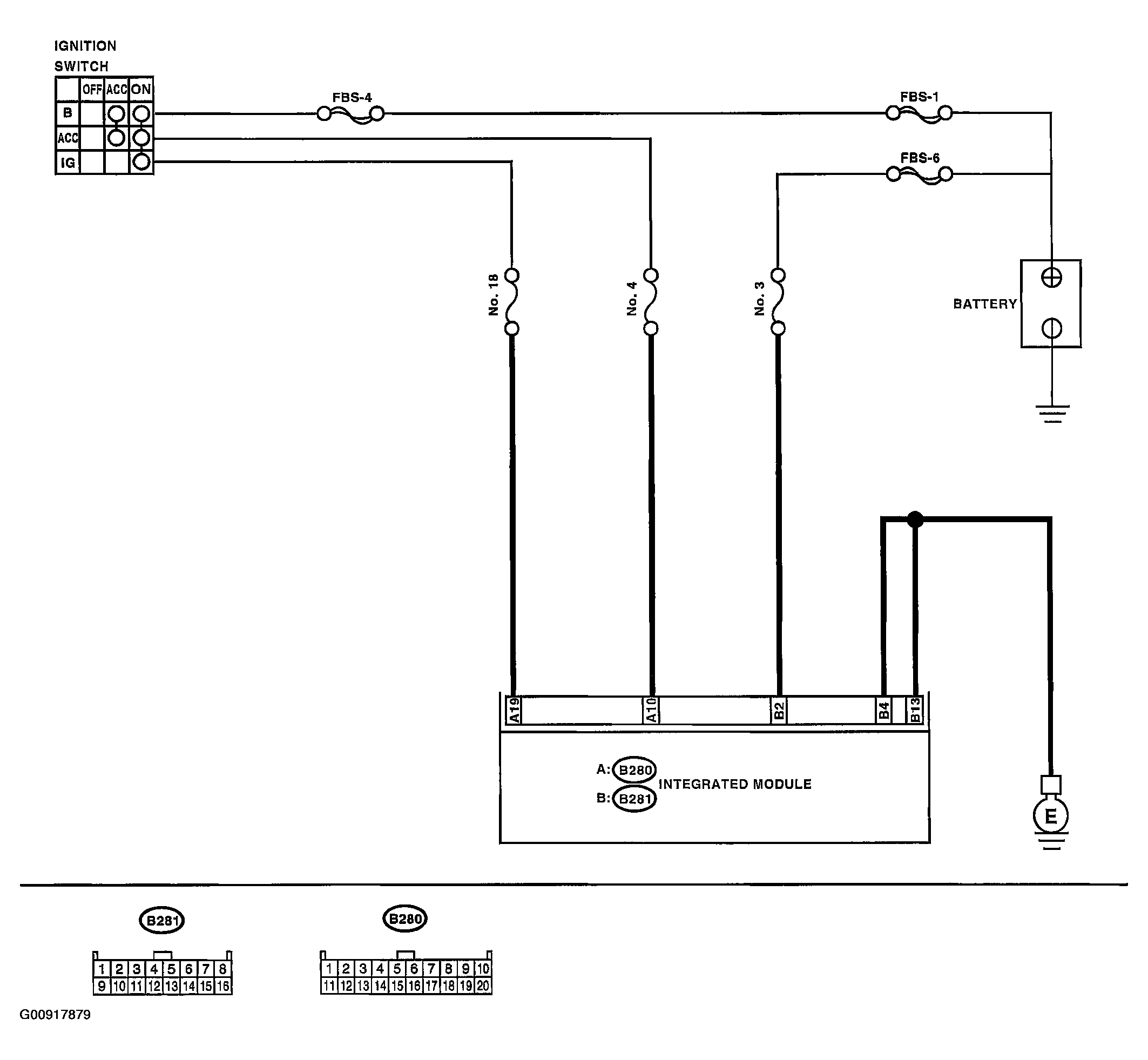

Fig 1: Integrated Module Power Supply & Ground Line Wiring Diagram
G00917879Courtesy of SUBARU OF AMERICA, INC.

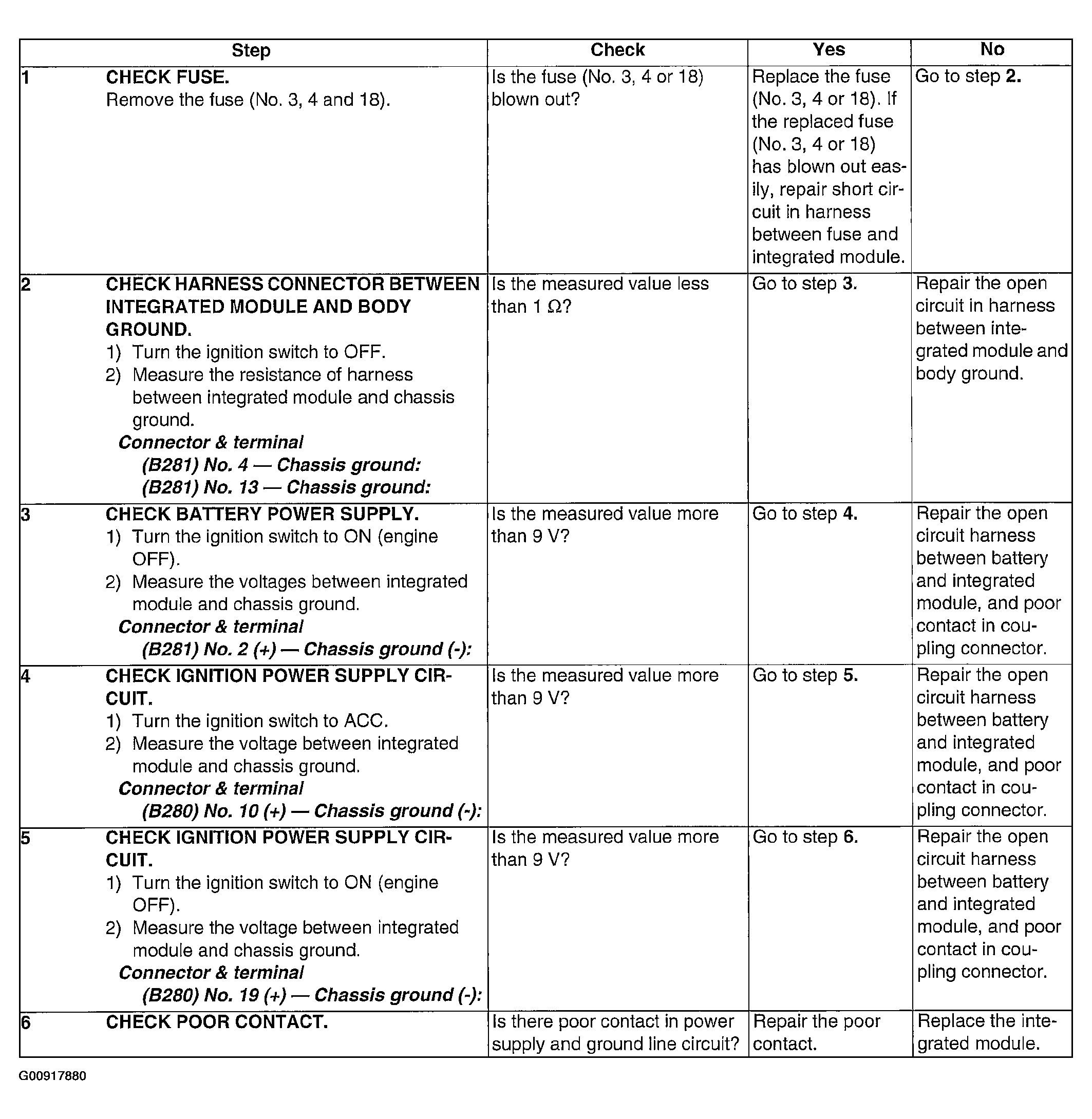

Fig 2: Inspection Chart
G00917880Courtesy of SUBARU OF AMERICA, INC.
