Subaru
>>
2004
>>
Baja Base, Automatic
>>
Repair and Diagnosis (Single Page)
>>
Transmission
>>
Transmission Control Systems
>>
A/T & M/T Control Systems
>>
AT Shift Lock System
>>
Key Interlock Does Not Lock Or Release
>>
Wiring Diagram:
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wiring Diagram:

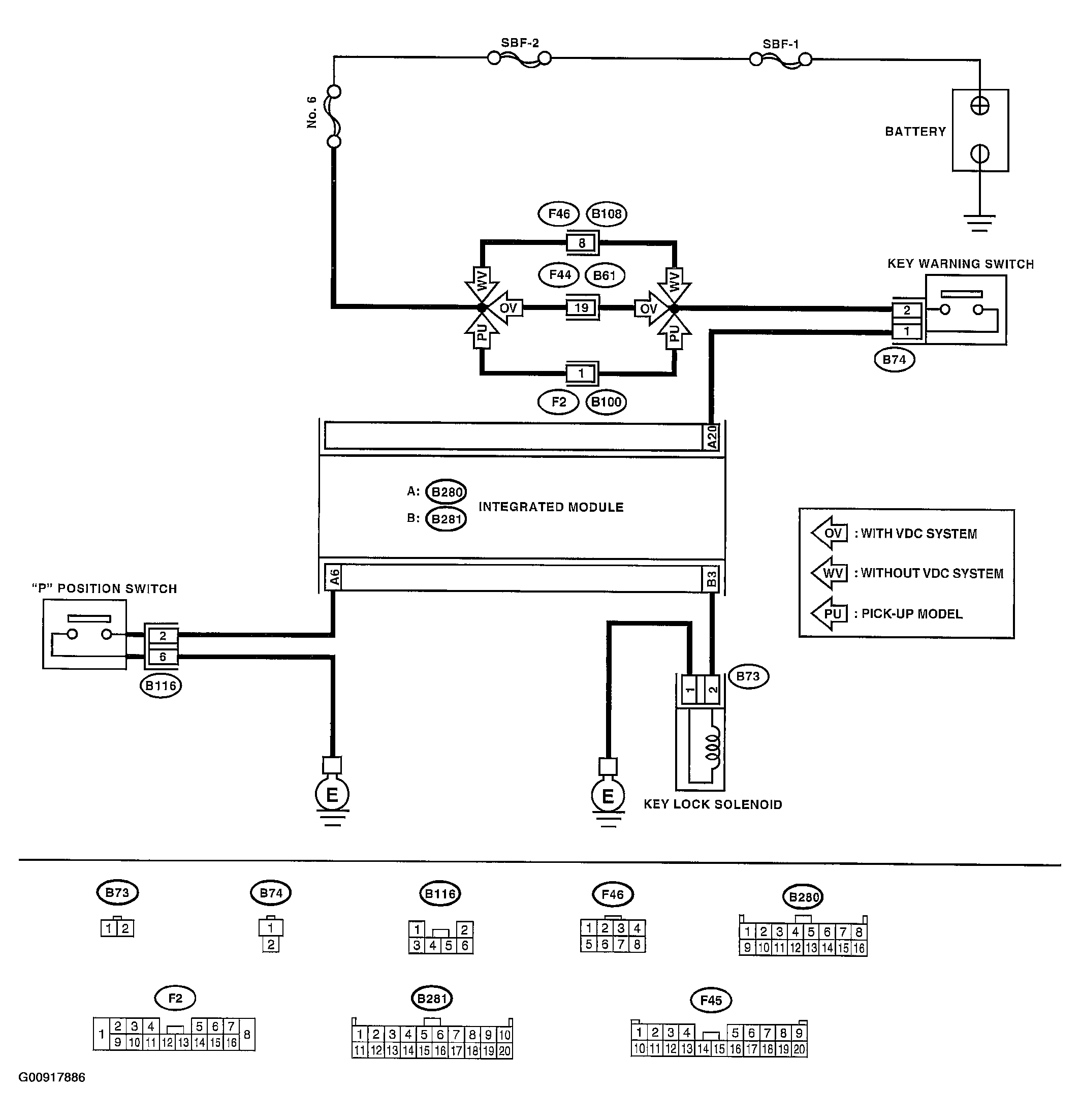

Fig 1: Key Interlock Does Not Lock Or Release Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

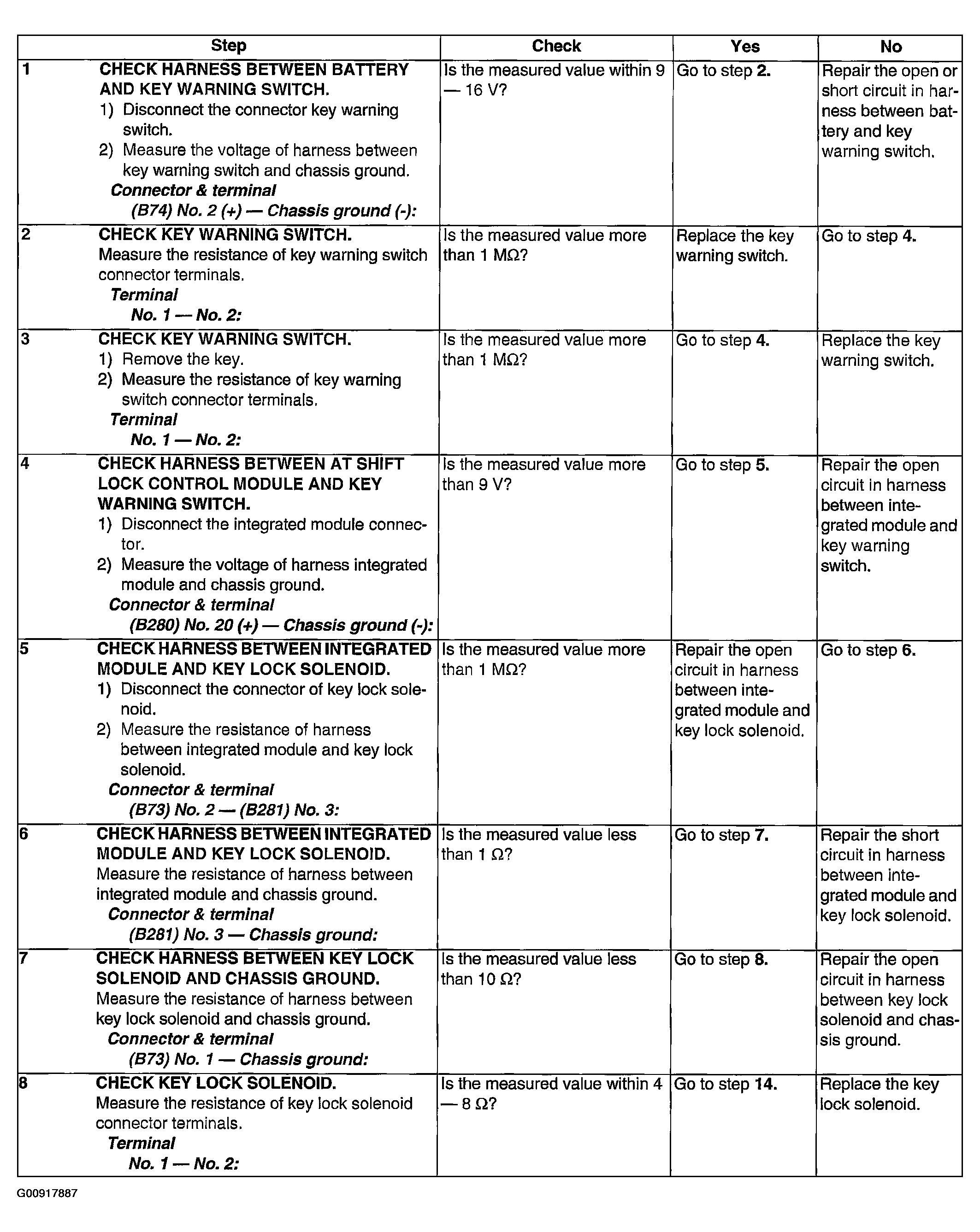

Fig 2: Inspection Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

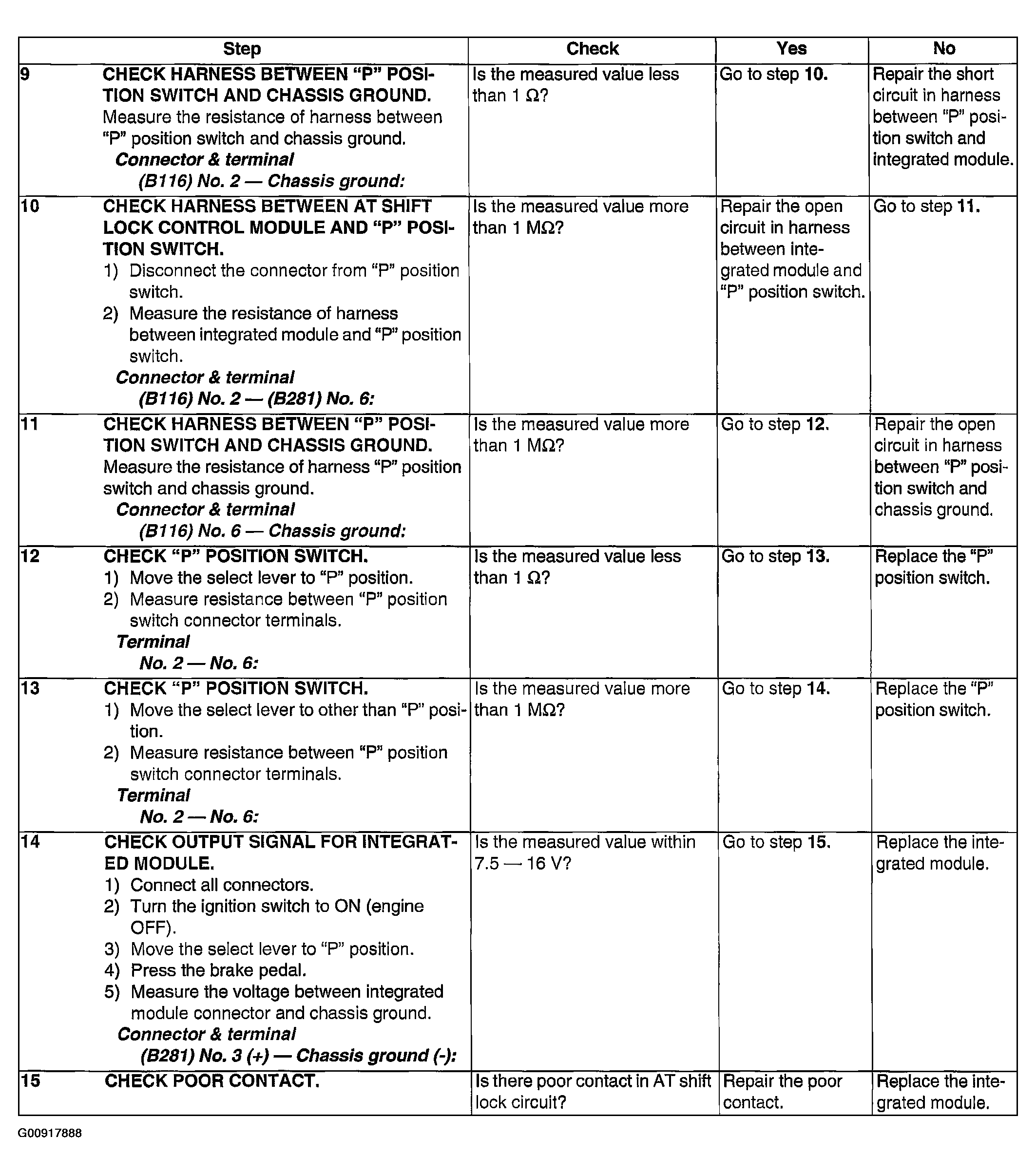

Fig 3: Inspection Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
