Wiring Diagram:

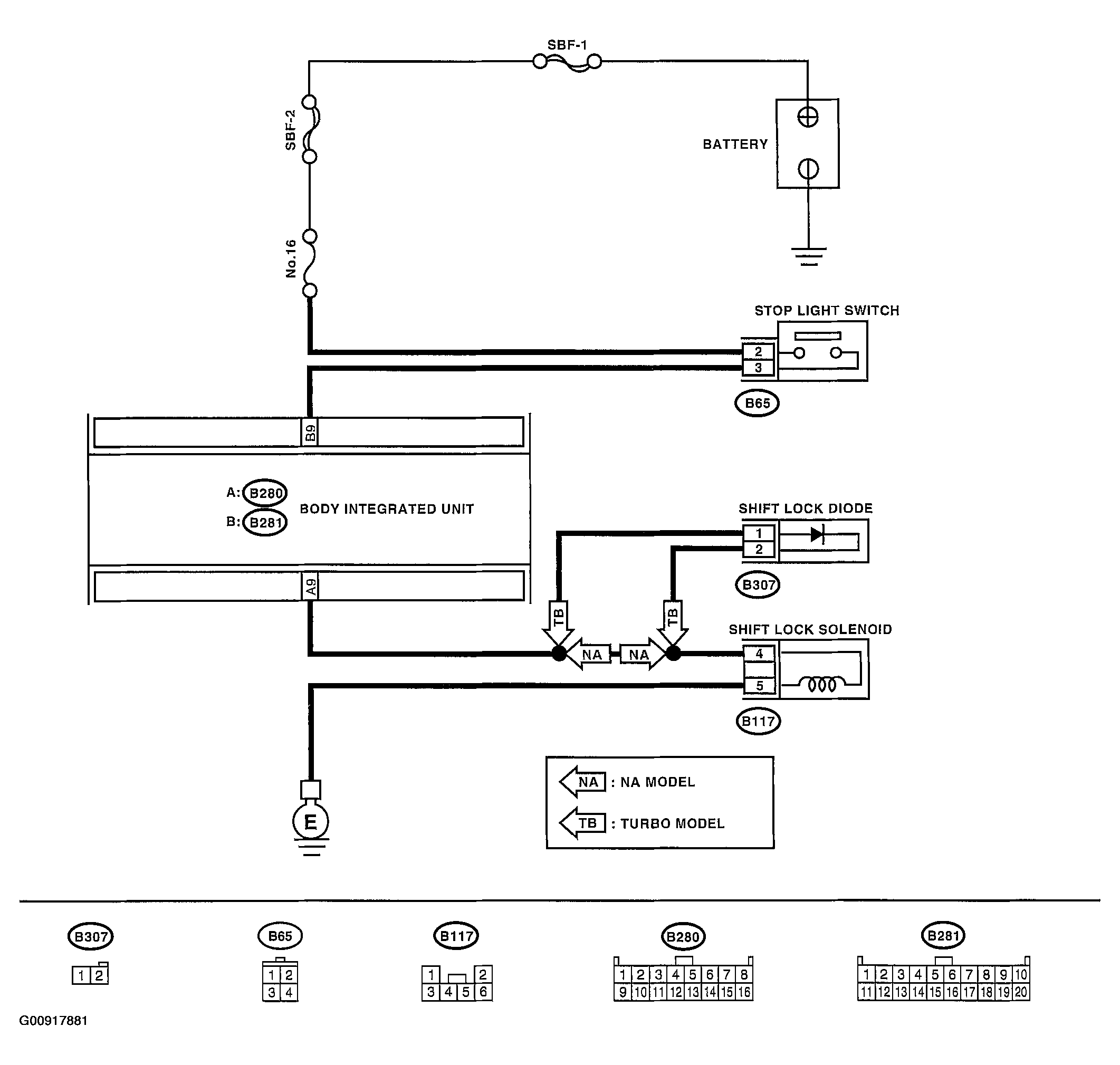

Fig 1: Select Lever Cannot Be Shift Locked Wiring Diagram
G00917881Courtesy of SUBARU OF AMERICA, INC.

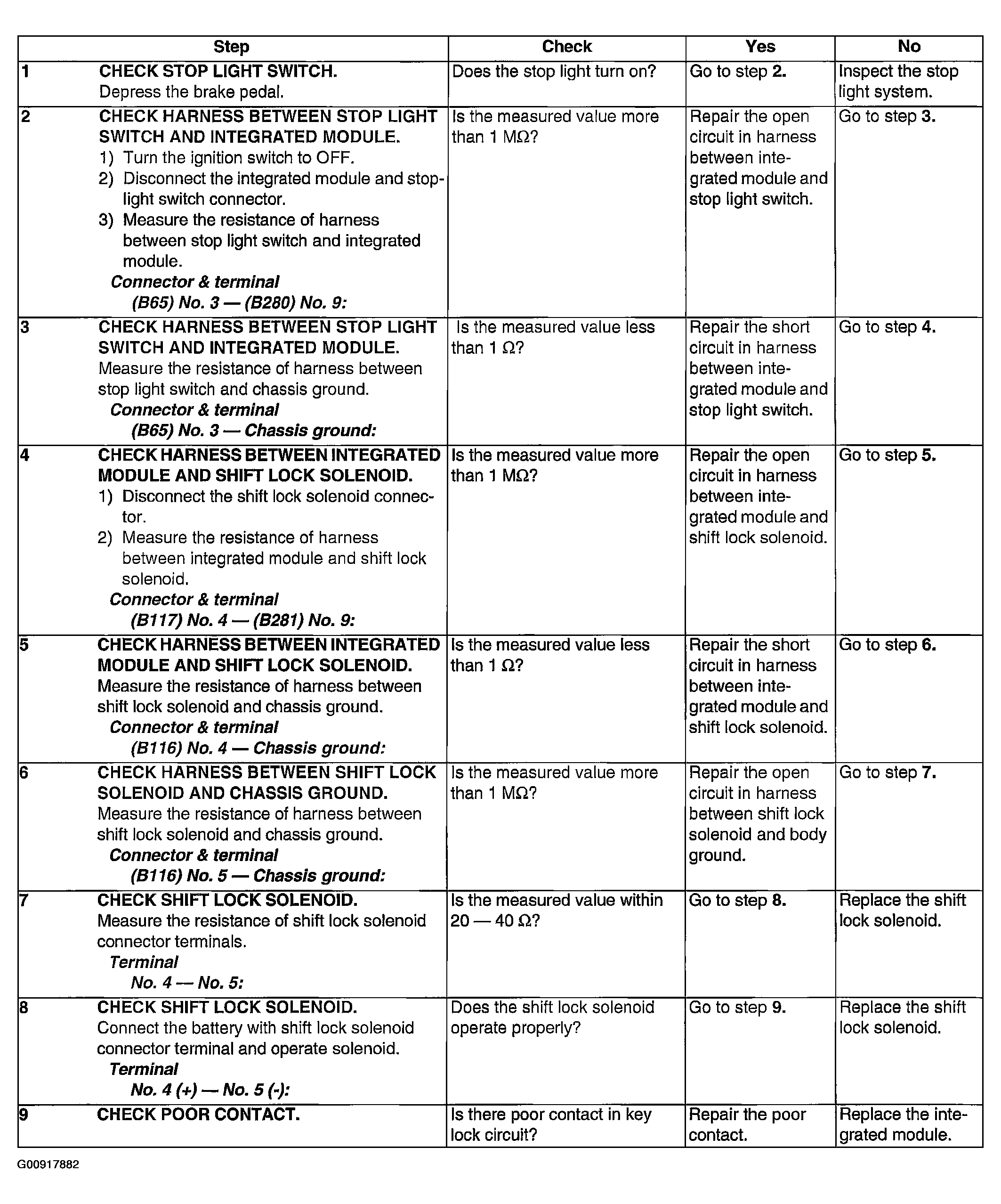

Fig 2: Inspection Chart
G00917882Courtesy of SUBARU OF AMERICA, INC.
