Rear Drive Shaft: Removal

  1. Remove transmission assembly. Refer to REMOVAL .
  2. Remove rear wheel speed sensor and separate extension case from transmission case. Refer to REMOVAL .
  3. Pull out the rear driveshaft from the center differential assembly.

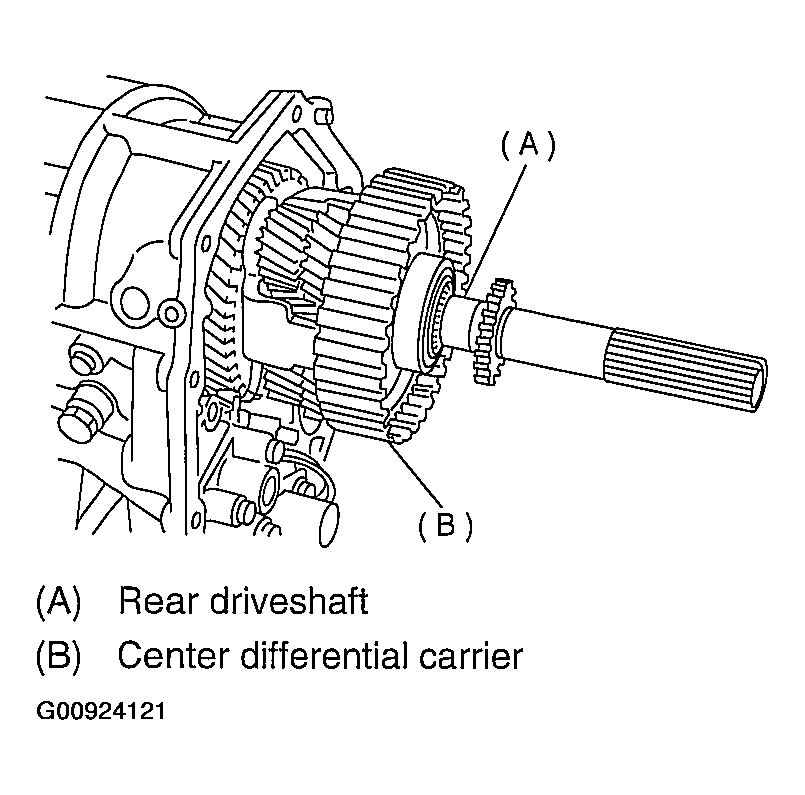

    Fig 1: Pulling Out Rear Driveshaft From Center Differential Assembly
    G00924121Courtesy of SUBARU OF AMERICA, INC.
  4. Remove drive plate and driven plate.
