Diagnostic Method

Abnormality Judgment
Judge NG when the cumulative time until completing the malfunction criteria below becomes more than the time (0.5 seconds) needed for diagnosis.
Judgment Value

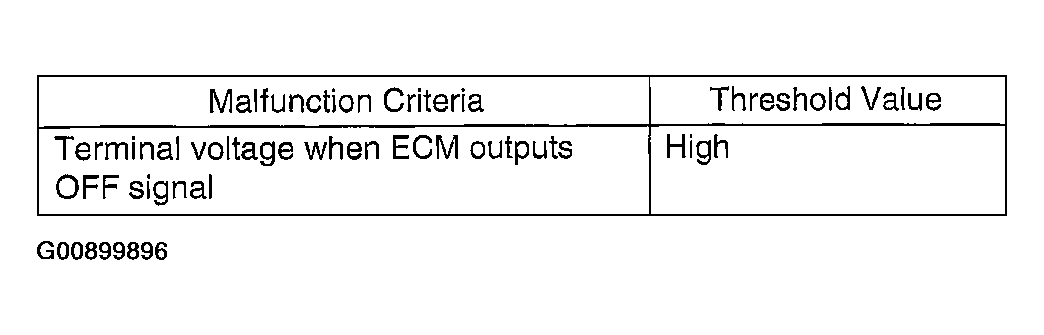

Fig 1: Threshold Value Table (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
1. Time Needed for Diagnosis:
  0.5 seconds
2. Malfunction Indicator Light Illumination:
  Illuminates when malfunction occurs in 2 continuous driving cycles.
Normality Judgment
Judge OK and clear the NG when the malfunction criteria below are completed.
Judgment Value

Fig 2: Threshold Value Table (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
