DTC P2128: Throttle/Pedal Position Sensor/Switch "E" Circuit HIGHT Input: Wiring Diagram

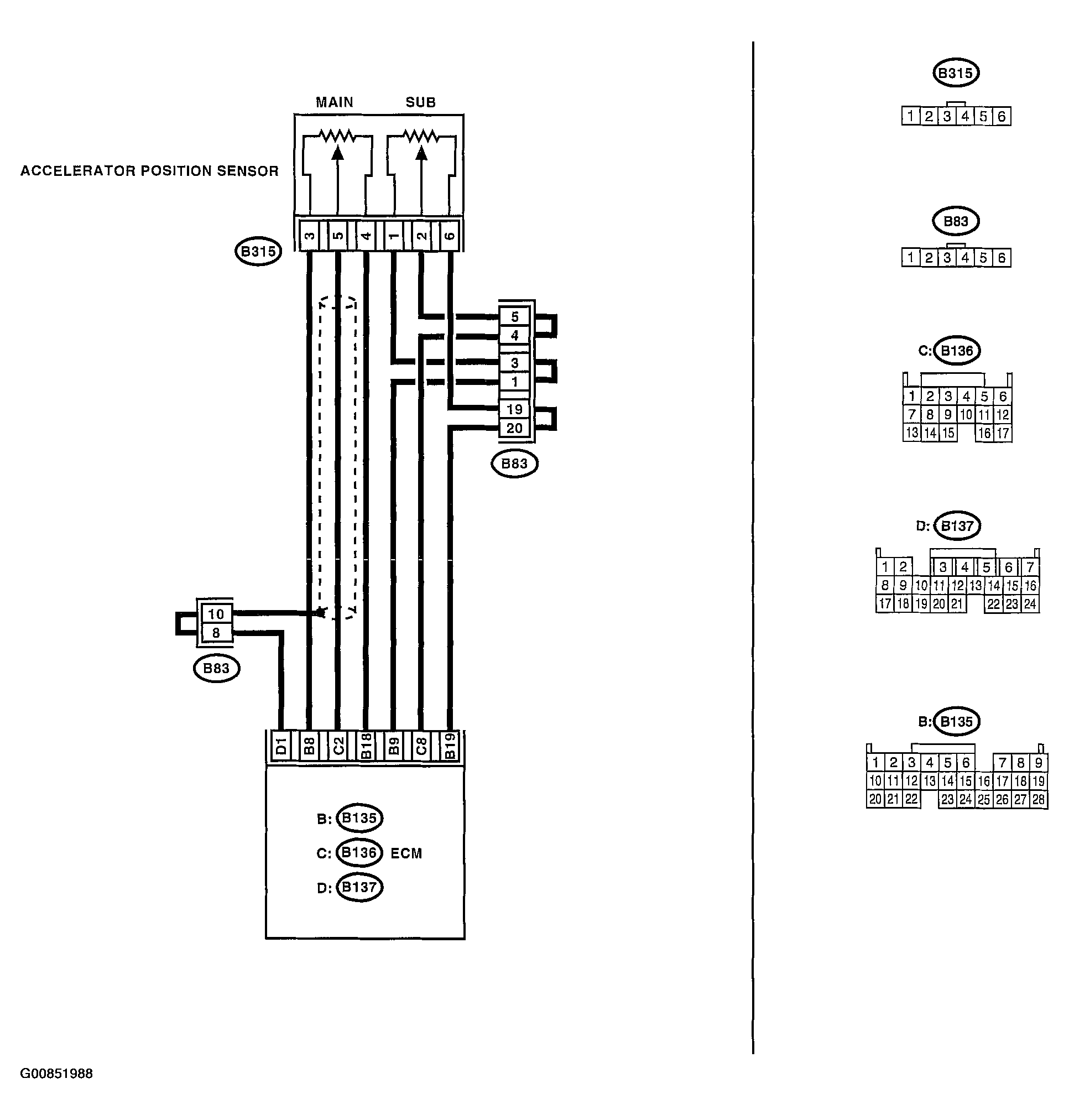

Fig 1: DTC P2128 - Throttle/Pedal Position Sensor/Switch "E" Circuit Height Input - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
