Read Current Data For Engine (Normal Mode)

On << Main Menu>> display screen, select the {Each System Check} and press the [YES] key.
On << System Selection Menu>> display screen, select the {Engine Control System} and press the [YES] key.
Press the [YES] key after the information of engine type is displayed.
On << Engine Diagnosis>> display screen, select the {Current Data Display & Save} and press the [YES] key.
On << Data Display Menu>> display screen, select the {Data Display} and press the [YES] key.
Using the scroll key, move the display screen up or down until the desired data is shown.
- A list of support data is shown in the following table.

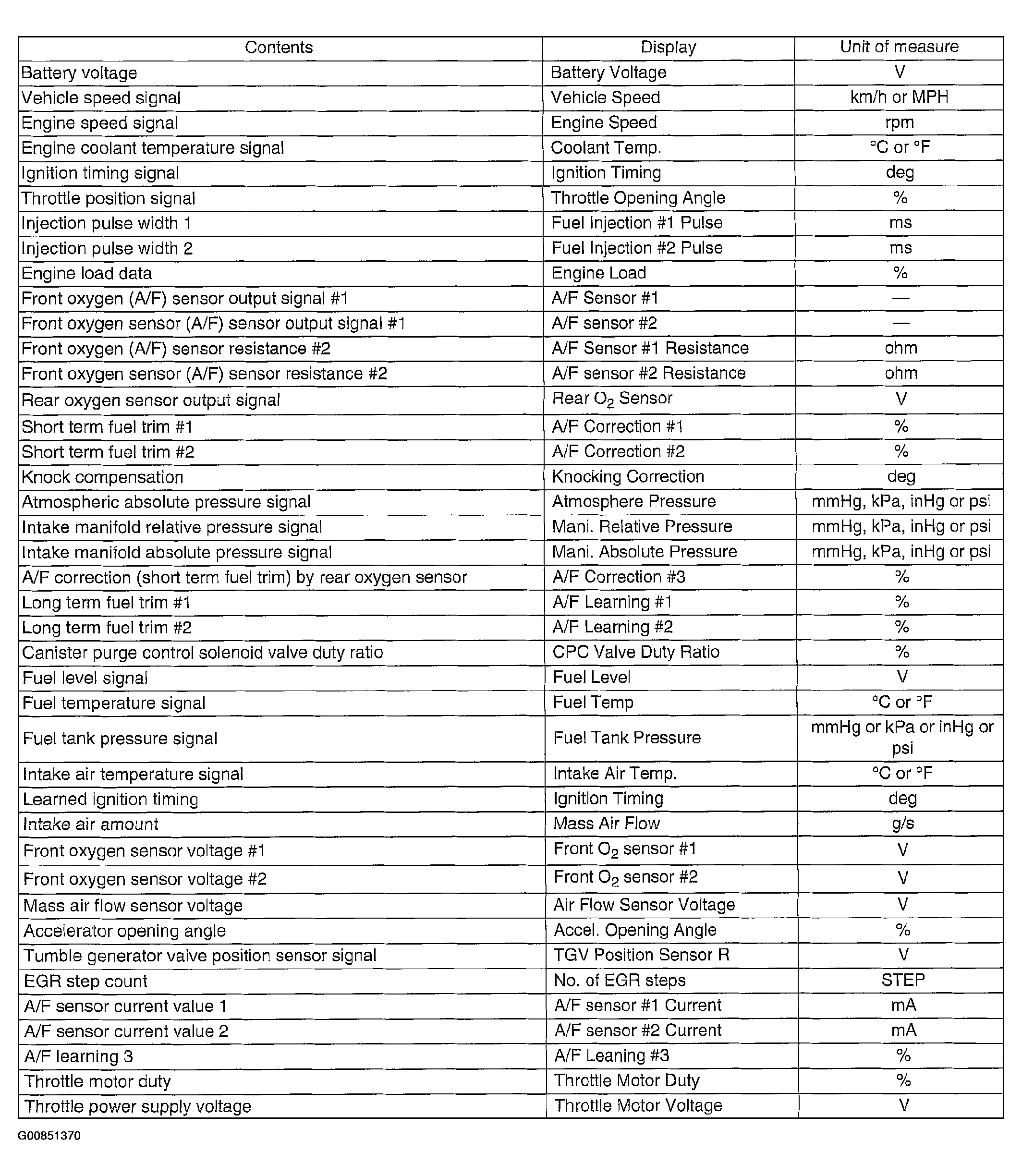

Fig 1: Read Current Data For Engine (Normal Mode) Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

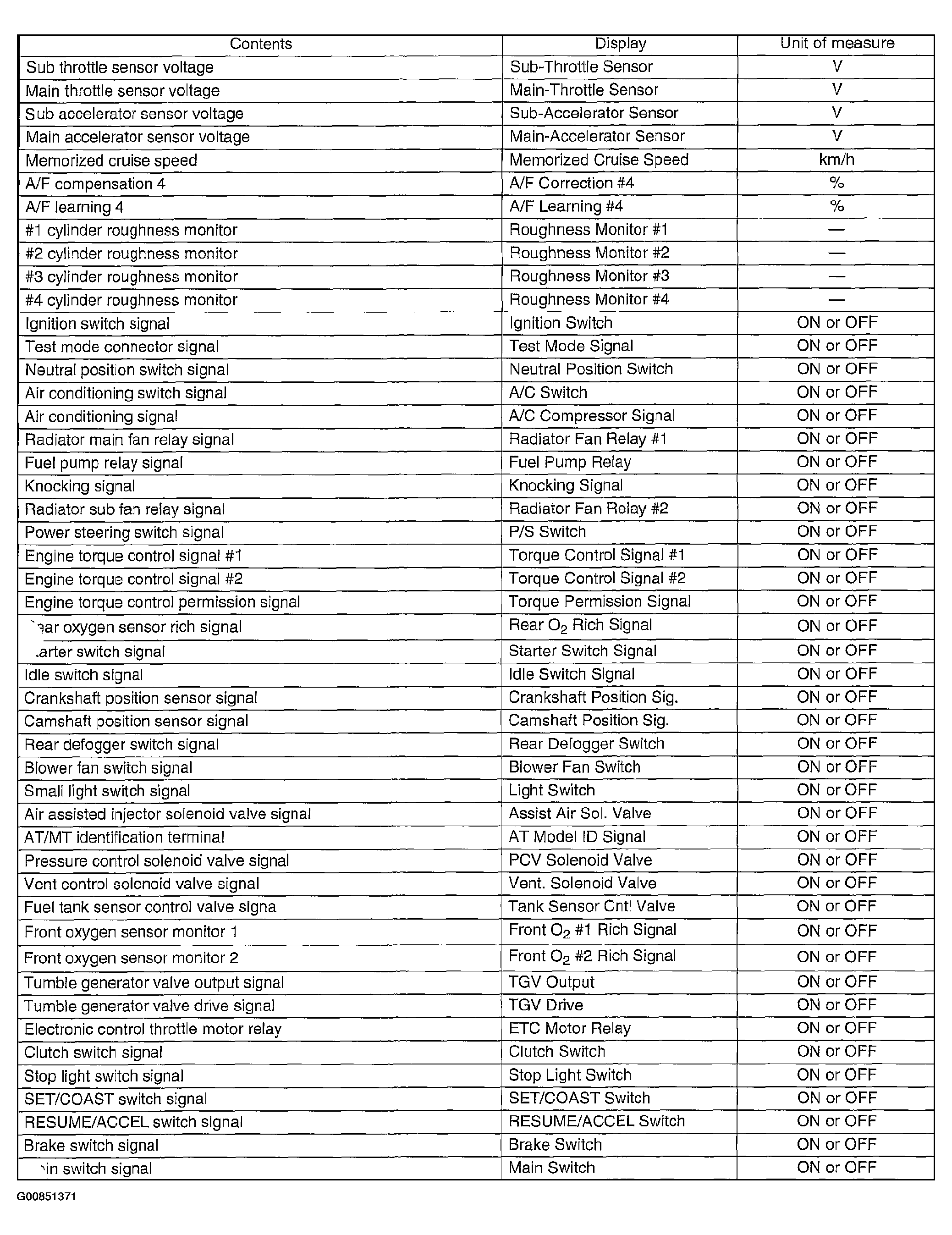

Fig 2: Read Current Data For Engine (Normal Mode) Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: For detailed operation procedure, refer to the Subaru Select Monitor Operation Manual.
