Read Freeze Frame Data For Engine (OBD Mode)

On << Main Menu>> display screen, select the {Each System Check} and press the [YES] key.
On << System Selection Menu>> display screen, select the {Engine Control System} and press the [YES] key.
Press the [YES] key after the information of engine type is displayed.
On << Engine Diagnosis>> display screen, select the {OBD System} and press the [YES] key.
On << OBD Menu>> display screen, select the {Freeze Frame Data} and press the [YES] key.

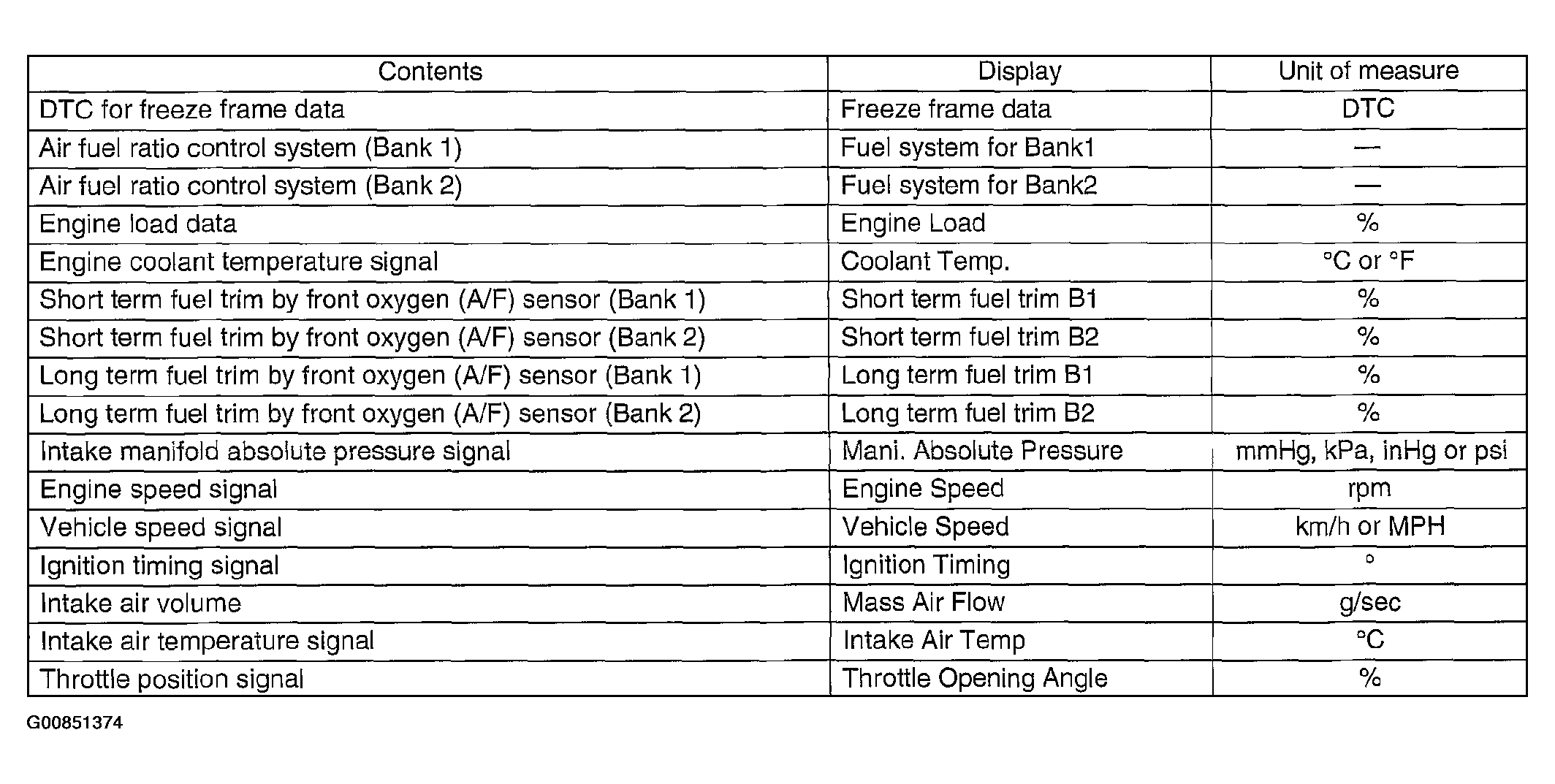

- A list of support data is shown in the following table.

Fig 1: Read Freeze Frame Data For Engine (OBD Mode) Chart

Courtesy of SUBARU OF AMERICA, INC.

NOTE: For detailed operation procedure, refer to the Subaru Select Monitor Operation Manual.
