DTC P0133: O2 Sensor Circuit Slow Response (Bank 1 Sensor 1)
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

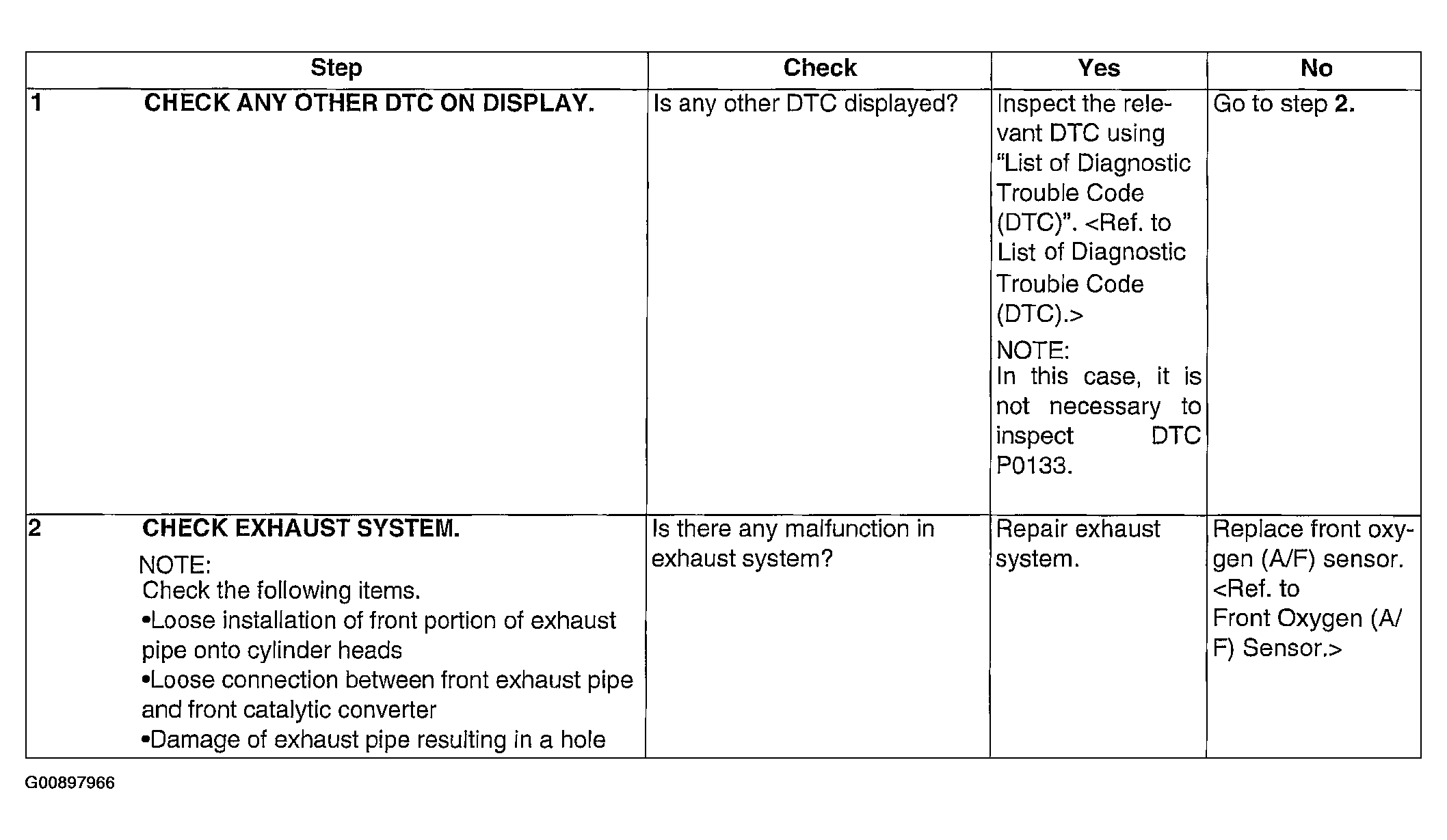

Fig 1: Diagnostic Procedure With Diagnostic Trouble Code Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
