Read Current Data For At.

On the << Main Menu >> display screen, select the {Each System Check} and press the [YES] key.
On the << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
Press the [YES] key after displayed the information of engine type.
On the << Engine Diagnosis >> display screen, select the {Current Data Display & Save} and press the [YES] key.
On the << Data Display Menu >> display screen, select the {Data Display} and press the [YES] key.
Using the scroll key, move the display screen up or down until the desired data is shown.
- A list of the support data is shown in the following table.

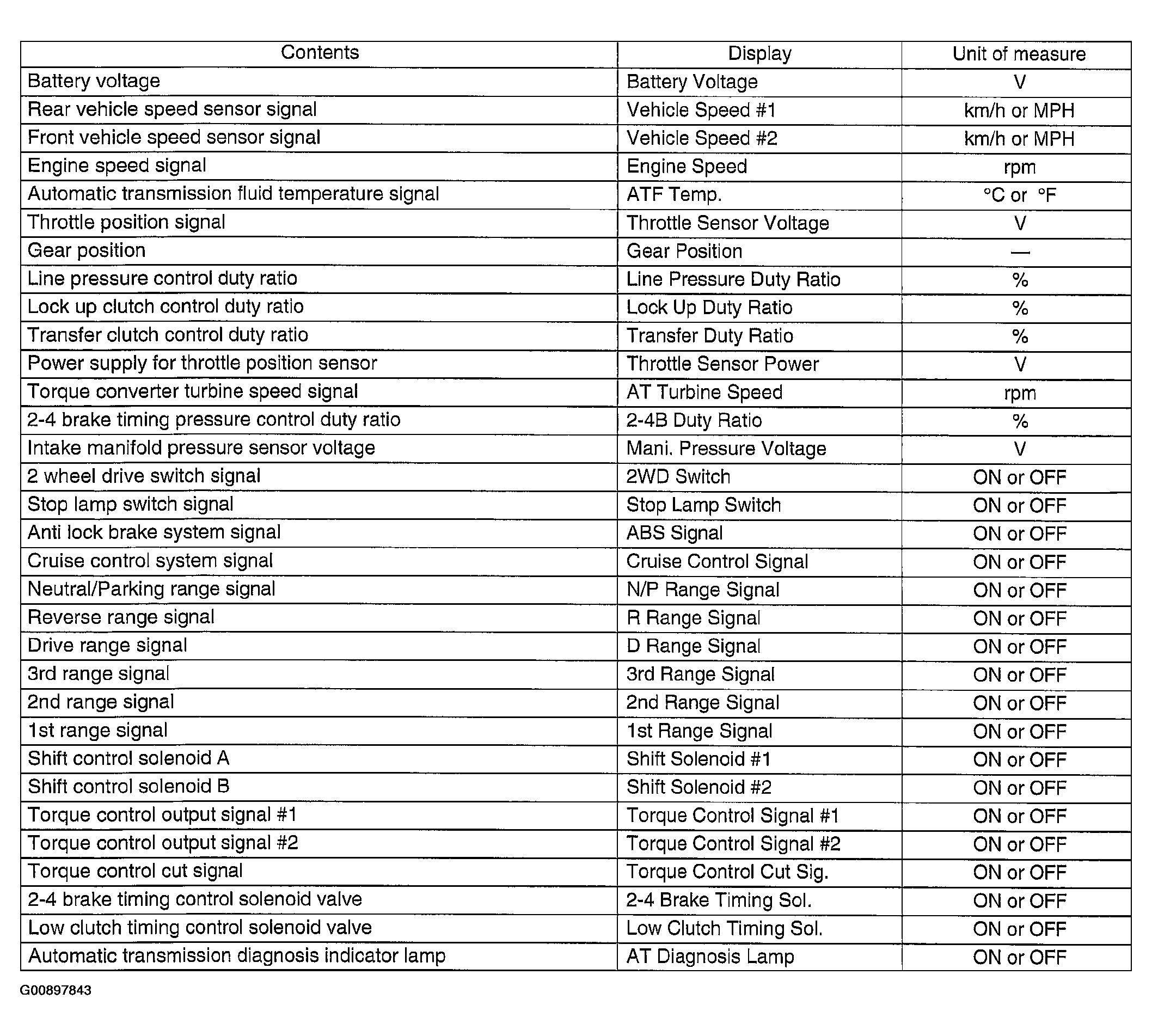

Fig 1: Current Data For Automatic
Courtesy of SUBARU OF AMERICA, INC.

NOTE: For detailed operation procedure, refer to the Subaru Select Monitor Operation Manual.

For select monitor display details, refer to the following.
