Electrical Specification

WARNING: This page is about a different variant/trim than selected.

WITH VDC SYSTEM OR SPORT SHIFT

Fig 1: Identifying Transmission Control Module Terminals
Courtesy of SUBARU OF AMERICA, INC.

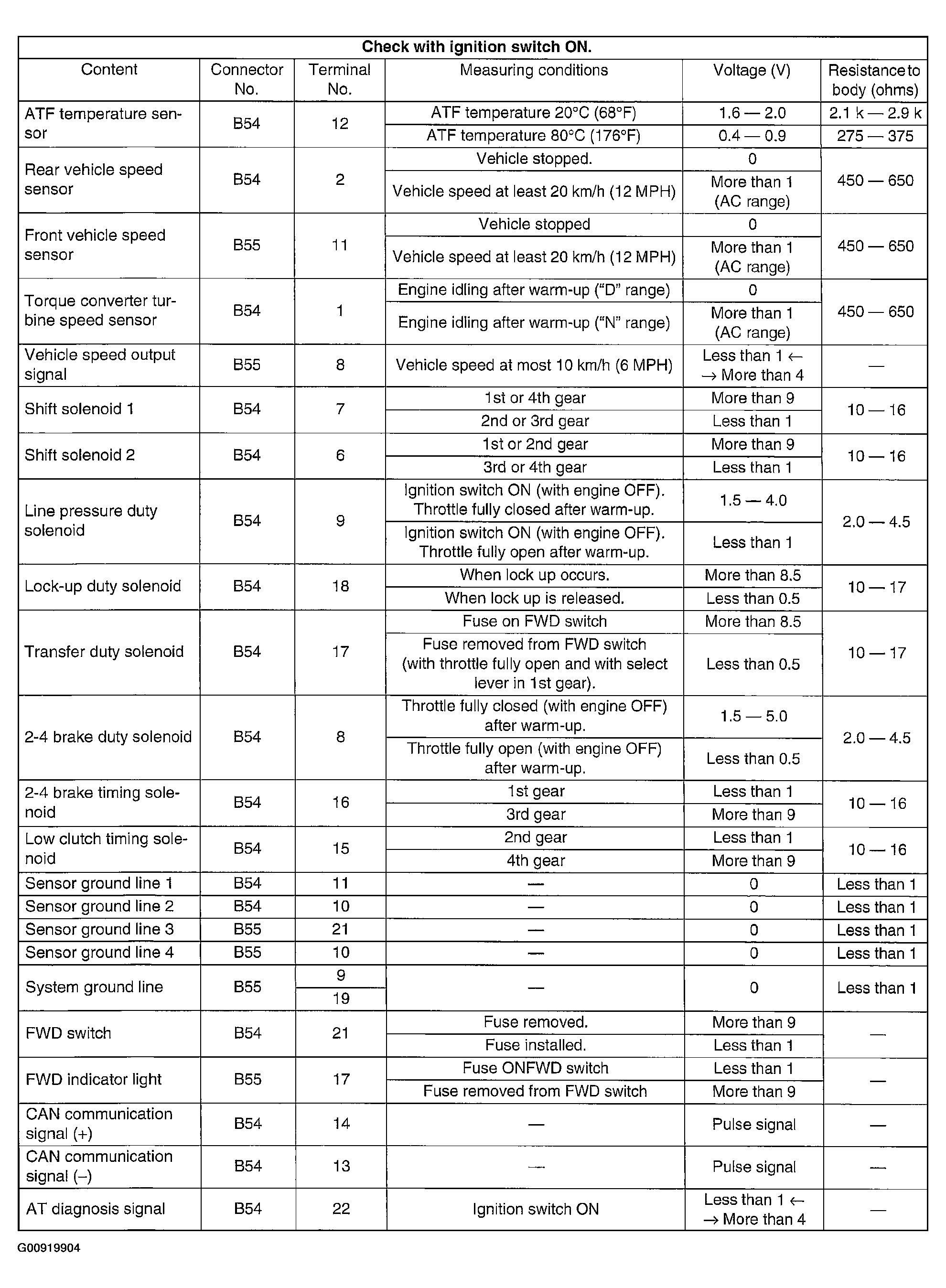

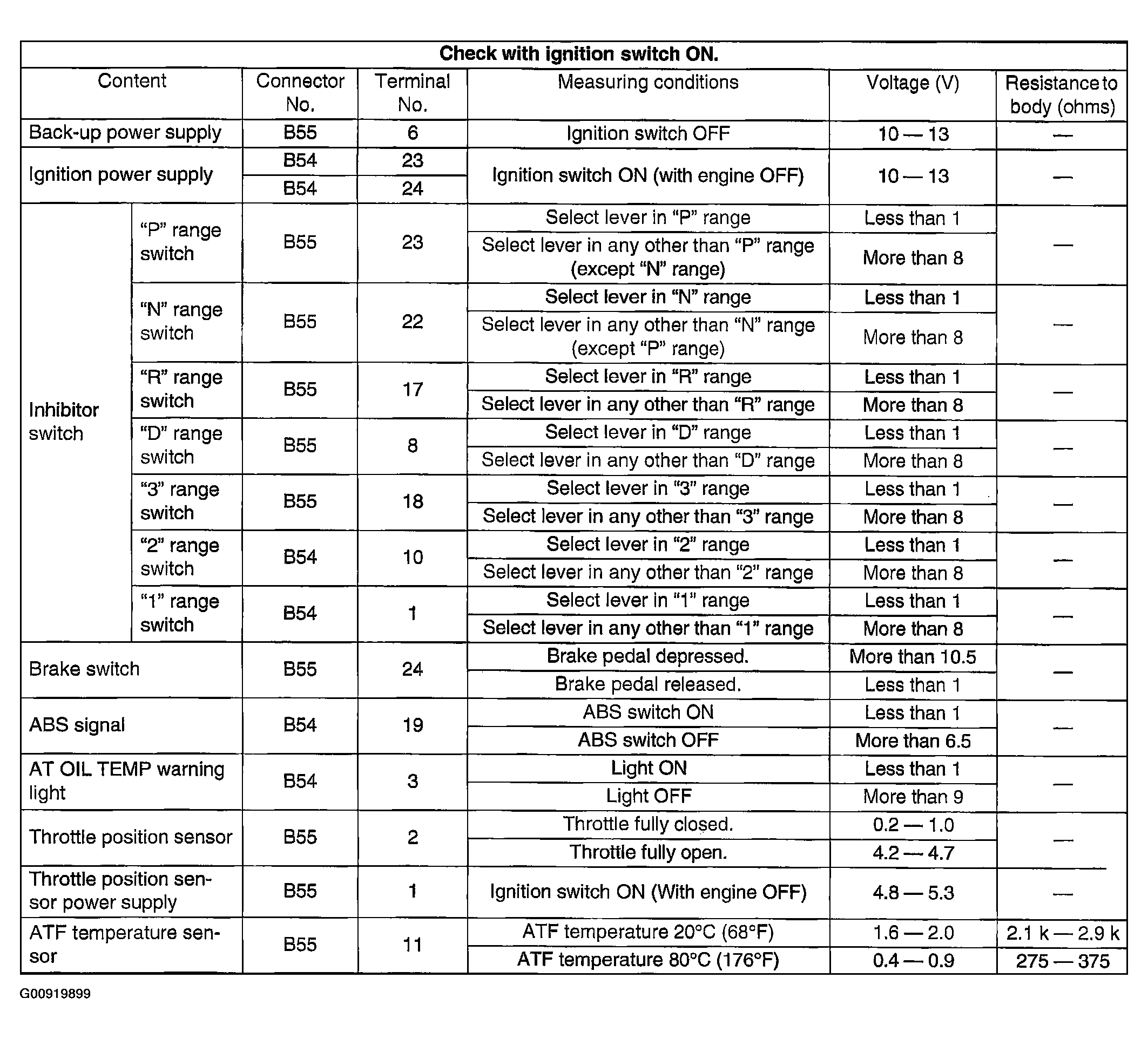

Fig 2: Terminals Specifications (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

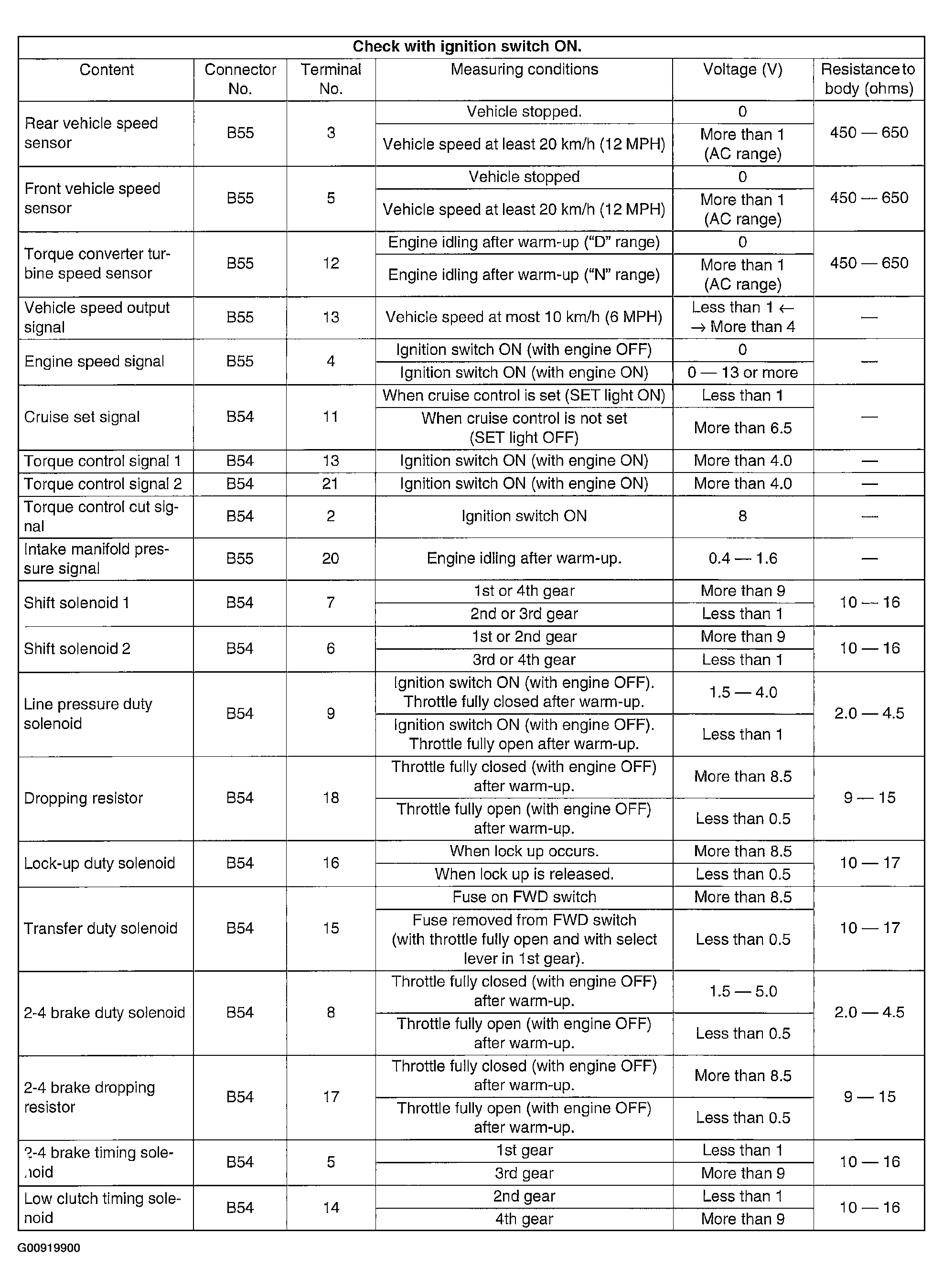

Fig 3: Terminals Specifications (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

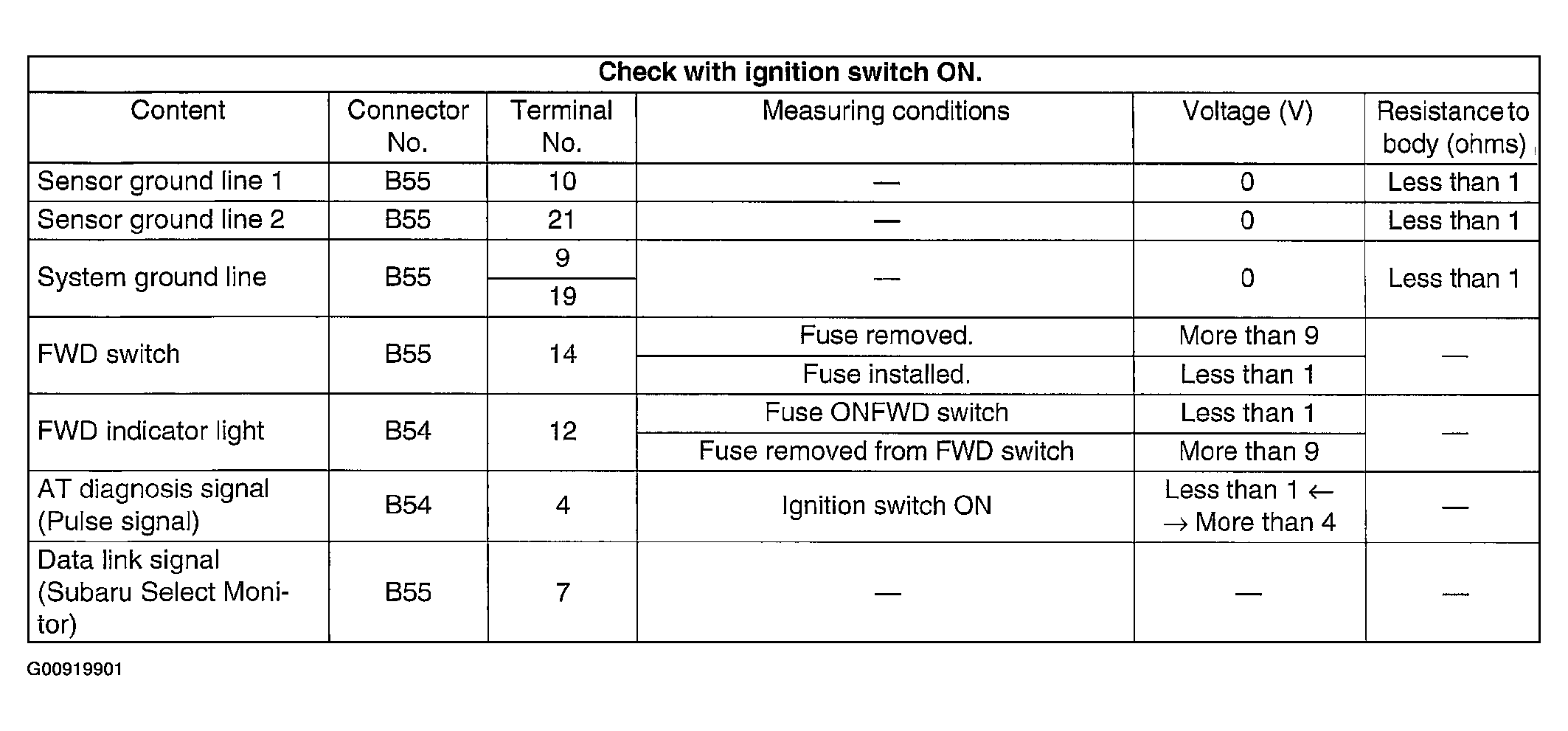

Fig 4: Terminals Specifications (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
WITHOUT VDC SYSTEM AND SPORT SHIFT (EXCEPT U5 MODEL)

Fig 5: Identifying Transmission Control Module Terminals - Without VDC System & Sport Shift
Courtesy of SUBARU OF AMERICA, INC.

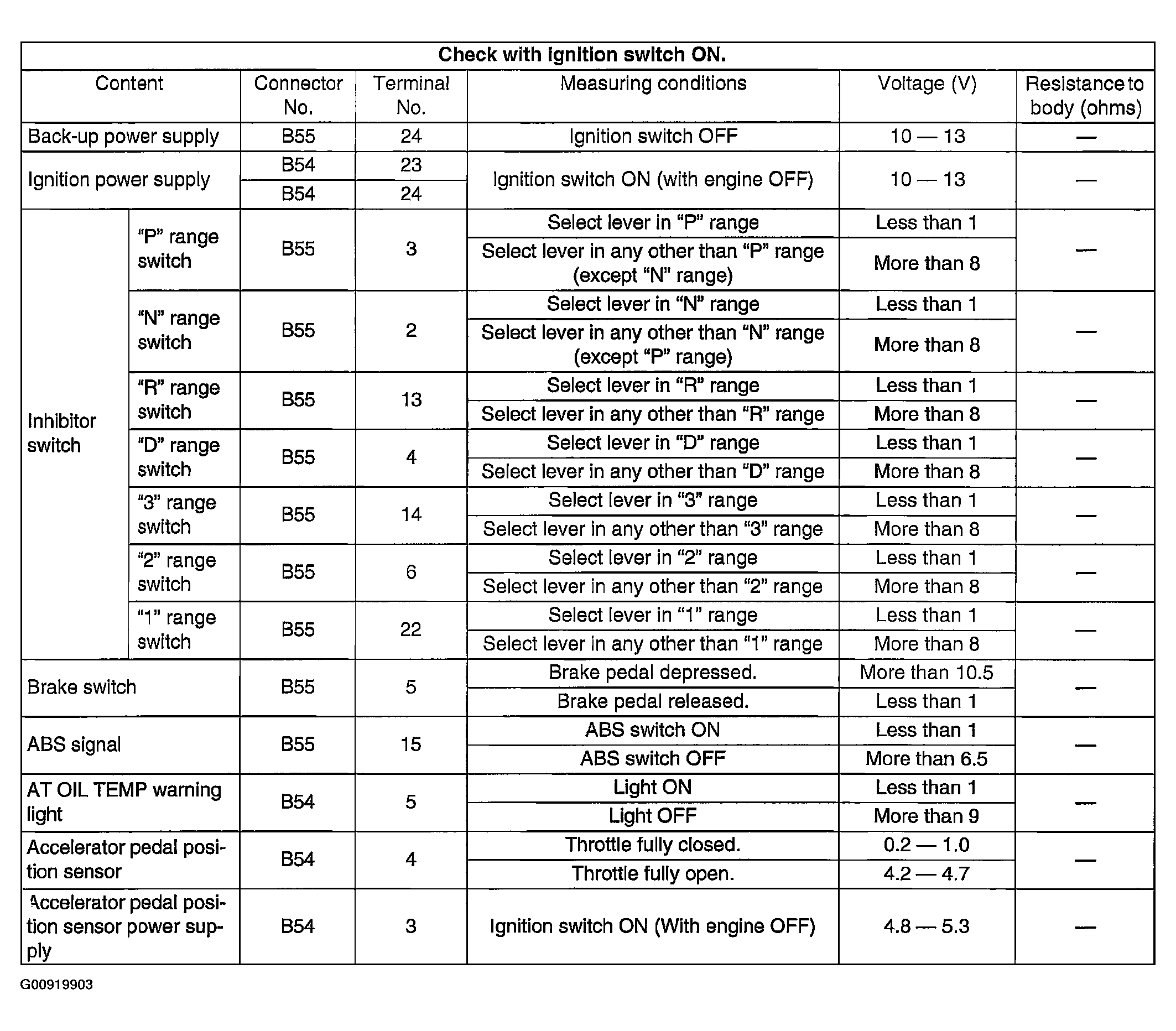

Fig 6: Terminals Specifications (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Terminals Specifications (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

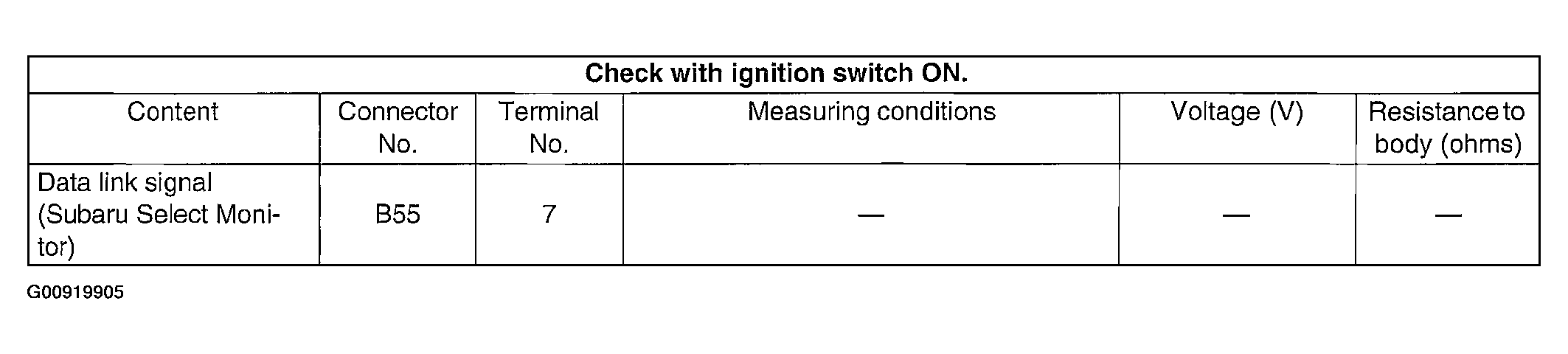

Fig 8: Terminals Specifications (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
WITHOUT SPORT SHIFT (U5 MODEL)

Fig 9: Identifying Transmission Control Module Terminals - Without Sport Shift
Courtesy of SUBARU OF AMERICA, INC.

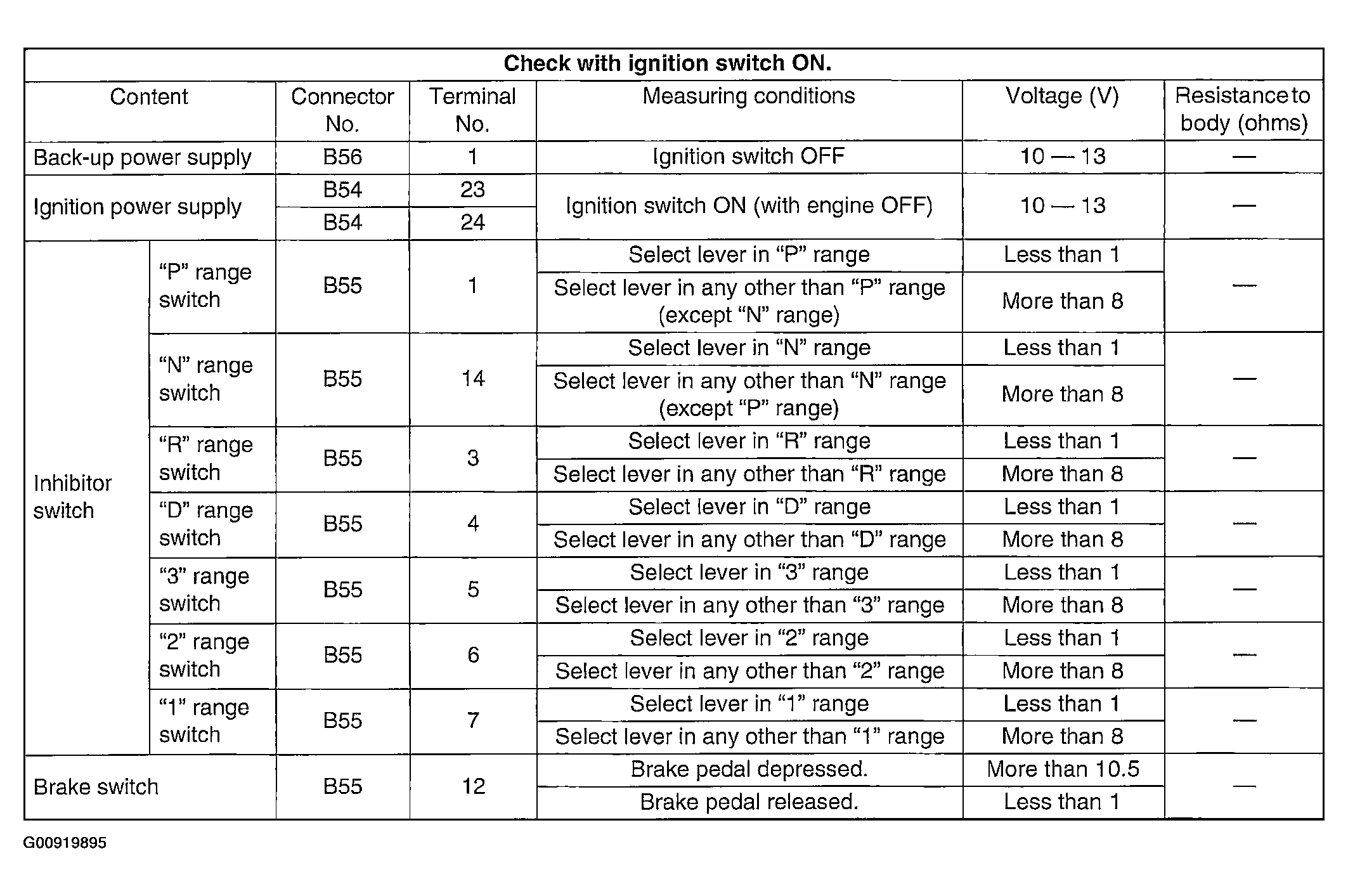

Fig 10: Terminals Specifications (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

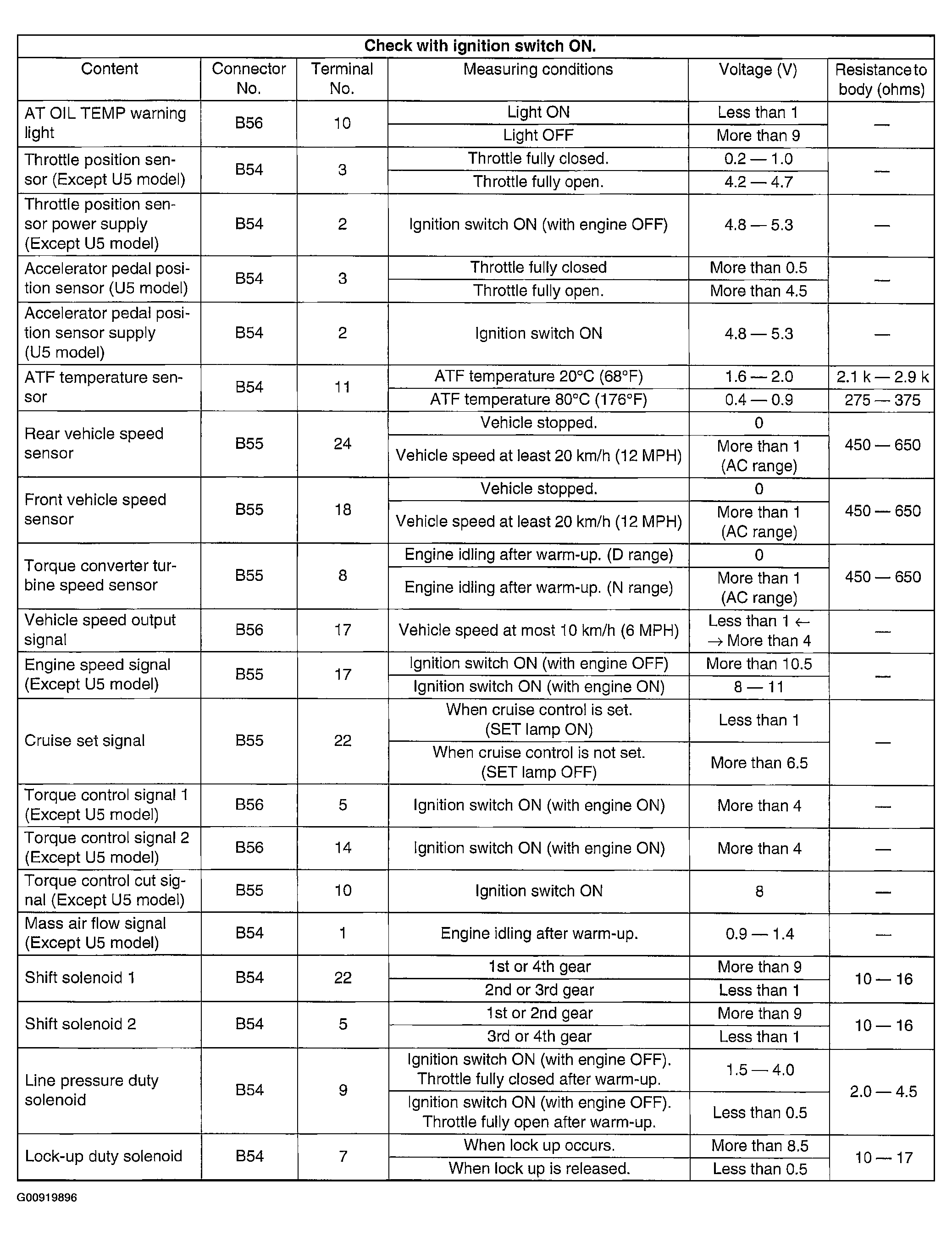

Fig 11: Terminals Specifications (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

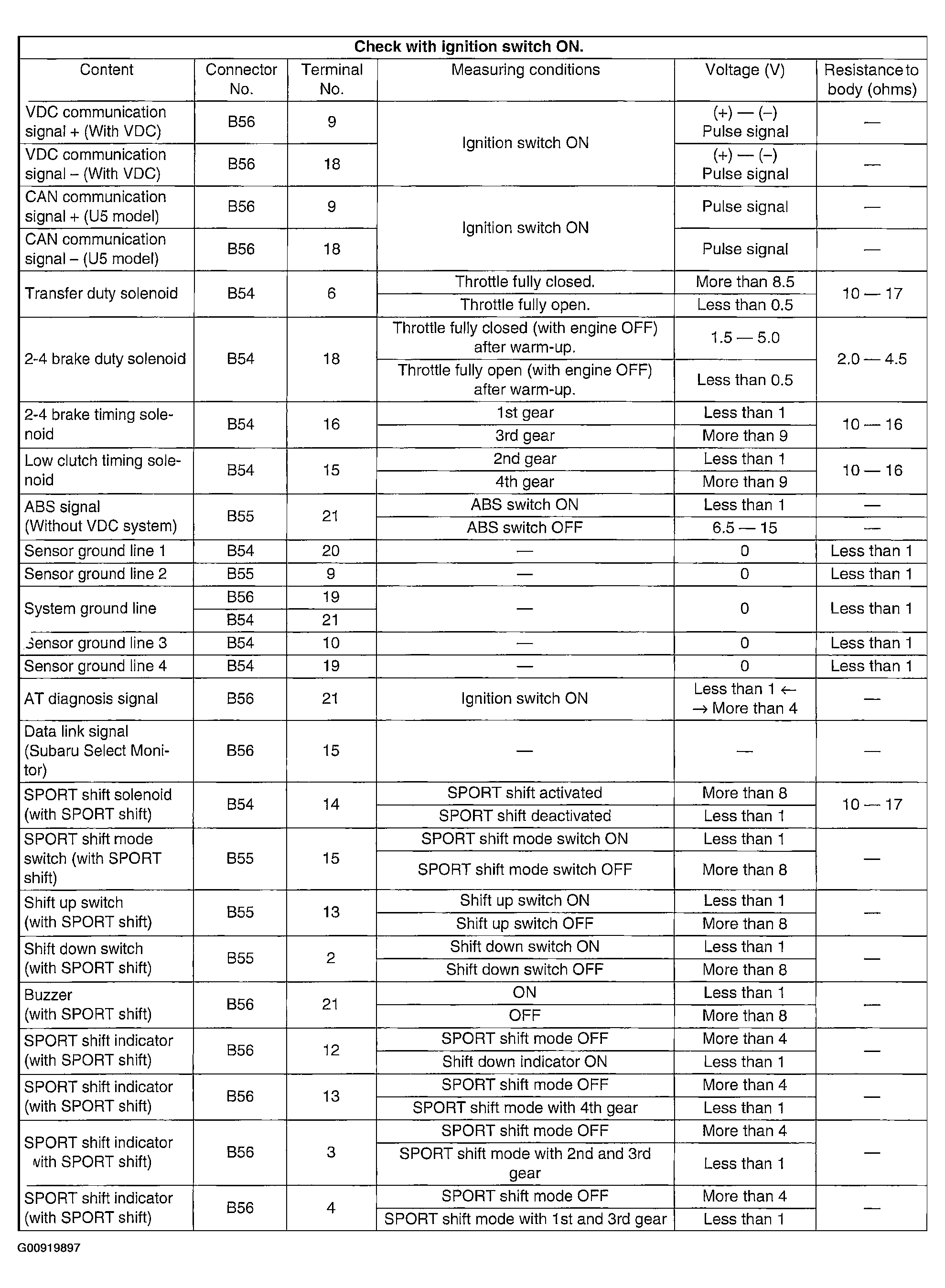

Fig 12: Terminals Specifications (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
