Keyless Entry

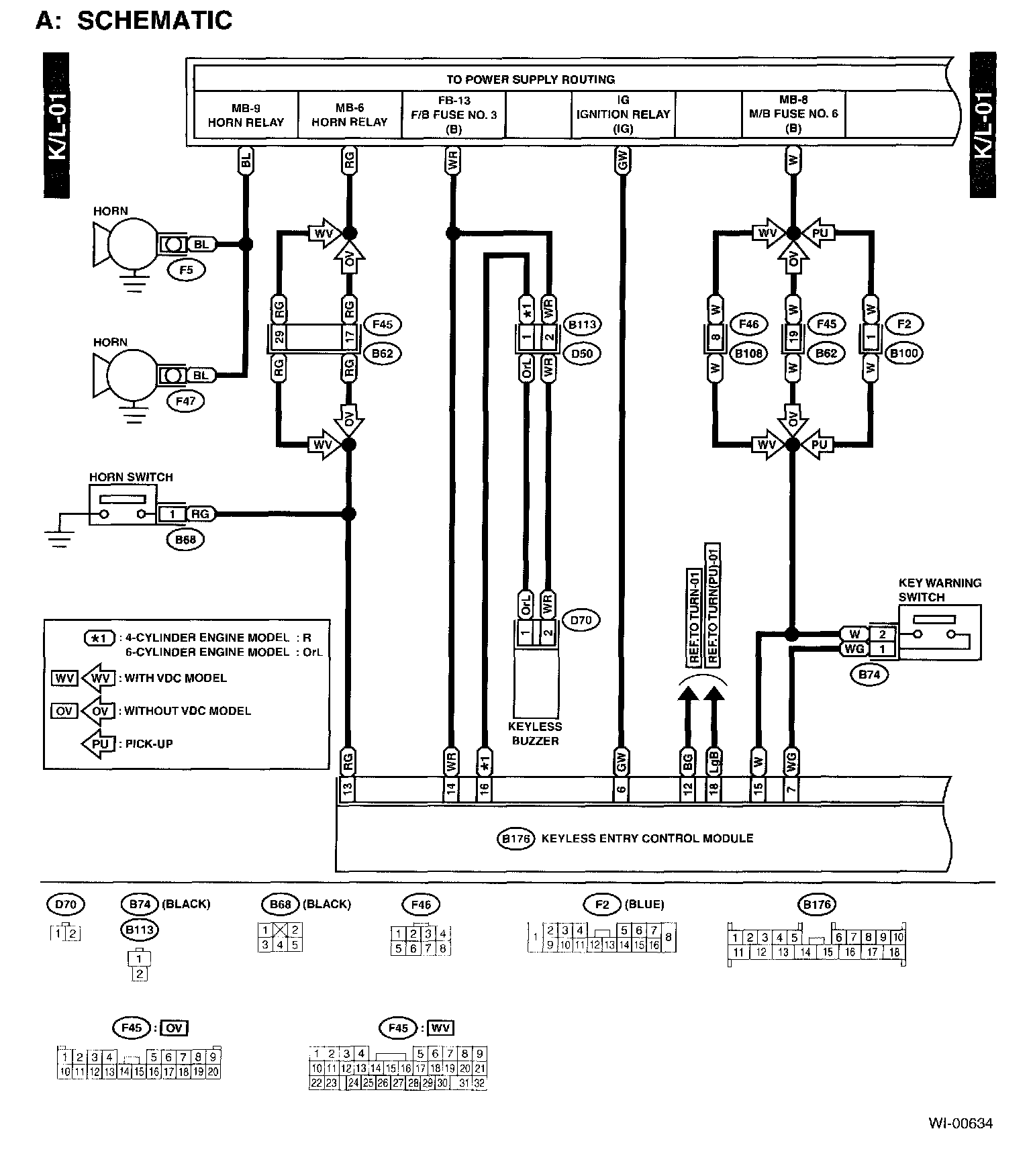

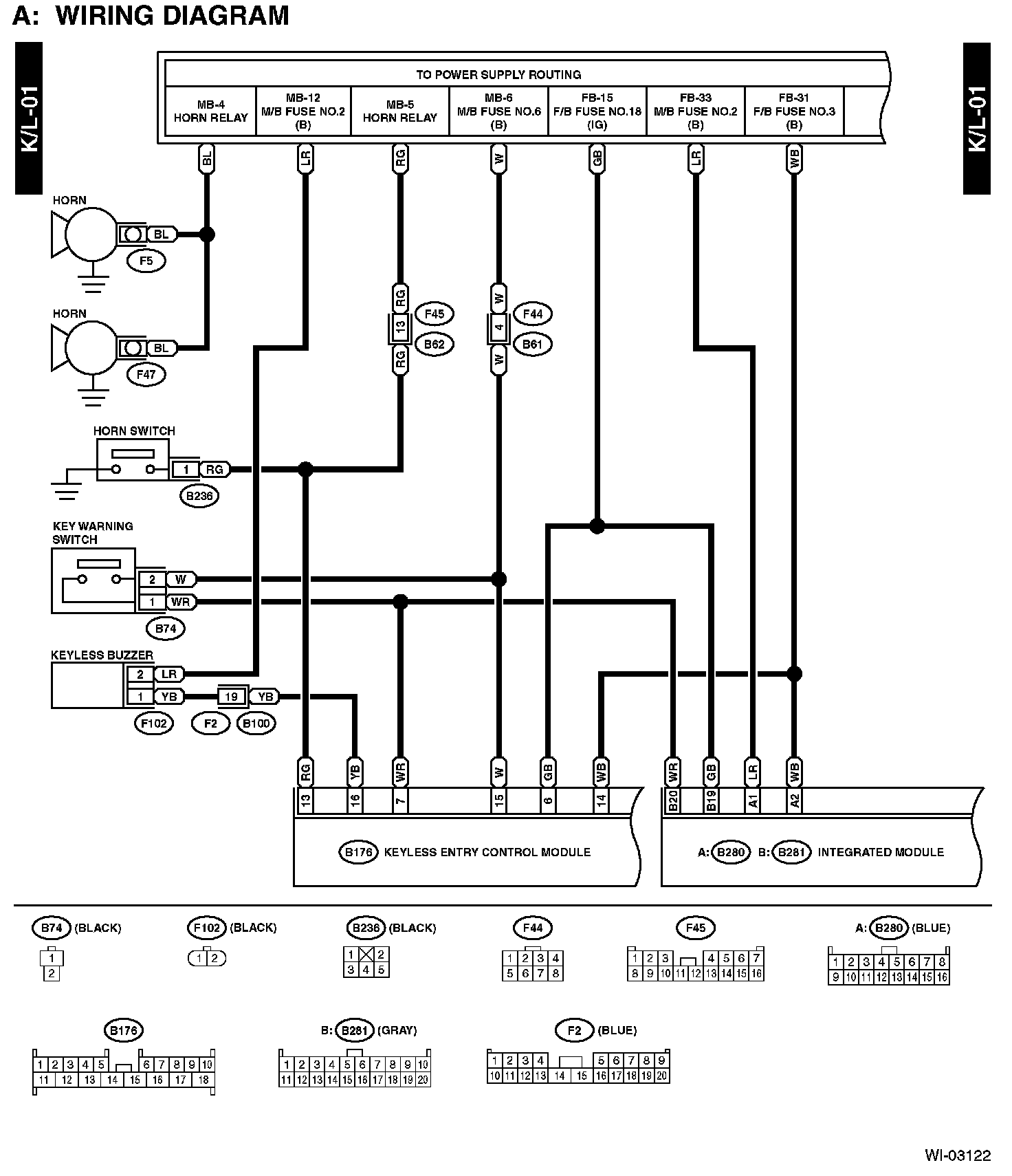

K/L-01:

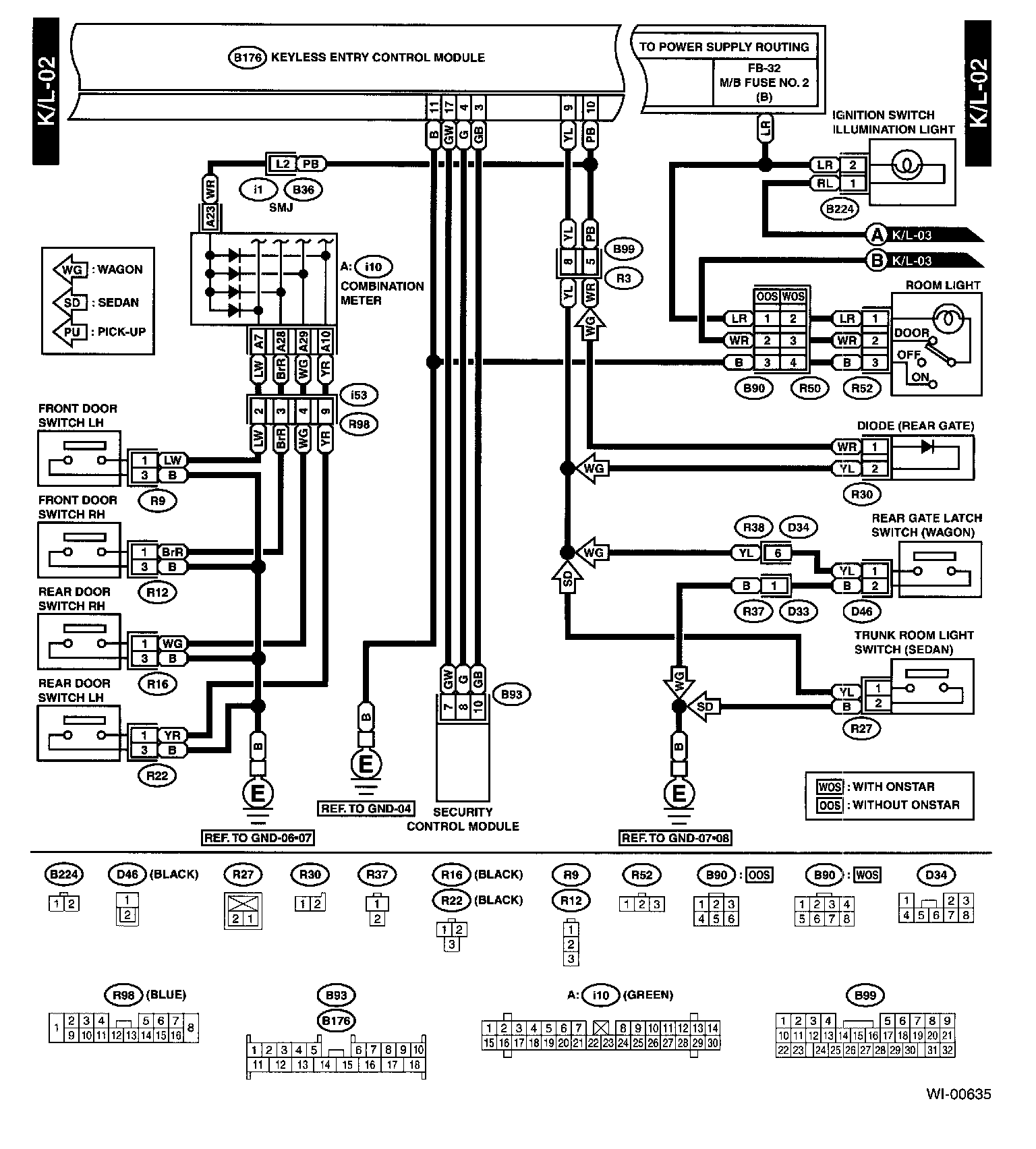

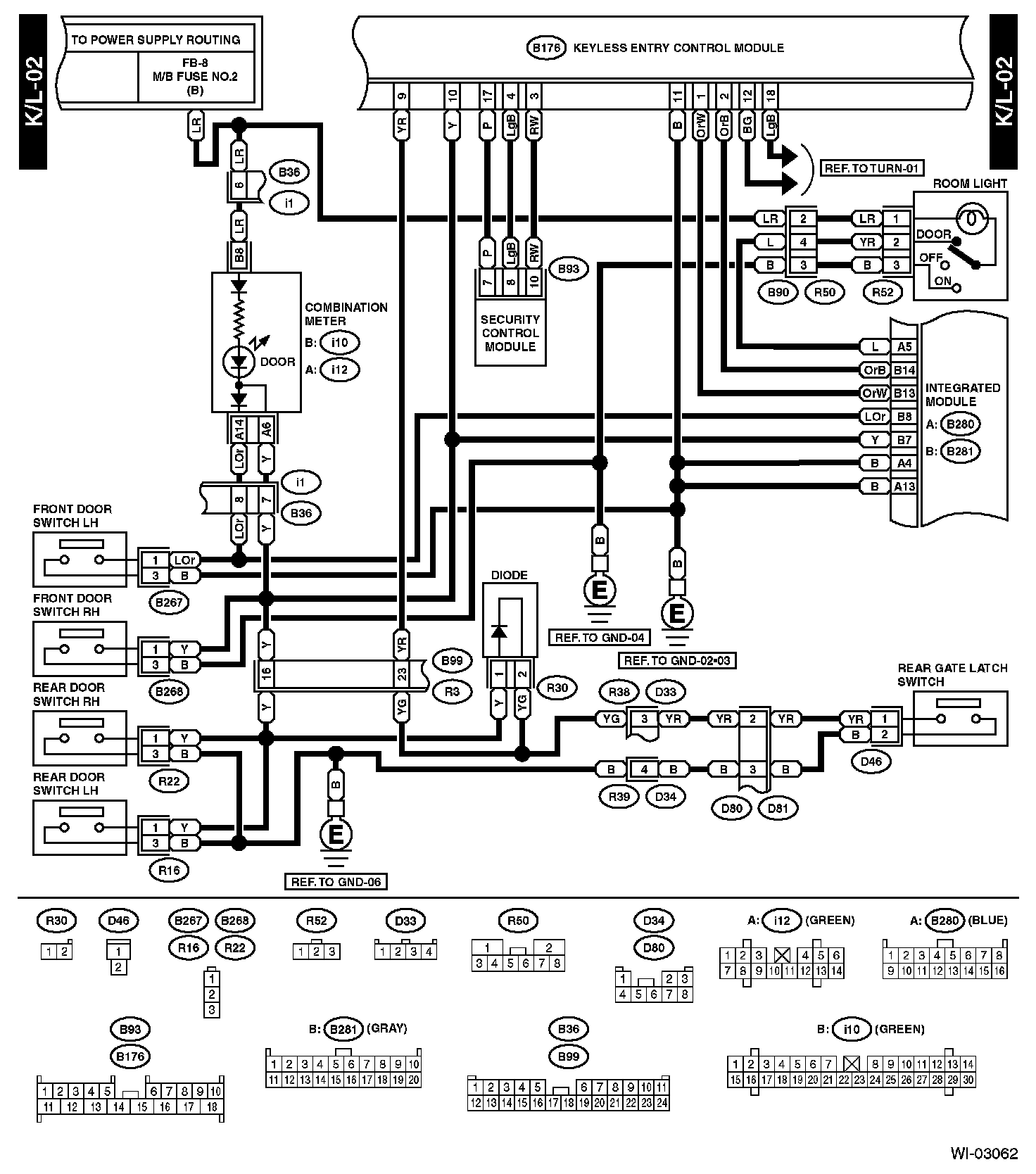

K/L-02:

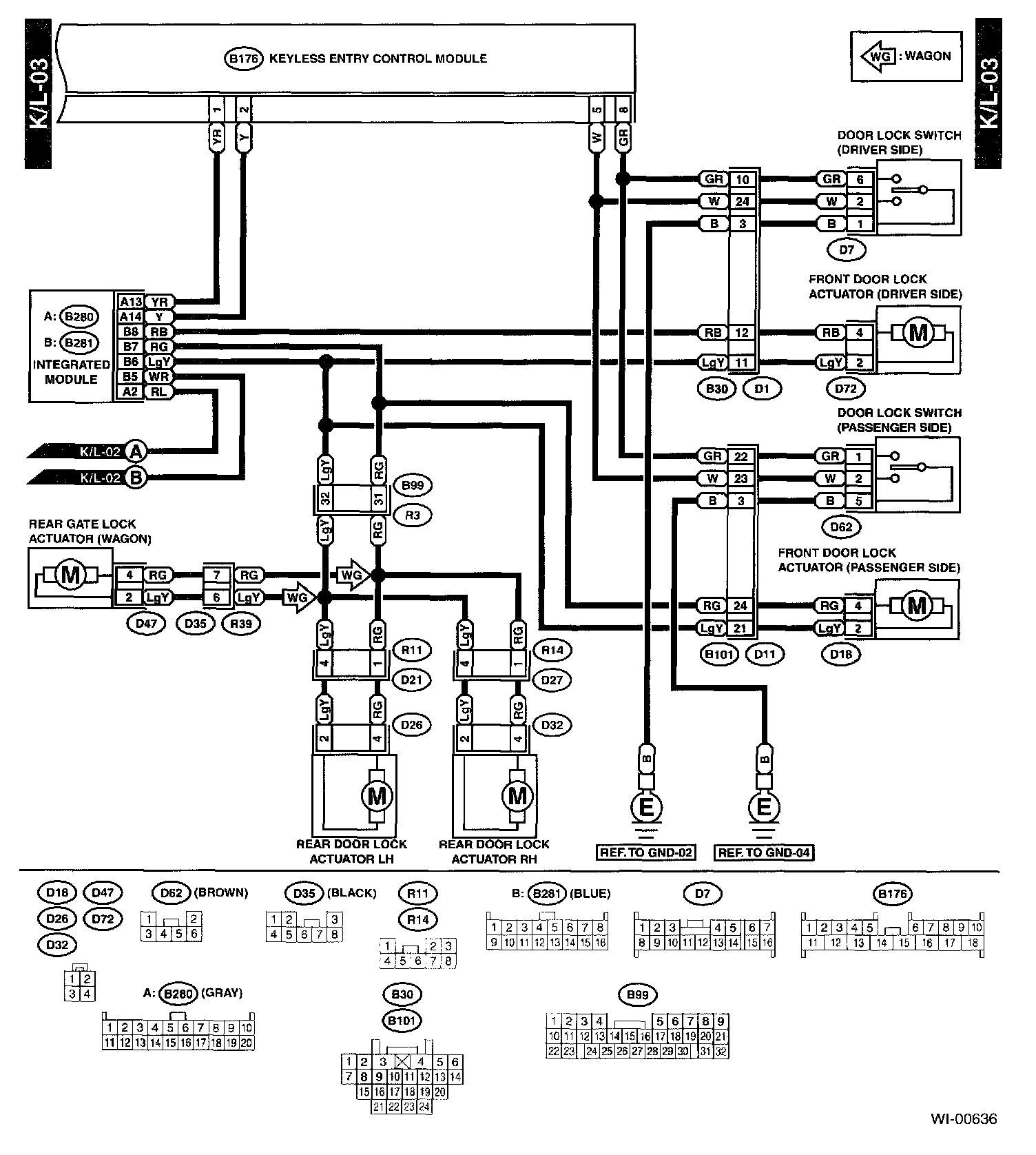

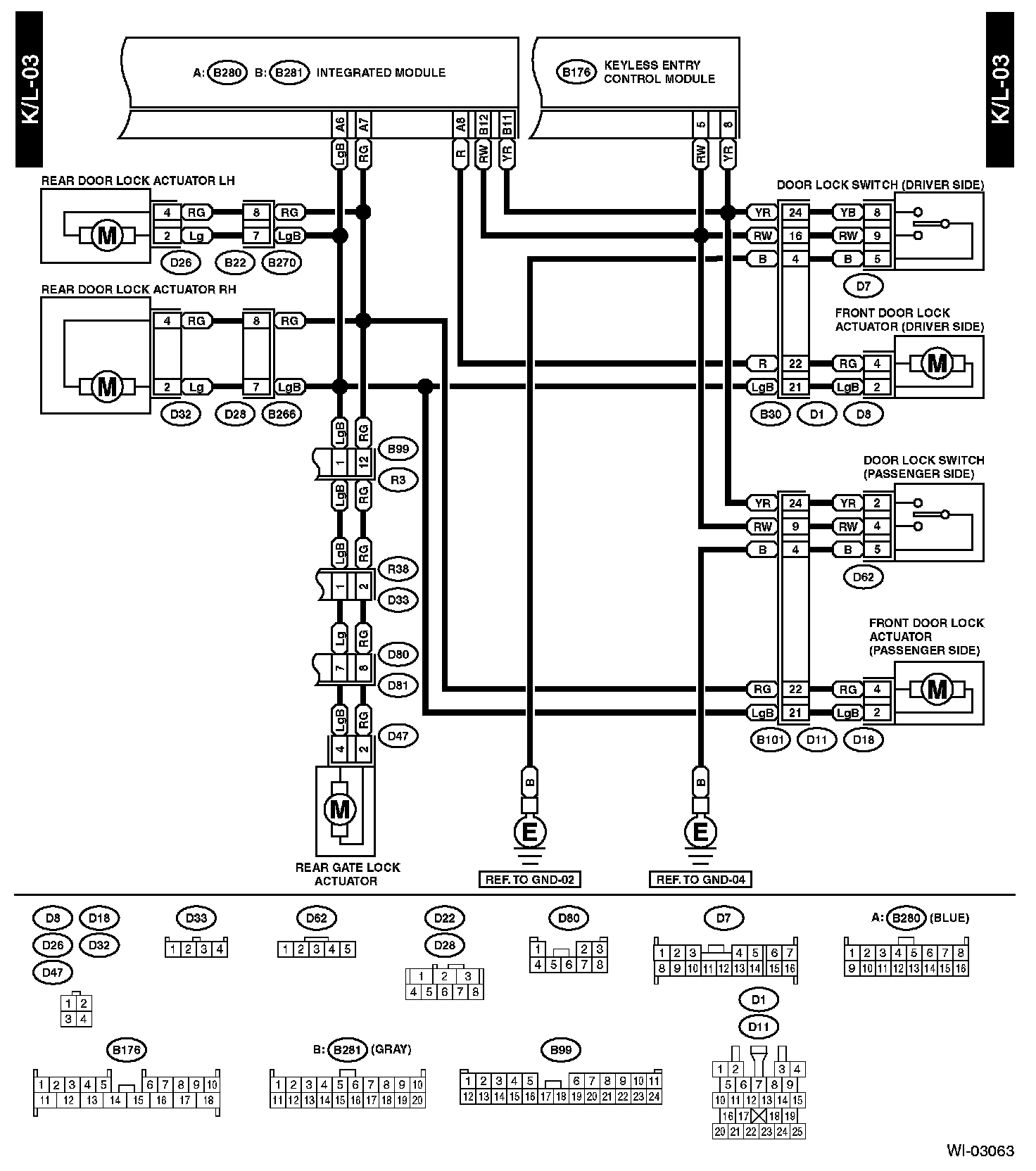

K/L-03:

Diagrams: Other diagrams referred to by name within these diagrams (i.e. "REF. TO GND-01", etc) can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
