Diagnostic Procedures:

Fig 1: DTC P0852 - Neutral Position Switch Input Circuit High Diagnostic Chart (AT Model - 1 Of 2)
G00996420Courtesy of SUBARU OF AMERICA, INC.

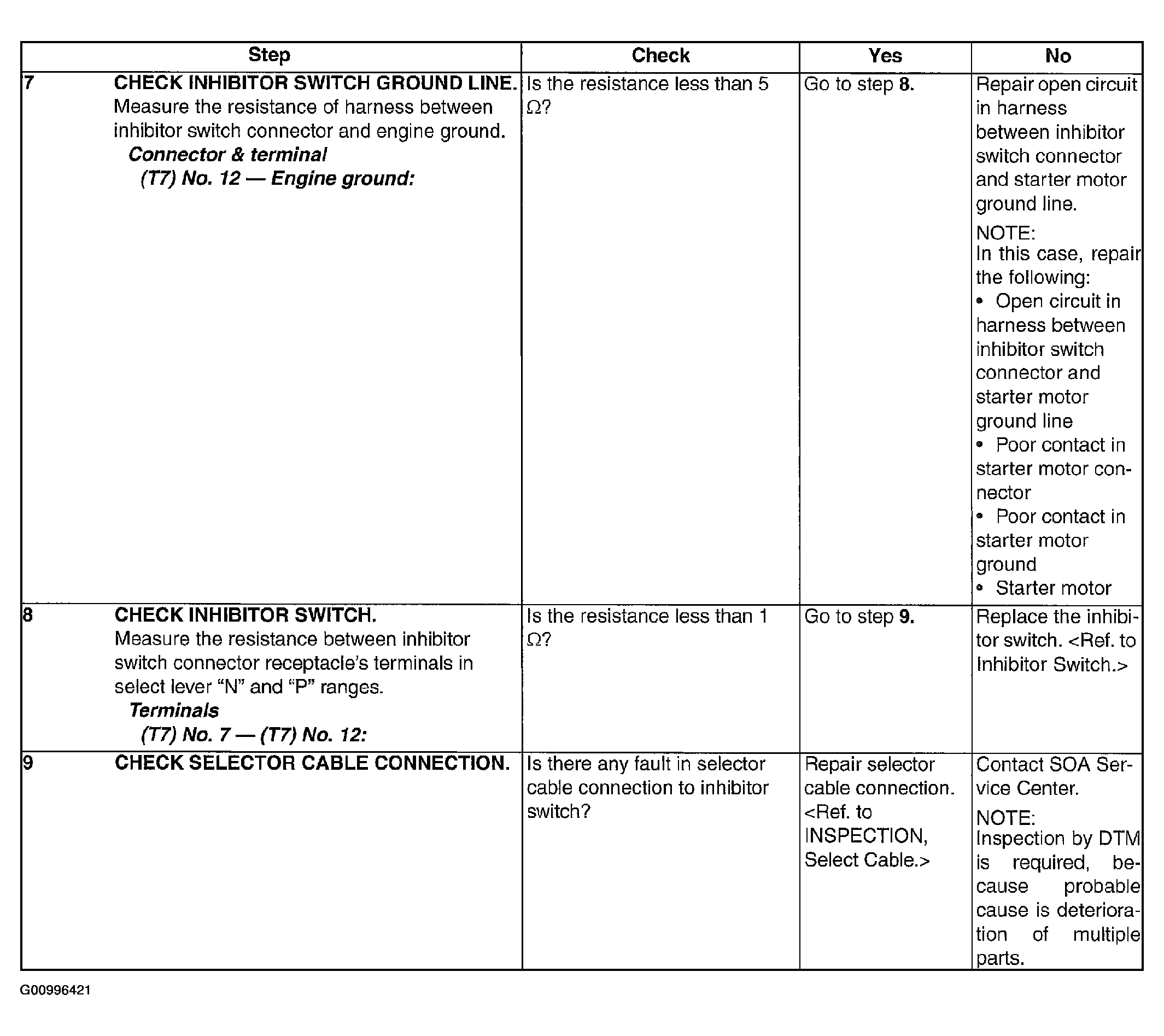

Fig 2: DTC P0852 - Neutral Position Switch Input Circuit High Diagnostic Chart (AT Model - 2 Of 2)
G00996421Courtesy of SUBARU OF AMERICA, INC.
