DTC P1137: O2 Sensor Circuit (LAMDA=1) (Bank 1 Sensor 1)
>>
Diagnostic Procedures:
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedures:

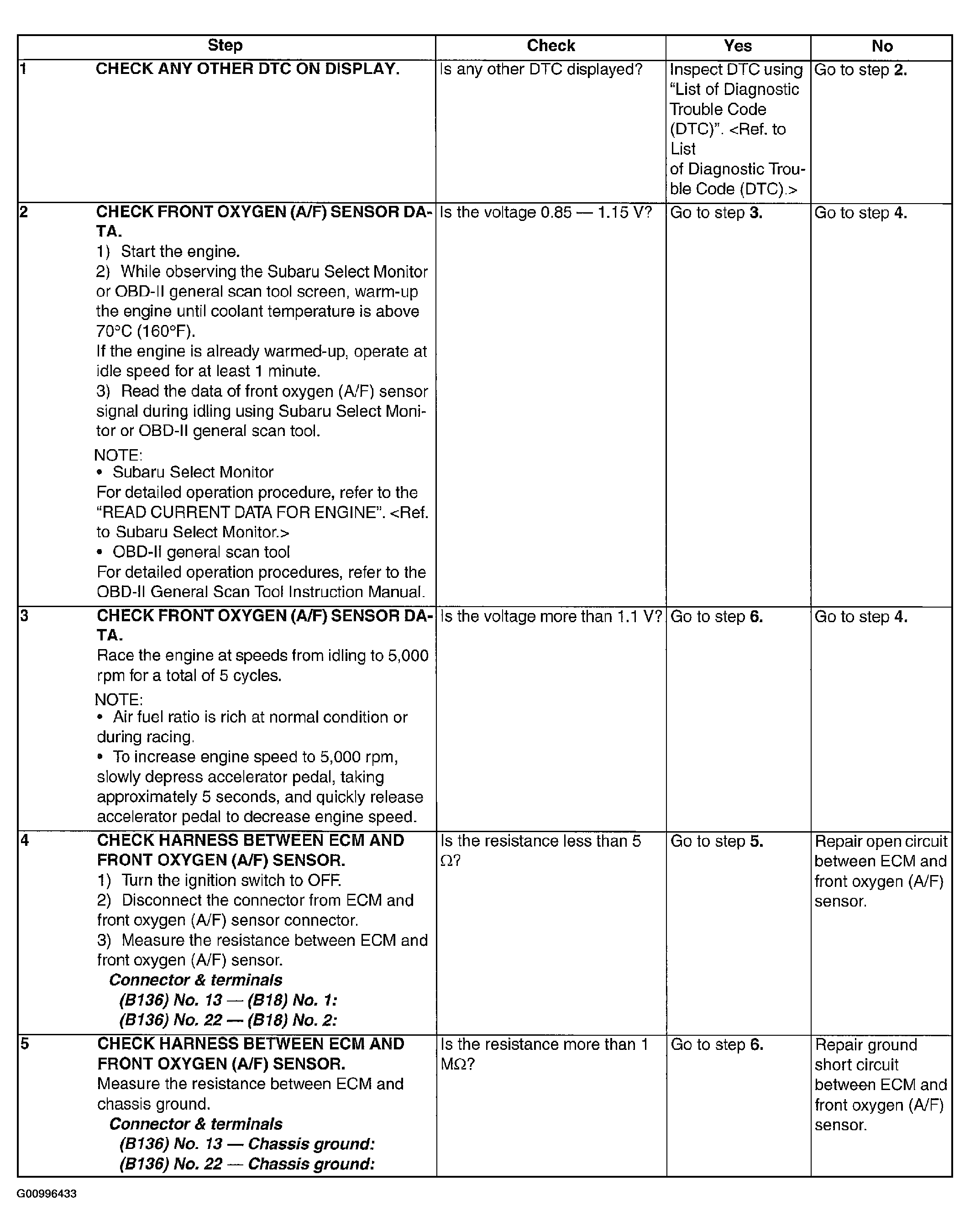

Fig 1: DTC P1137 - O
2
Sensor Circuit (Lamda=1) (Bank1 Sensor1) Diagnostic Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

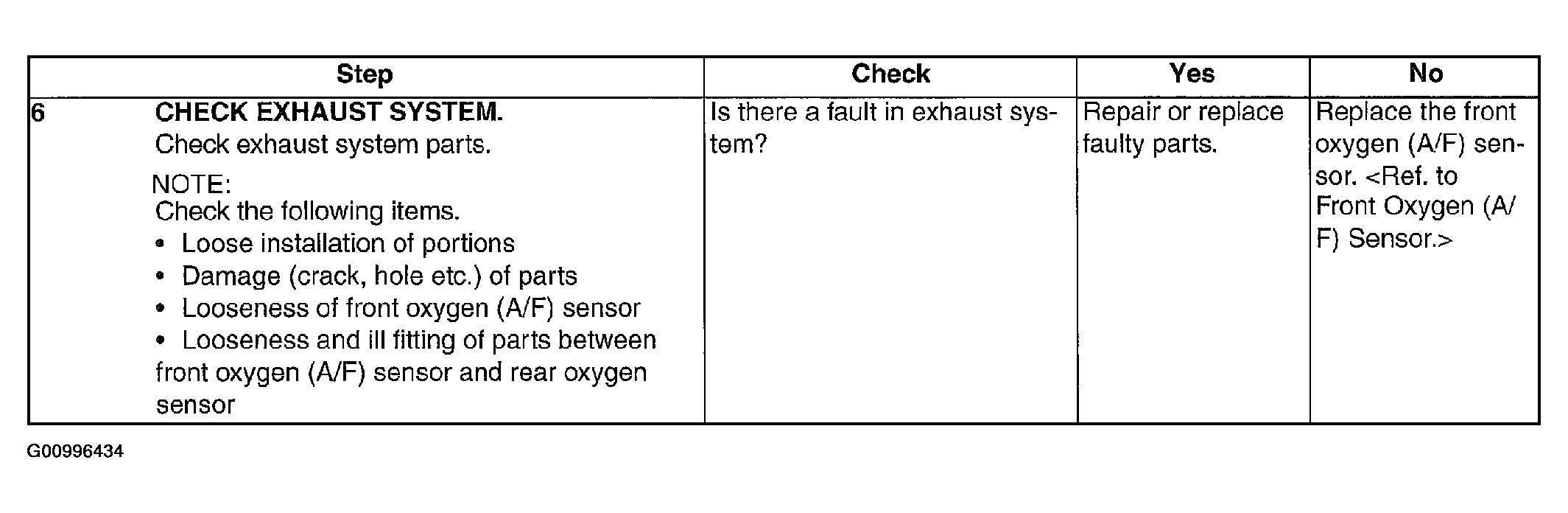

Fig 2: DTC P1137 - O
2
Sensor Circuit (Lamda=1) (Bank1 Sensor1) Diagnostic Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
