Front Turn Signal Light Bulb: Removal

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlight assembly. < Ref. to REMOVAL , Headlight Assembly. >
  2. Turn the socket and remove the bulb.

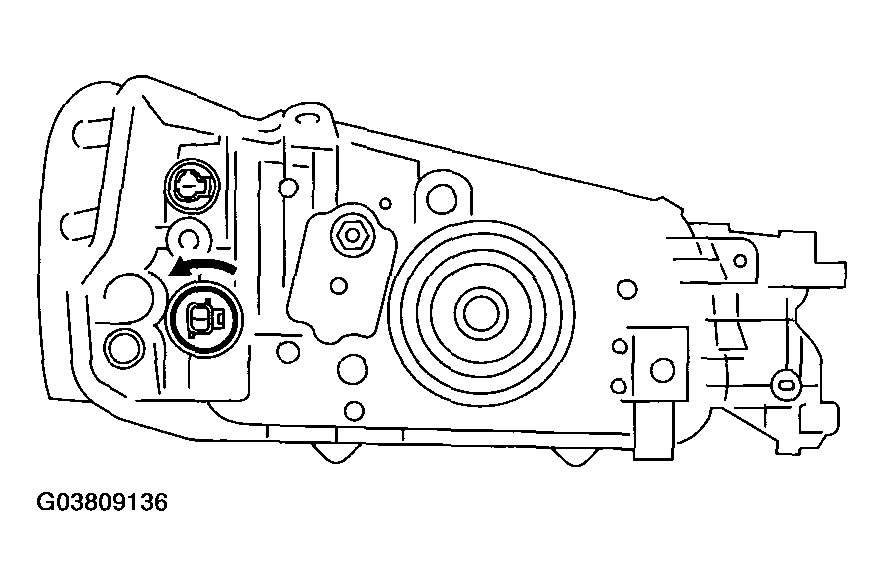

    Fig 1: Turning Socket And Removing Bulb
    G03809136Courtesy of SUBARU OF AMERICA, INC.
