Diagnostic Procedures:

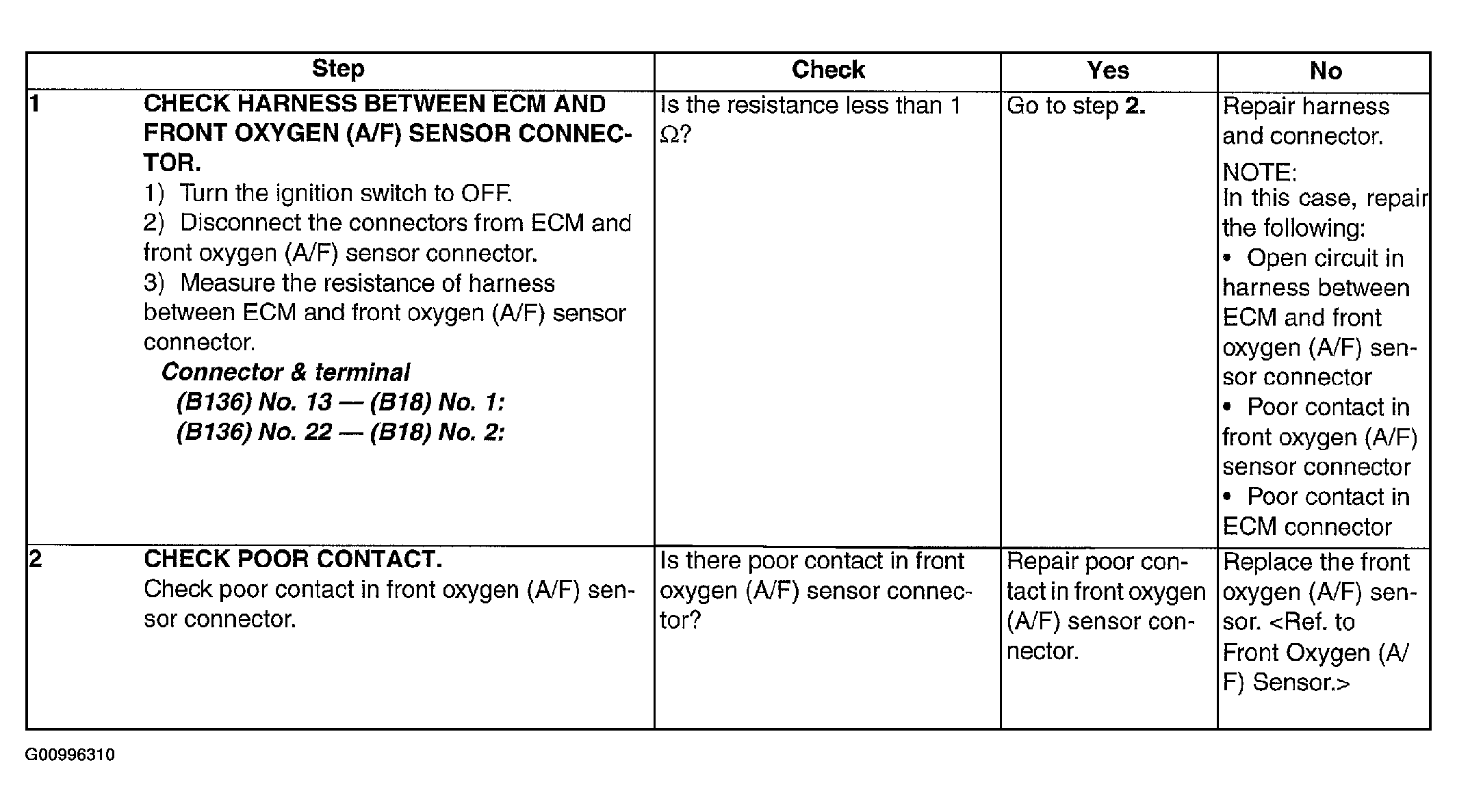

Fig 1: DTC P0134 - Sensor Circuit No Activity Detected (Bank 1 Sensor 1) Diagnostic Chart
G00996310Courtesy of SUBARU OF AMERICA, INC.
