ATF Charger Pipe: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air cleaner case. (Non-turbo model)

    < Ref. to REMOVAL , Air Cleaner Case . >

  2. Remove intercooler. (Turbo model)

    < Ref. to REMOVAL , Intercooler . >

  3. Remove the ATF charger pipe, and remove the O-ring from the flange face.

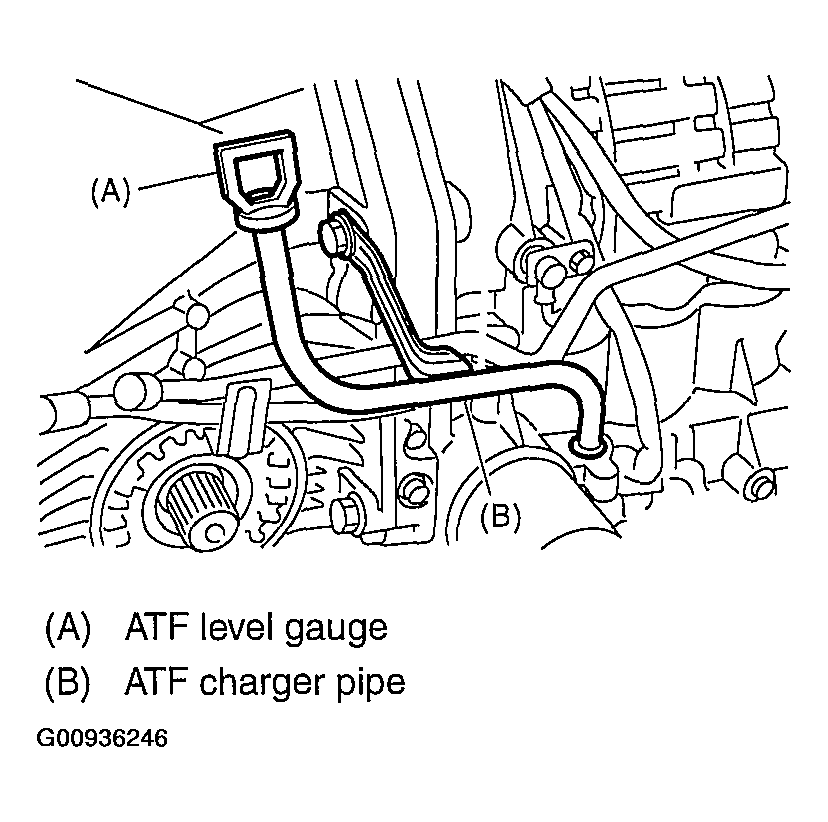

    Fig 1: Identifying ATF Charger Pipe
    G00936246Courtesy of SUBARU OF AMERICA, INC.
