Fixed Glass

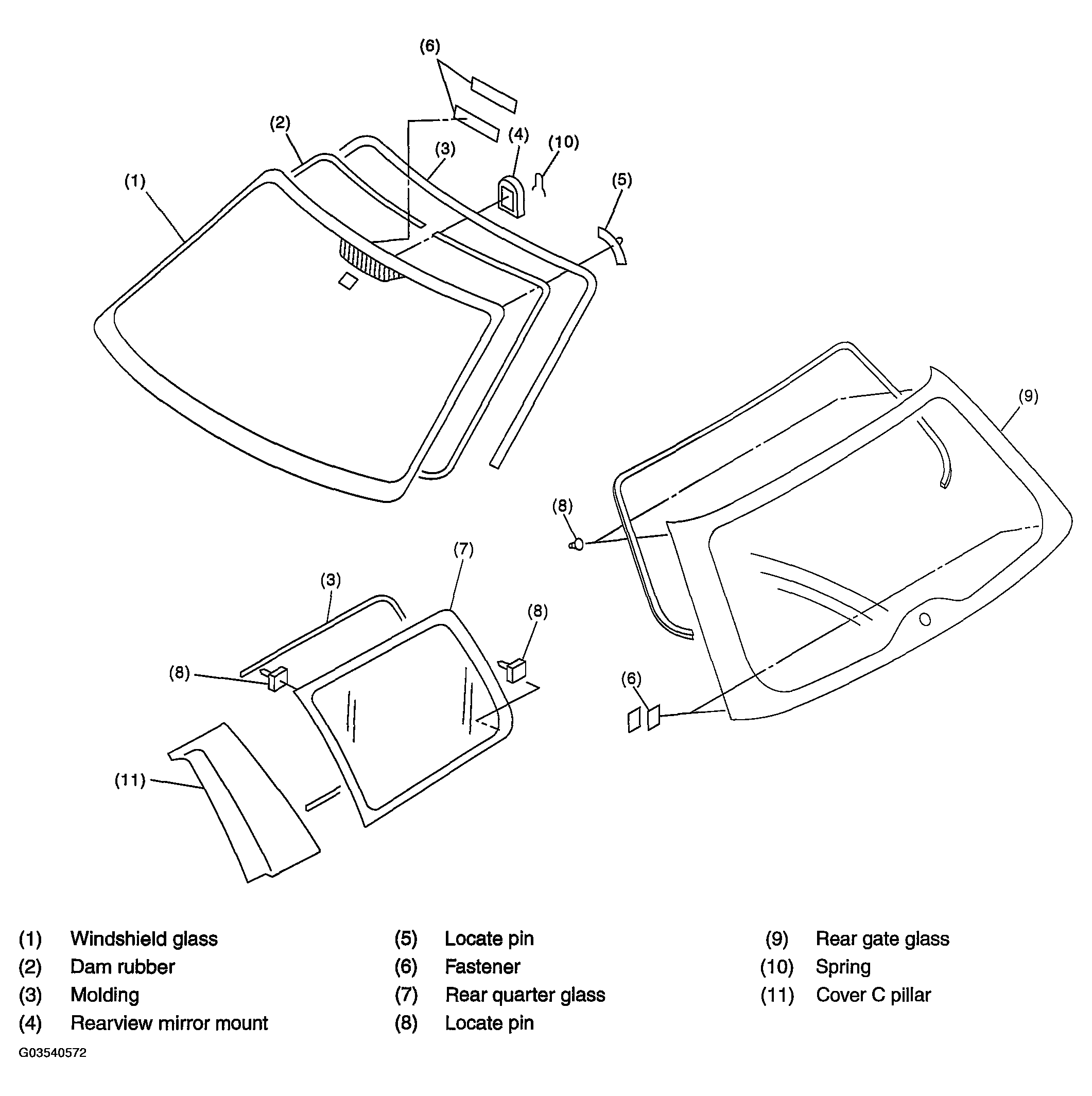

Fig 1: Identifying Components Of Fixed Glass

G03540572

Courtesy of SUBARU OF AMERICA, INC.
