Main Switch

  1. Disconnect the ground cable from battery.
  2. Using a flat tip screwdriver, remove the screw cover.

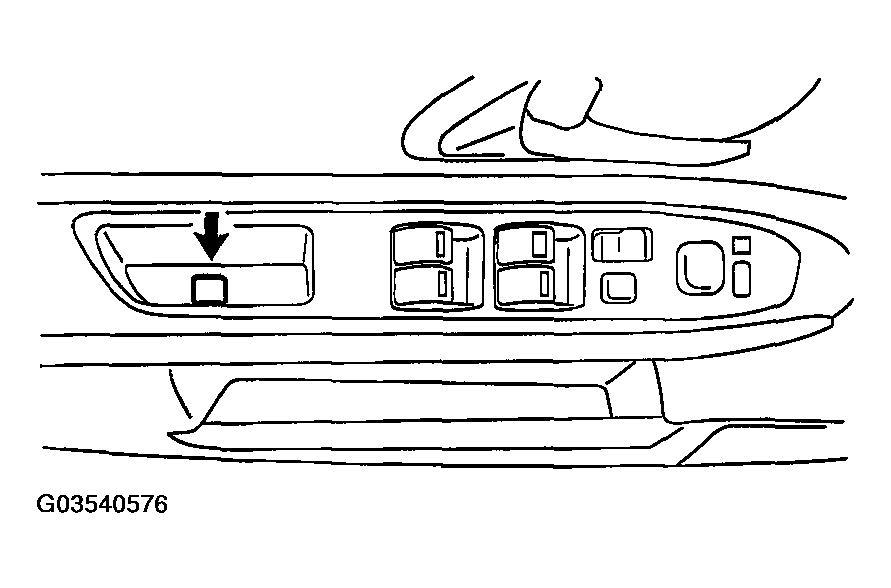

    Fig 1: Identifying Screw Cover
    G03540576Courtesy of SUBARU OF AMERICA, INC.
  3. Loosen the screw to remove the power window main switch.
    Fig 2: Identifying Power Window Main Switch Screw
    G03540577Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector.
