Wiring Diagram:

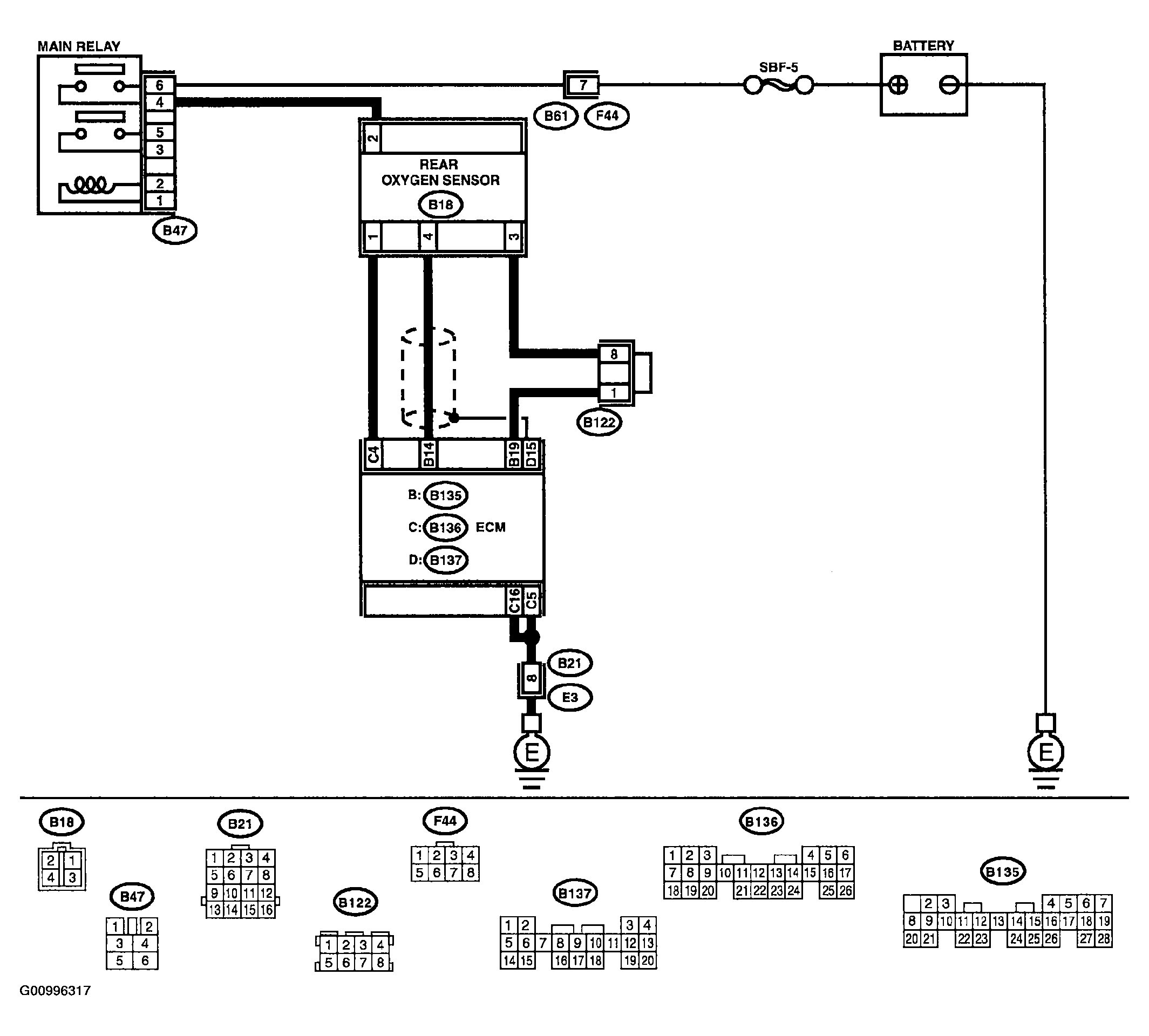

Fig 1: DTC P0139 - O2 Sensor Circuit Slow Response (Bank 1 Sensor 2) Wiring Diagram
G00996317Courtesy of SUBARU OF AMERICA, INC.
