Diagnostic Procedures:

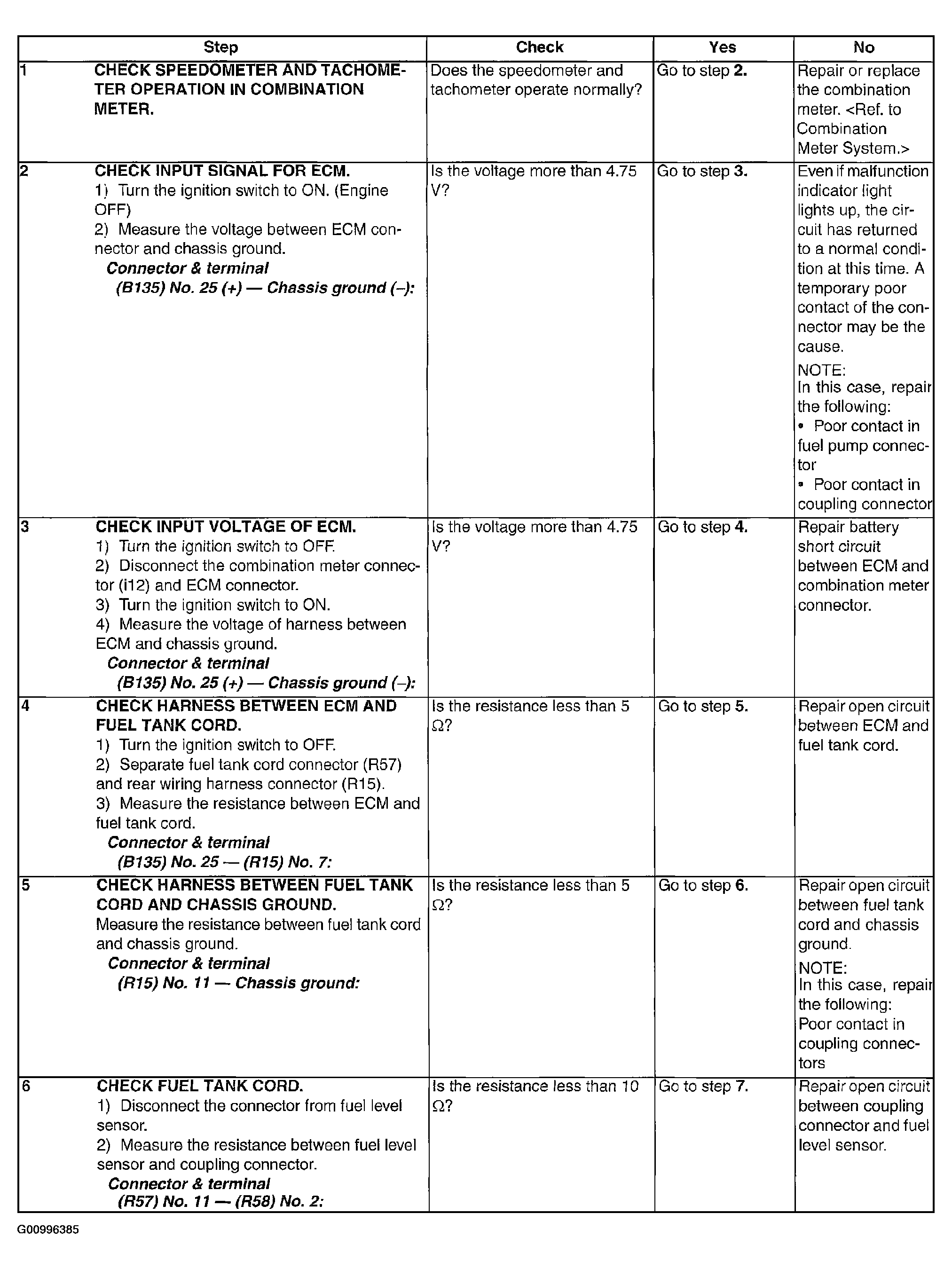

Fig 1: DTC P0463 - Fuel Level Sensor Circuit High Input Diagnostic Chart (1 Of 2)
G00996385Courtesy of SUBARU OF AMERICA, INC.

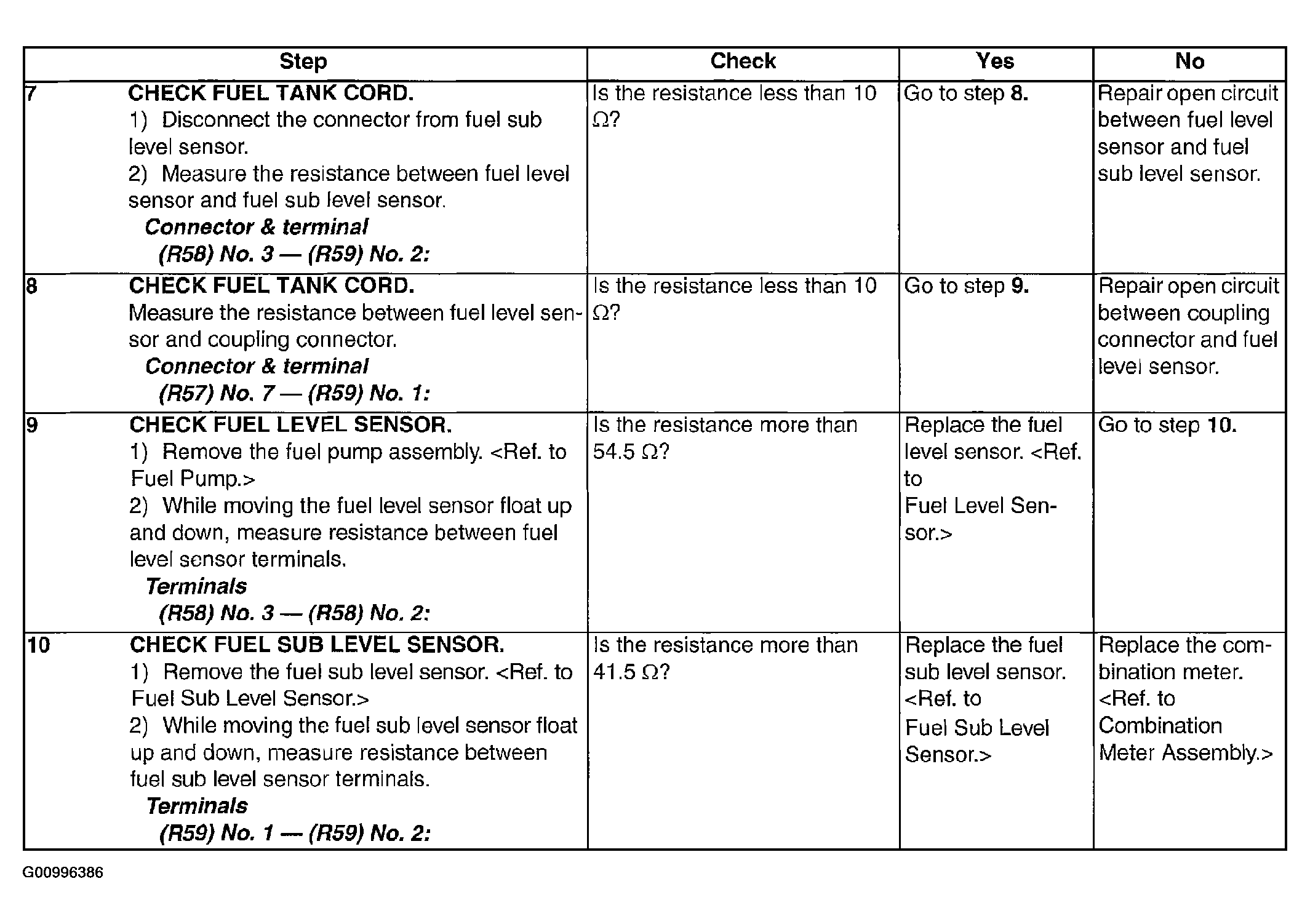

Fig 2: DTC P0463 - Fuel Level Sensor Circuit High Input Diagnostic Chart (2 Of 2)
G00996386Courtesy of SUBARU OF AMERICA, INC.
