Knock Sensor: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler. < Ref. to REMOVAL . >
Disconnect the knock sensor connector.

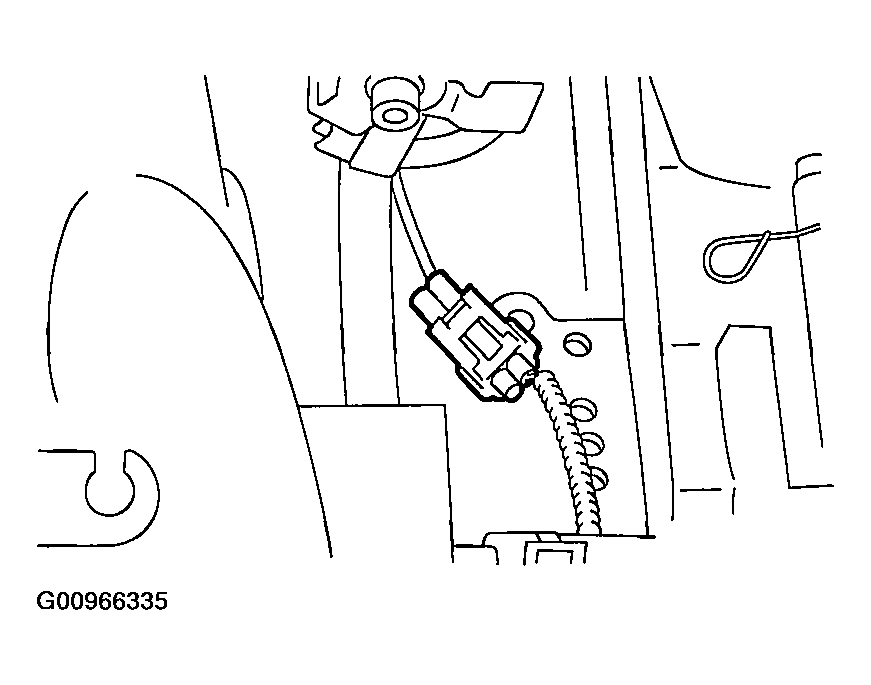

Fig 2: Identifying Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the knock sensor from the cylinder block.

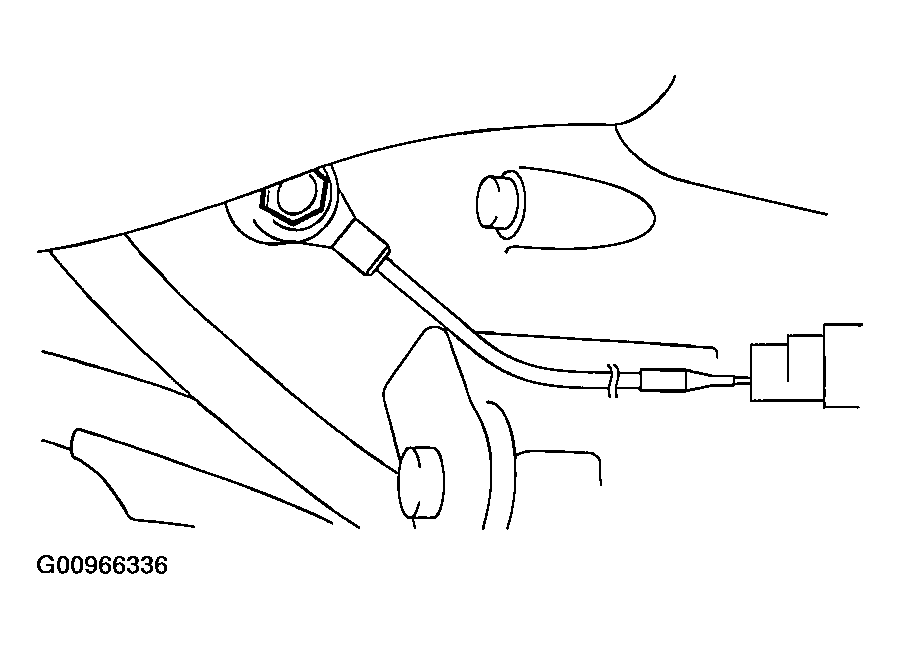

Fig 3: Removing Knock Sensor From Cylinder Block
Courtesy of SUBARU OF AMERICA, INC.
