Keyless Entry Control Module

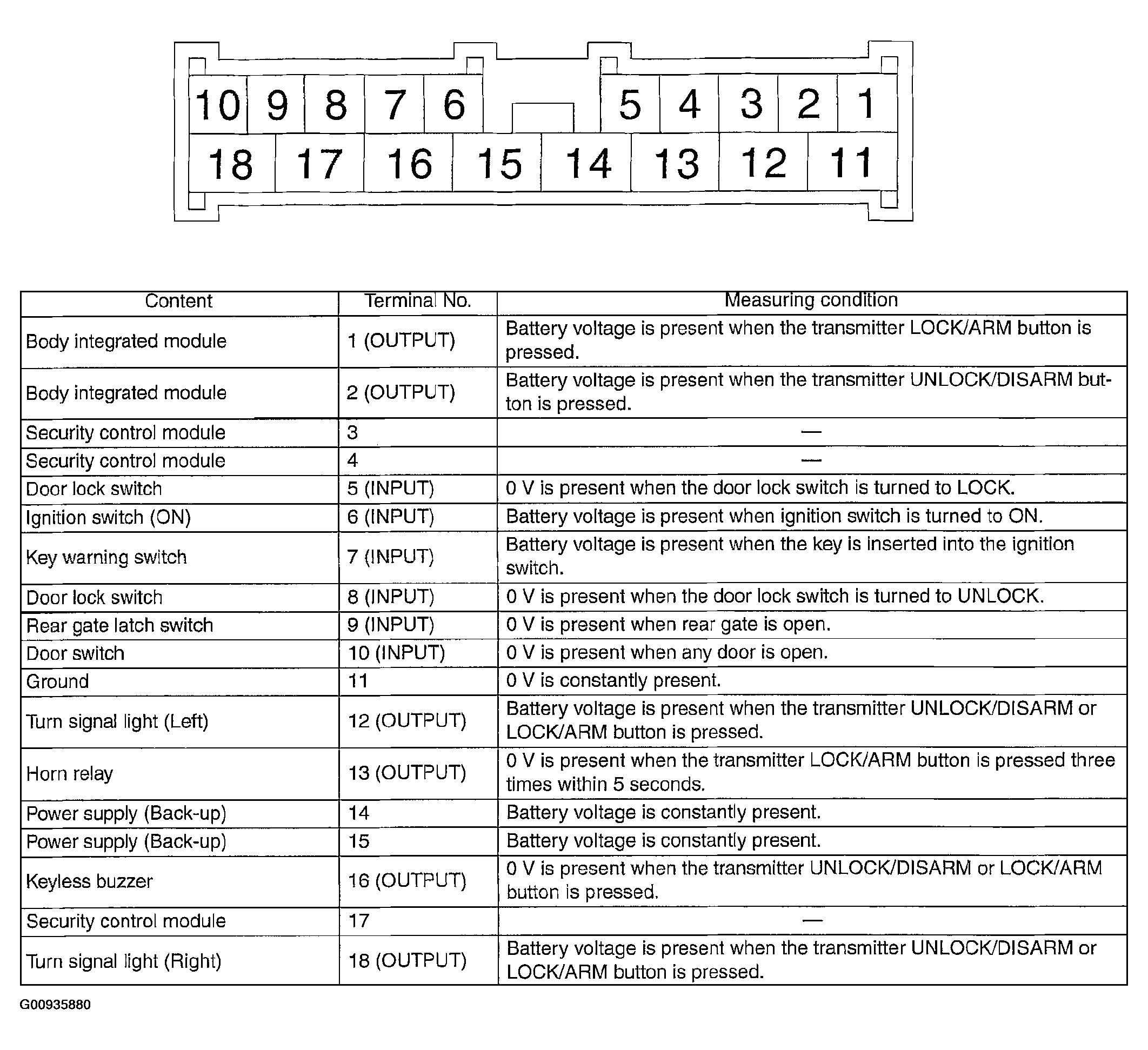

Fig 1: Identifying Keyless Entry Control Module Connector
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
