DTC P0182: Fuel Temperature Sensor "A" Circuit Low Input

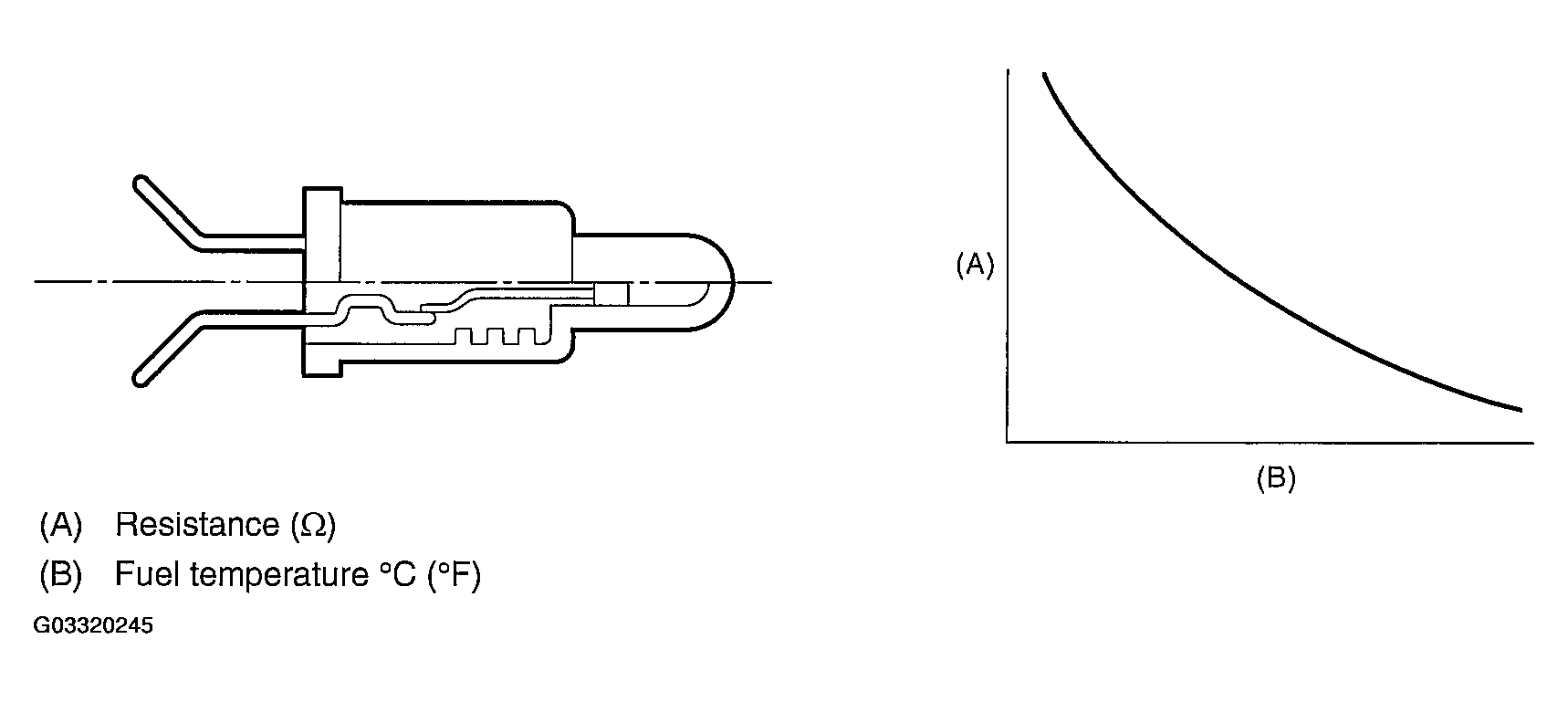

Detect the open or short circuit of fuel temperature sensor.

Judge NG when out of the standard value.

Always perform the diagnosis continuously.

• Abnormality Judgment

  Judge NG when the continuous time of completing the malfunction criteria below becomes more than 2.5 seconds.

  Judgment Value

  JUDGMENT VALUE CHART



  Malfunction Criteria	Threshold Value
  Output voltage	< 0.1646 V
  Battery voltage	"GREATER THAN EQUAL TO" 10.9 V

  Time Needed for Diagnosis:  2.5 seconds

  Malfunction Indicator Light Illumination:  Illuminates as soon as the malfunction occurs.

• Normality Judgment

  Judge OK when the cumulative time until completing the malfunction criteria below becomes more than 2.5 seconds.

  Judgment Value

  JUDGMENT VALUE CHART



  Malfunction Criteria	Threshold Value
  Output voltage	"GREATER THAN EQUAL TO" 0.1646 V
  Battery voltage	"GREATER THAN EQUAL TO" 10.9 V

• DTC CLEAR CONDITION
  • When the OK idling cycle was completed 40 times in a row
  • When "Clear Memory" was performed
• MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
  • When the OK driving cycle was completed 3 times in a row
  • When "Clear Memory" was performed
• FAIL SAFE

  None

• ECM OPERATING AT DTC SETTING

  Memorize the freeze frame data. (For test mode $02)
