DTC P0327: Knock Sensor 1 Circuit Low Input (Bank 1 Or Single Sensor)
- OUTLINE OF DIAGNOSIS
Detect the open or short circuit of the knock sensor. Judge NG when out of the standard value.

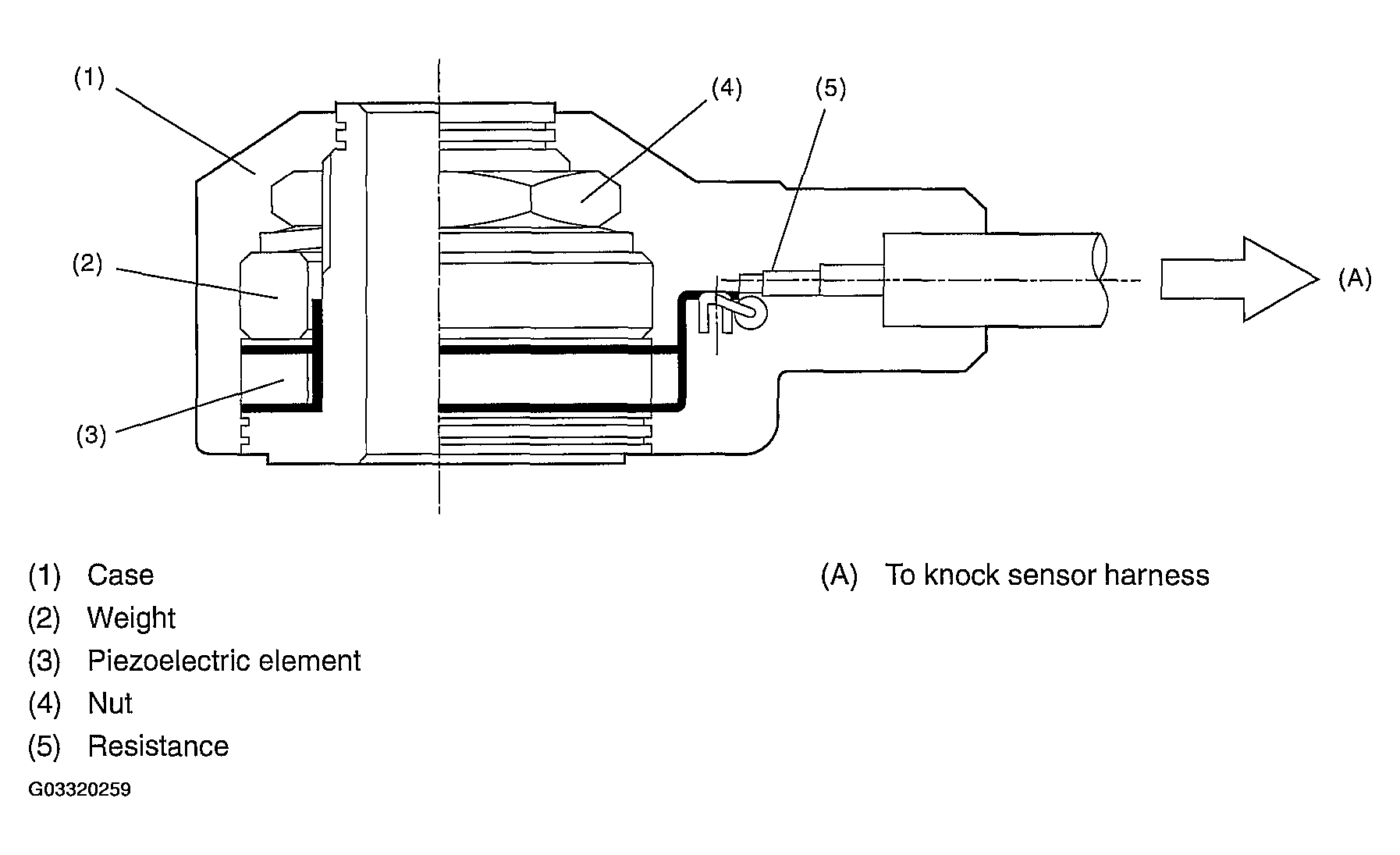

- COMPONENT DESCRIPTION
- ENABLE CONDITION ENABLE CONDITION CHART
Secondary Parameters Enable Conditions None - GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.
- DIAGNOSTIC METHOD
- Abnormality Judgment
Judge NG when the continuous time of completing the malfunction criteria below becomes more than 1 second.
Judgment Value
JUDGMENT VALUE CHARTMalfunction Criteria Threshold Value Output voltage <0.238 V Ignition switch ON Time Needed for Diagnosis: 1 second
Malfunction Indicator Light Illumination: Illuminates as soon as the malfunction occurs.
- Normality Judgment
Judge OK and clear NG when the malfunction criteria below are completed.
Judgment Value
JUDGMENT VALUE CHARTMalfunction Criteria Threshold Value Output voltage <0.238 V Ignition switch ON
- Abnormality Judgment
- DTC CLEAR CONDITION
- When the OK idling cycle was completed 40 times in a row
- When "Clear Memory" was performed
- MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
- When the OK driving cycle was completed 3 times in a row
- When "Clear Memory" was performed
- FAIL SAFE
Knock compensation:
- Knock compensation final timing advance and retard value = knock compensation + whole learning compensation value + partial learning compensation value.
- At normal: knock compensation = 0°CA is fixed.
- At trouble: knock compensation = -5°CA. (Retard 5°CA.)
- Not allowed to update the whole learning compensation factor.
- Not allowed to calculate the partial learning zone compensation value.
- ECM OPERATING AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
