DTC P2109: Throttle/Pedal Position Sensor A Minimum Stop Performance

OUTLINE OF DIAGNOSIS
Judge NG when all close point learning cannot conducted or abnormal value is detected.
COMPONENT DESCRIPTION

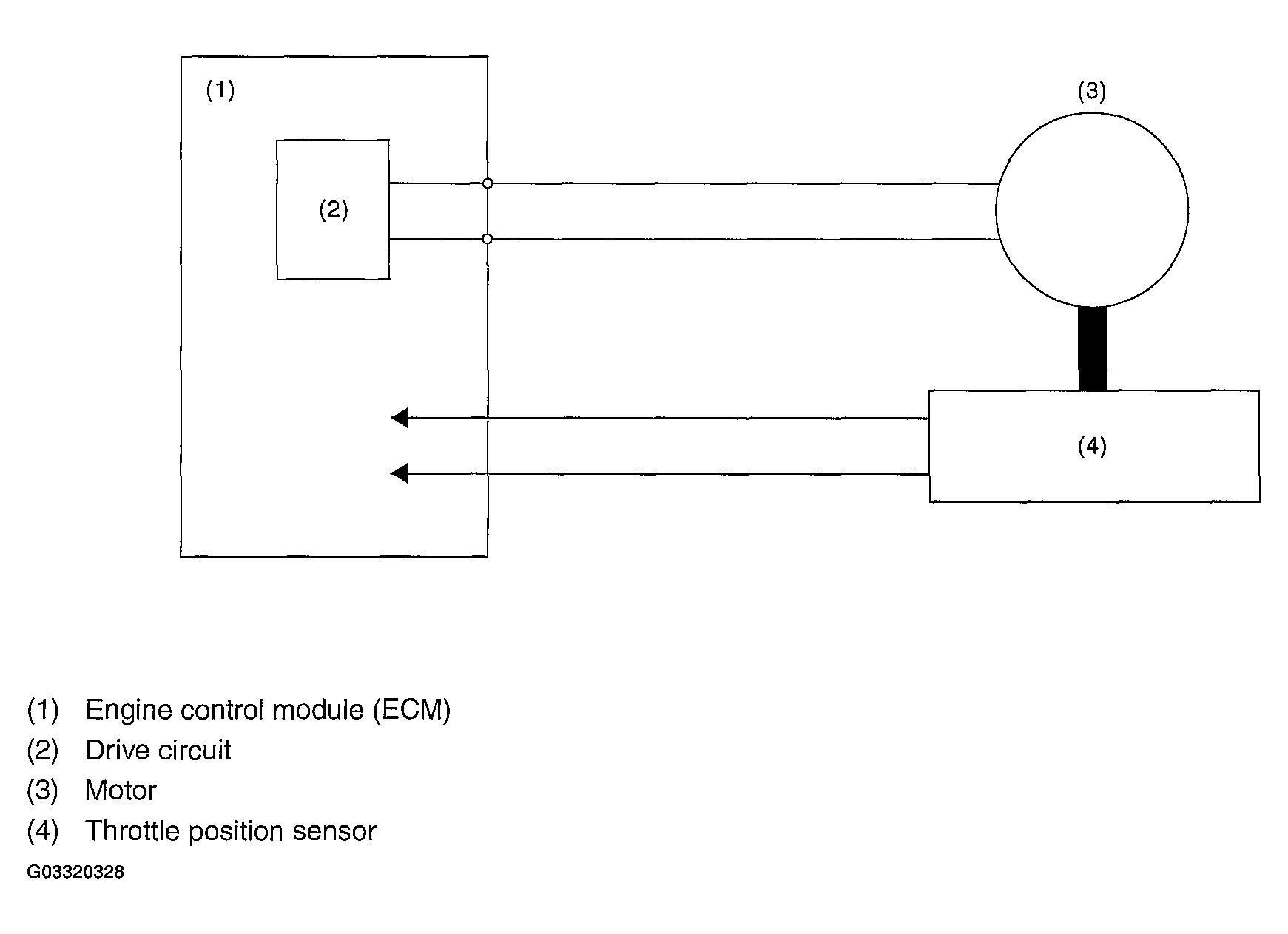

Fig 1: DTC P2109 - Throttle/Pedal Position Sensor A Minimum Stop Performance - Component Description
Courtesy of SUBARU OF AMERICA, INC.

ENABLE CONDITION

ENABLE CONDITION CHART

Secondary Parameters	Enable Conditions
Ignition switch	ON --> OFF
Ignition switch (after clear memory only)	OFF --> ON

DIAGNOSTIC METHOD

Judge OK and clear the NG when the malfunction criteria below are completed.

Judgment Value

JUDGMENT VALUE CHART

Malfunction Criteria	Threshold Value
Throttle sensor voltage at all close point learning	0.41 - 0.79 V
Time for all close point learning completion	Within 80 milliseconds

Time Needed for Diagnosis: None

Malfunction Indicator Light Illumination: Illuminates as soon as malfunction occurs.

DTC CLEAR CONDITION
- When the OK idling cycle was completed 40 times in a row
- When "Clear Memory" was performed (Only engine stop)
MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
- When the OK driving cycle was completed 3 times in a row
- When "Clear Memory" was performed (Only engine stop)
FAIL SAFE
Stop the continuity to the electronic control throttle motor. (Fix the throttle opening angle to 6°.)
ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
