Forester XT, Standard
>>
Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
Engine (Diagnostics) (H4DOTC)
>>
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
>>
DTC P0123: Throttle/Pedal Position Sensor/Switch "A" Circuit High Input
>>
Wiring Diagram:
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wiring Diagram:

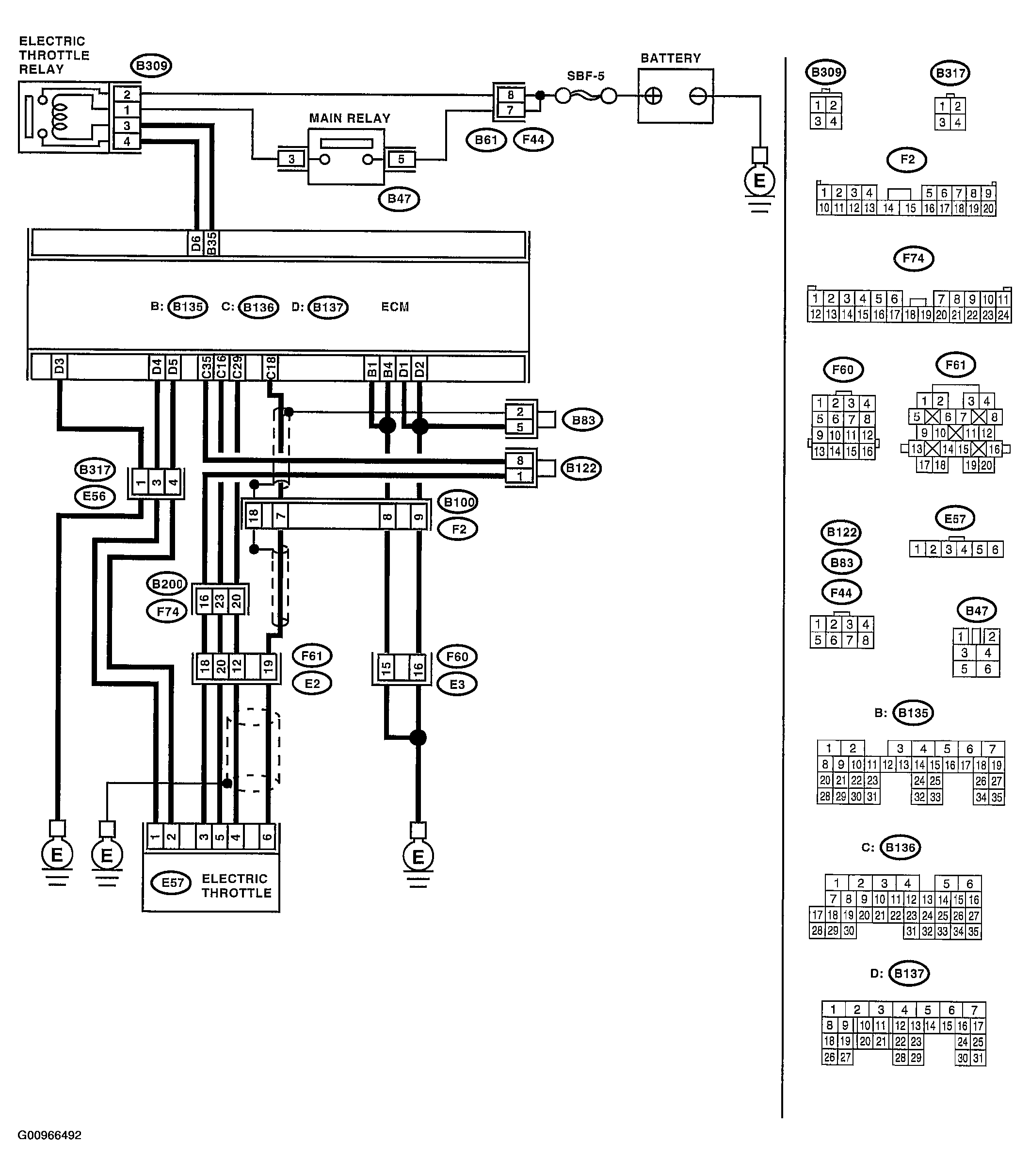

Fig 1: Throttle/Pedal Position Sensor/Switch Circuit High Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
