Input And Output Signals

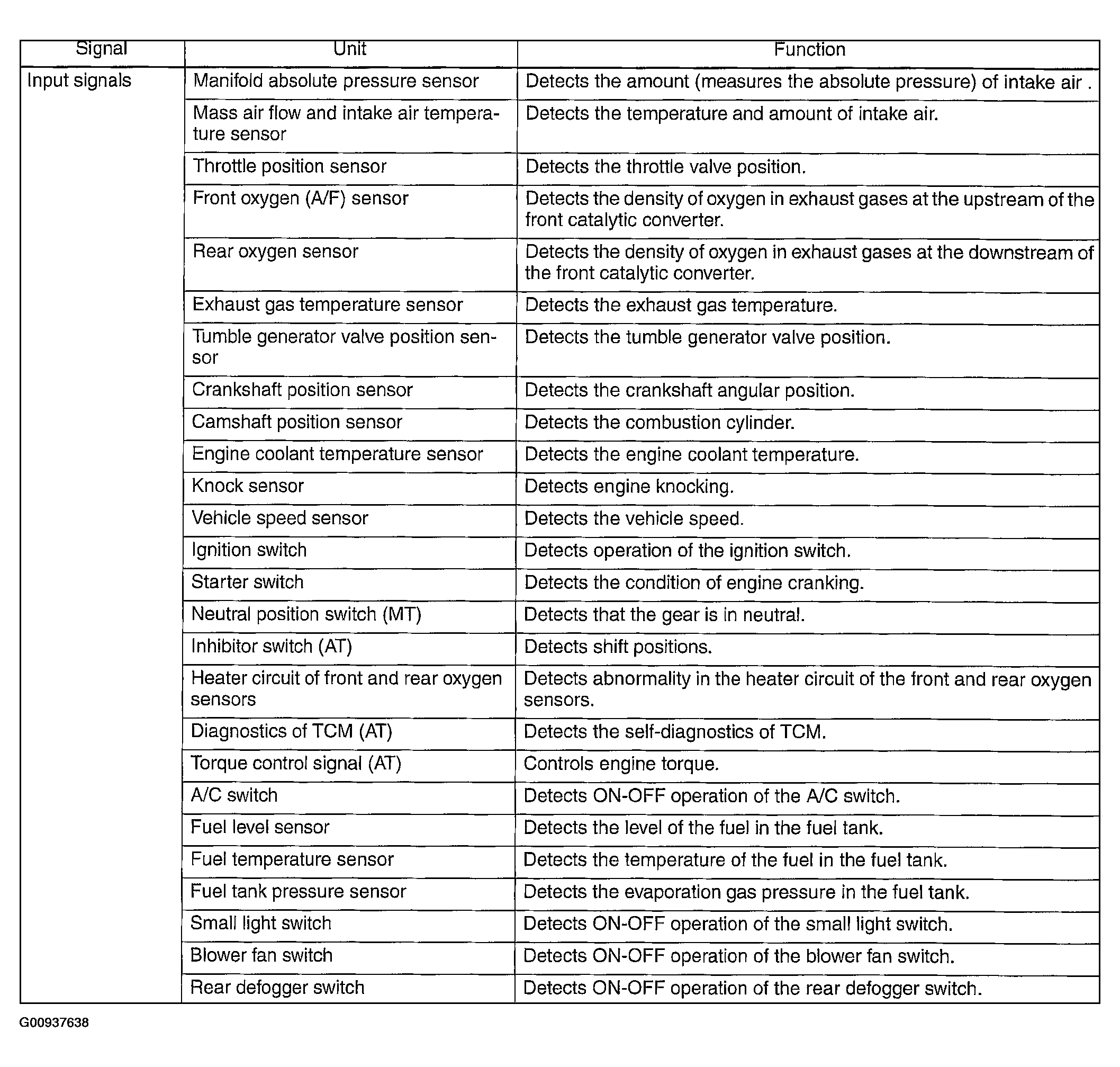

Fig 1: Input & Output Signals Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

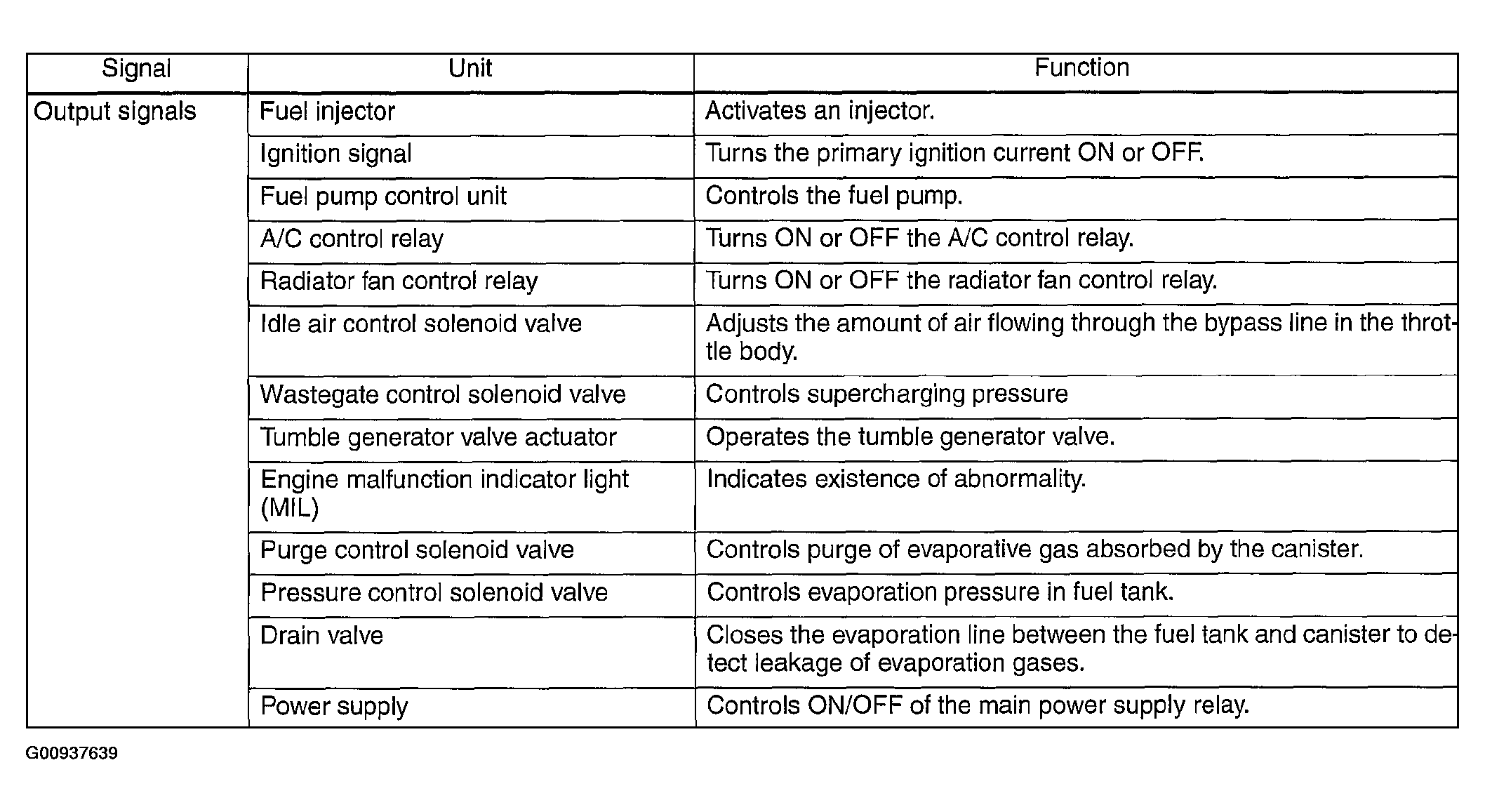

Fig 2: Input & Output Signals Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
