Diagnostic Procedure

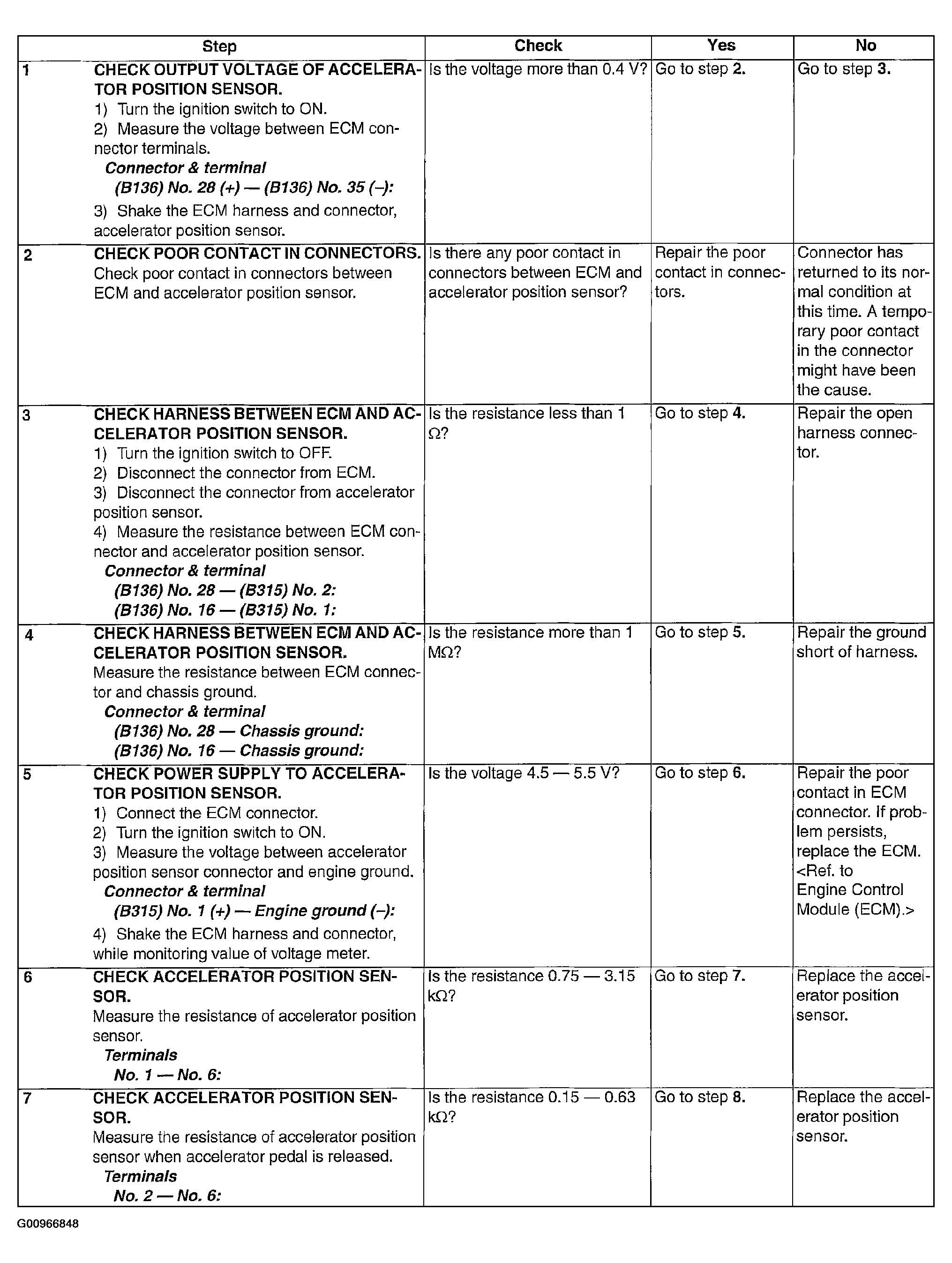

Fig 1: Diagnostic Procedure Chart (1 Of 2)
G00966848Courtesy of SUBARU OF AMERICA, INC.

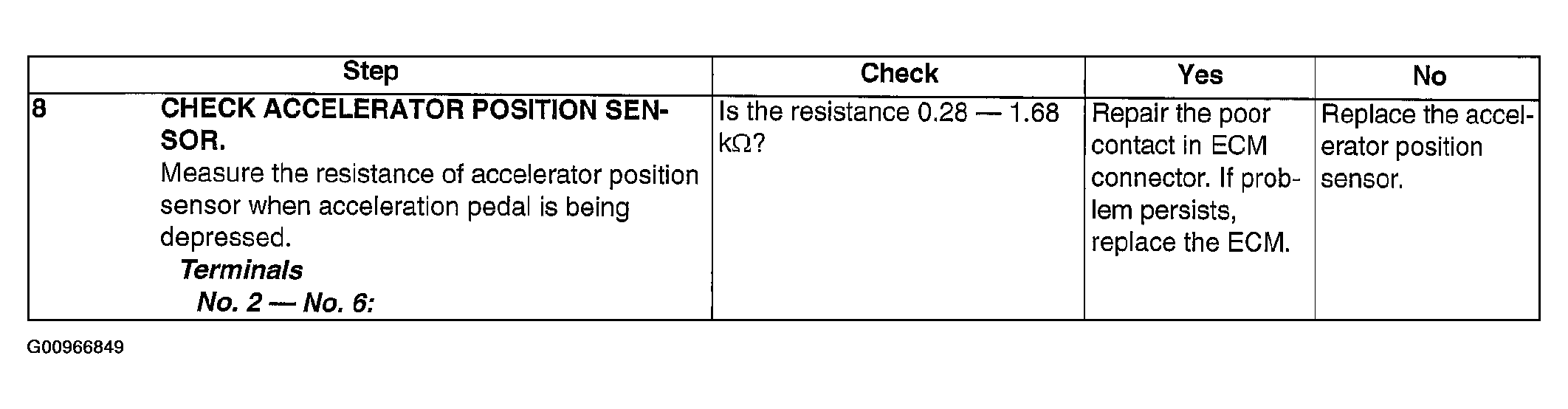

Fig 2: Diagnostic Procedure Chart (2 Of 2)
G00966849Courtesy of SUBARU OF AMERICA, INC.
