Headlight Relay

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Measure the headlight relay resistance between terminals when connecting terminal No. 4 to battery positive terminal and terminal No. 3 to battery ground terminal.

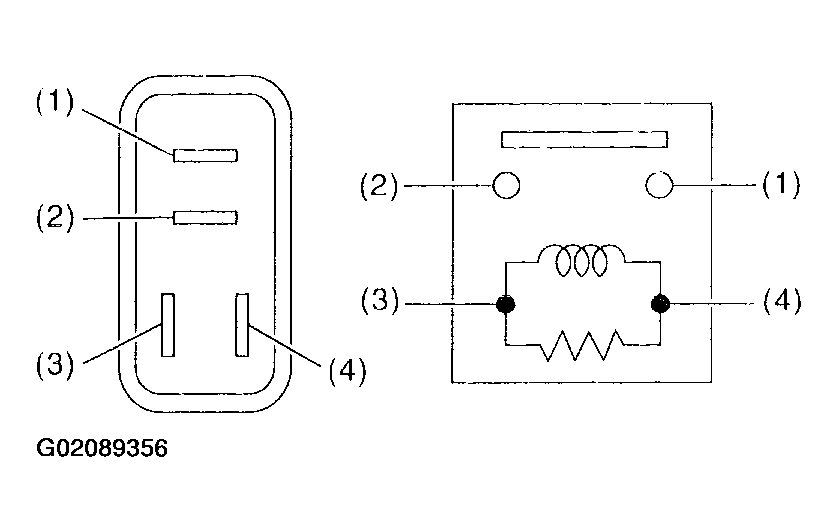

Fig 1: Measuring Headlight Relay Resistance

Courtesy of SUBARU OF AMERICA, INC.

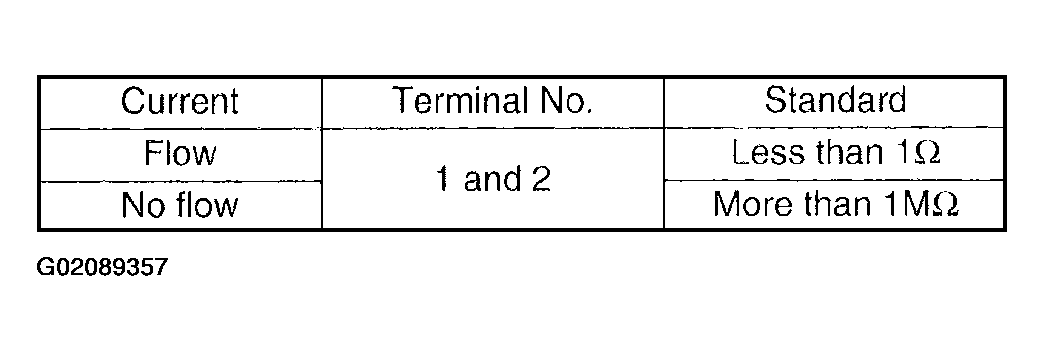

Fig 2: Headlight Relay Resistance Chart

Courtesy of SUBARU OF AMERICA, INC.
