Basic Diagnostic Procedure: Procedure

WARNING: This page is about a different variant/trim than selected.

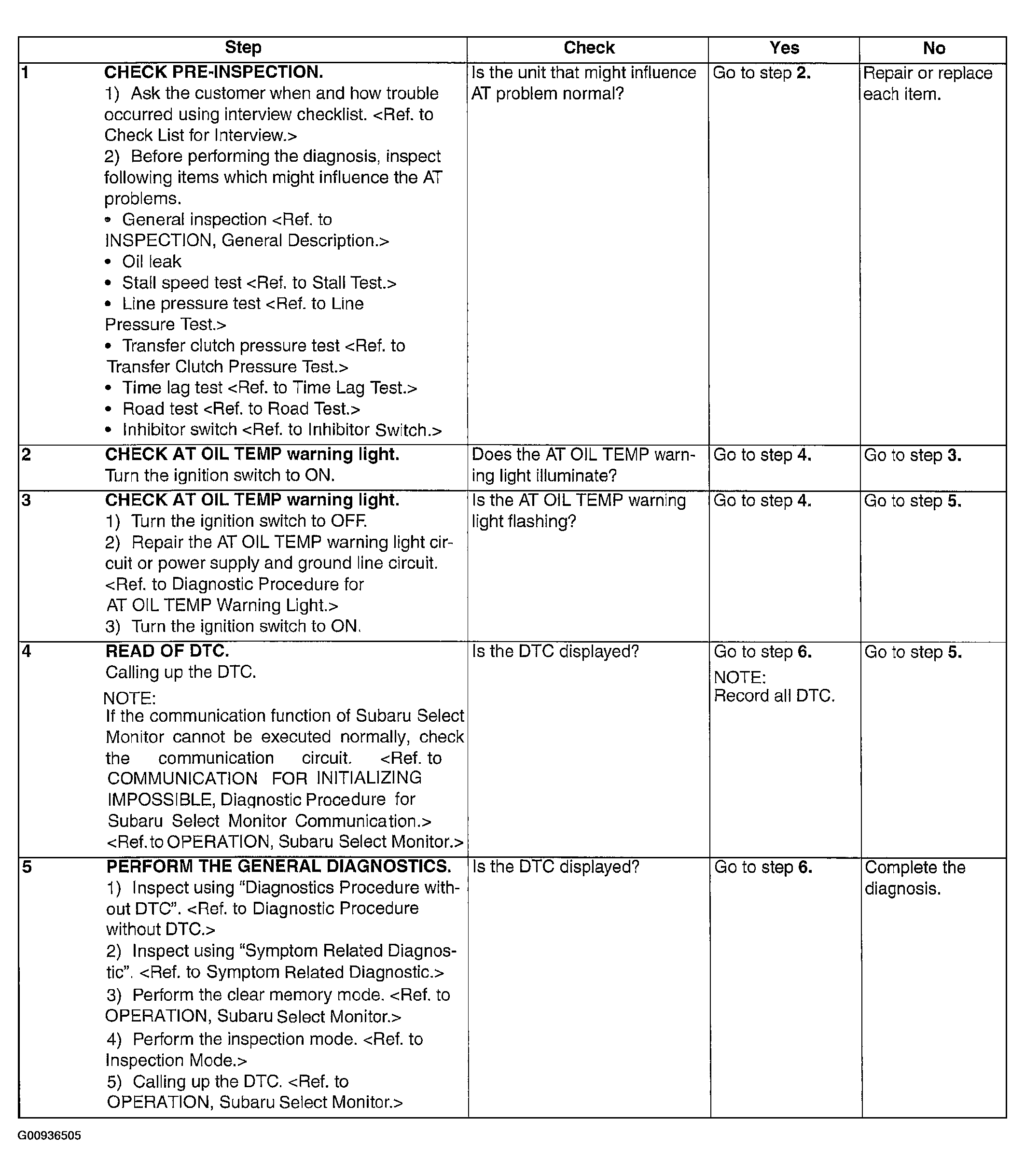

Fig 1: Basic Diagnostic Procedure Chart (1 Of 2)
G00936505Courtesy of SUBARU OF AMERICA, INC.

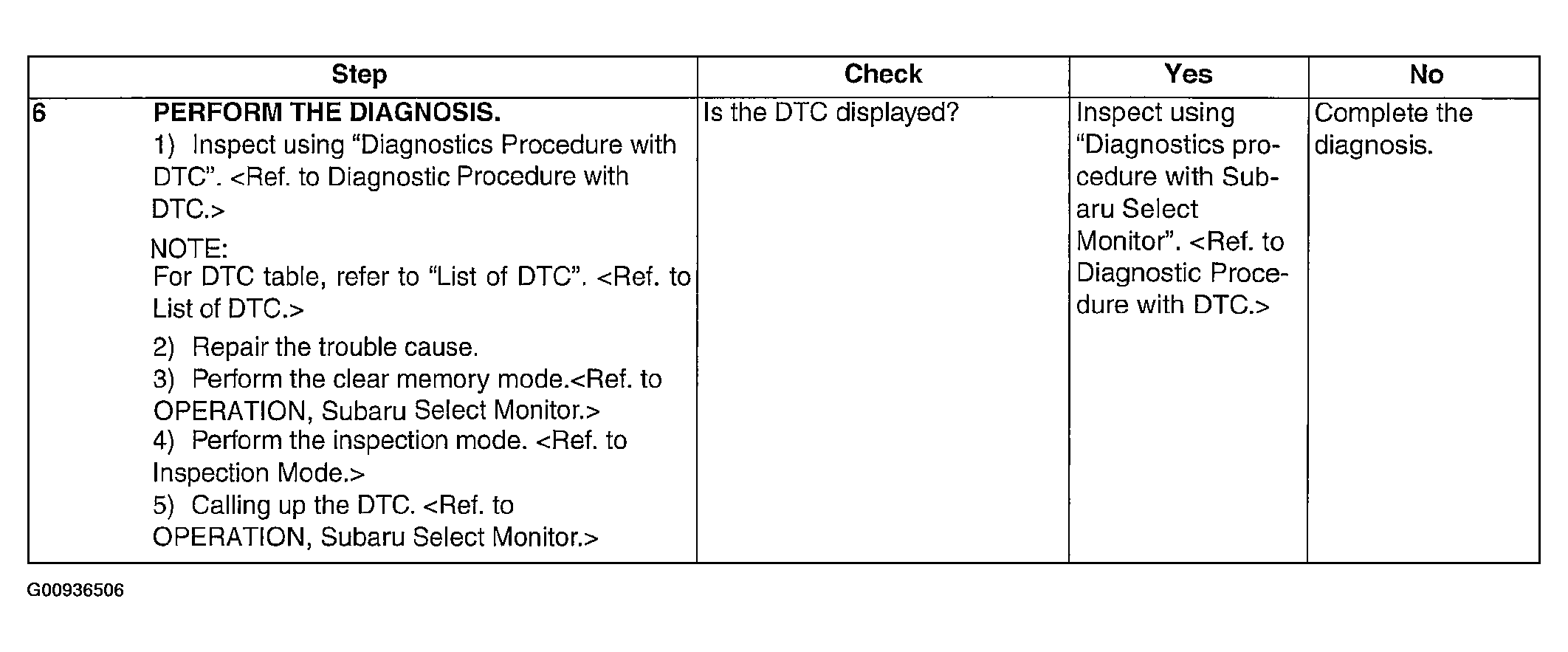

Fig 2: Basic Diagnostic Procedure Chart (2 Of 2)
G00936506Courtesy of SUBARU OF AMERICA, INC.
