A/T Shift Lock Solenoid and "P" Range Switch: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.
Remove the console box. < Ref. to A: REMOVAL , Console Box . >
Disconnect the connector.
Remove the grip.
Remove the indicator light from indicator cover.

Fig 1: Identifying Indicator Light
Courtesy of SUBARU OF AMERICA, INC.
Remove the indicator cover.

Fig 2: Identifying Indicator Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the slider.
Remove the cushion.
Remove the clip, and then remove the "P" range switch.

Fig 3: Identifying Clip
Courtesy of SUBARU OF AMERICA, INC.

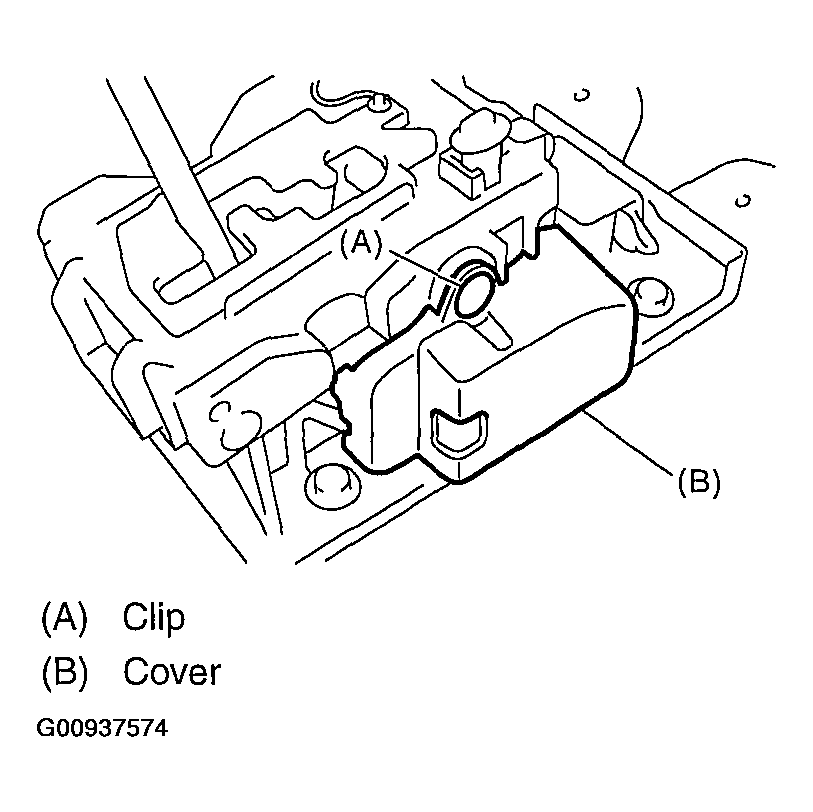

Remove the cover.

Fig 4: Identifying Cover
Courtesy of SUBARU OF AMERICA, INC.

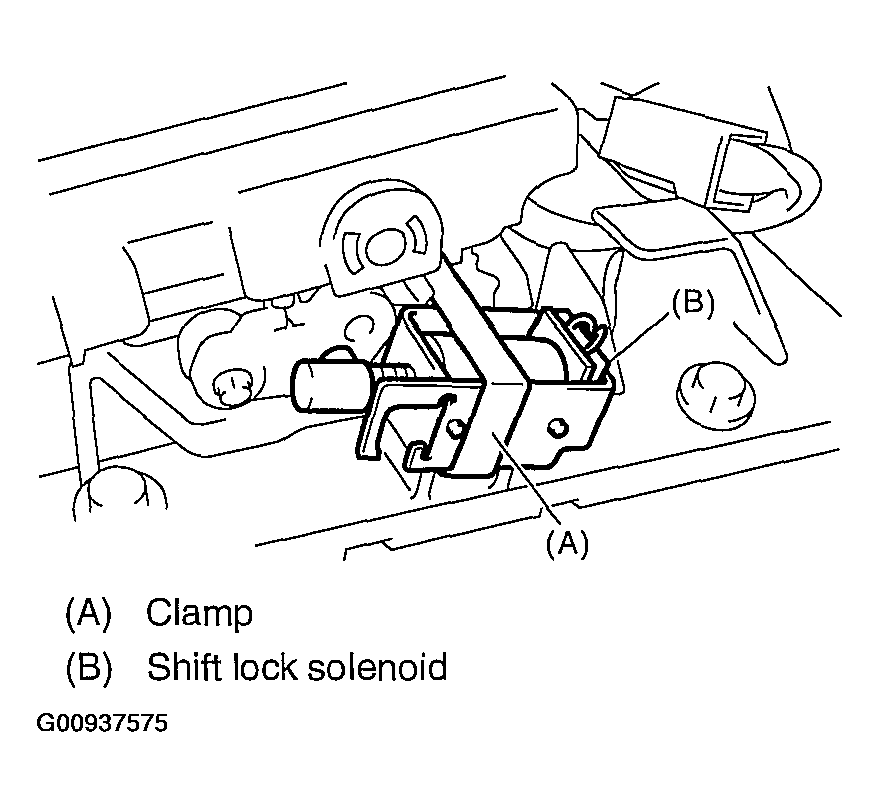

Remove the clamp and remove the shift lock solenoid.

Fig 5: Identifying Clamp
Courtesy of SUBARU OF AMERICA, INC.
