Sub-Frame Inspection

  1. Check that there is no damage and distortion at the sub-frame.

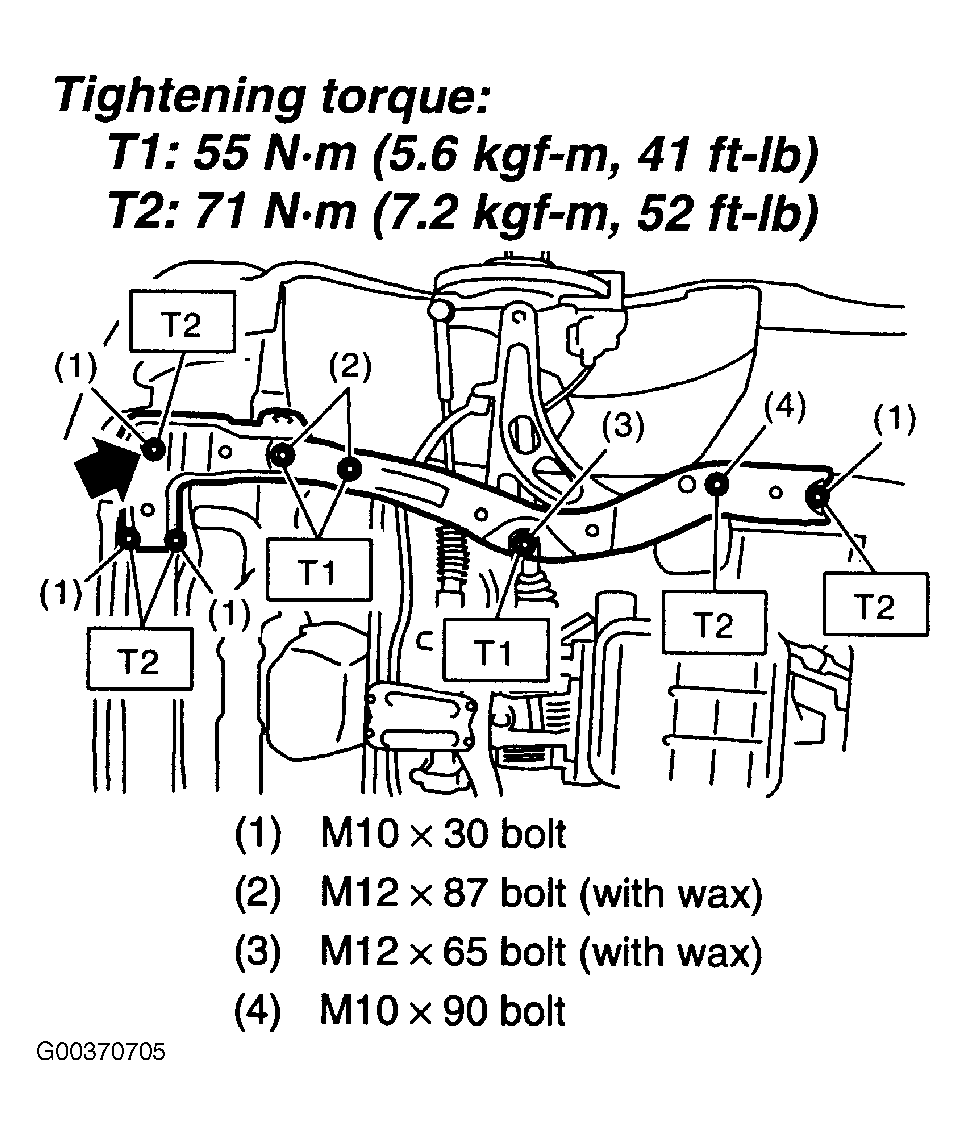

  2. Check that the bolts are tightened. See TORQUE SPECIFICATIONS . See Figure.
