Reduction Drive Gear: Assembly

  1. Press-fit the reduction drive gear to the shaft.
  2. Press-fit a new ball bearing to the reduction drive gear.
  3. Apply vaseline to the outer surface of seal ring and shaft groove.
  4. Attach a new seal rings.

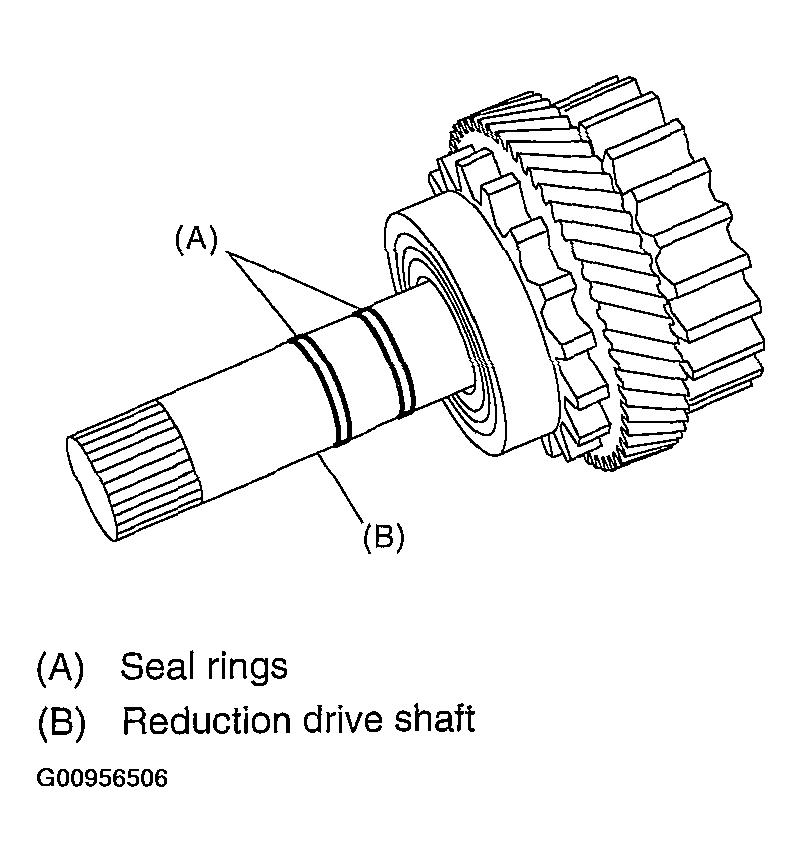

    Fig 1: Attaching New Seal Rings
    G00956506Courtesy of SUBARU OF AMERICA, INC.
