6MT Gear Shift Lever: General

The six-speed manual transmission's control system has a gear shift lever specially designed for the use with it. The gearshift lever is complete with a parallel-link gear shift mechanism as is the case with the five-speed transmission's gearshift lever. To prevent accidental shifting to the reverse gear, the lever has a mechanism that allows a shift into reverse only after the slider has been pulled up.

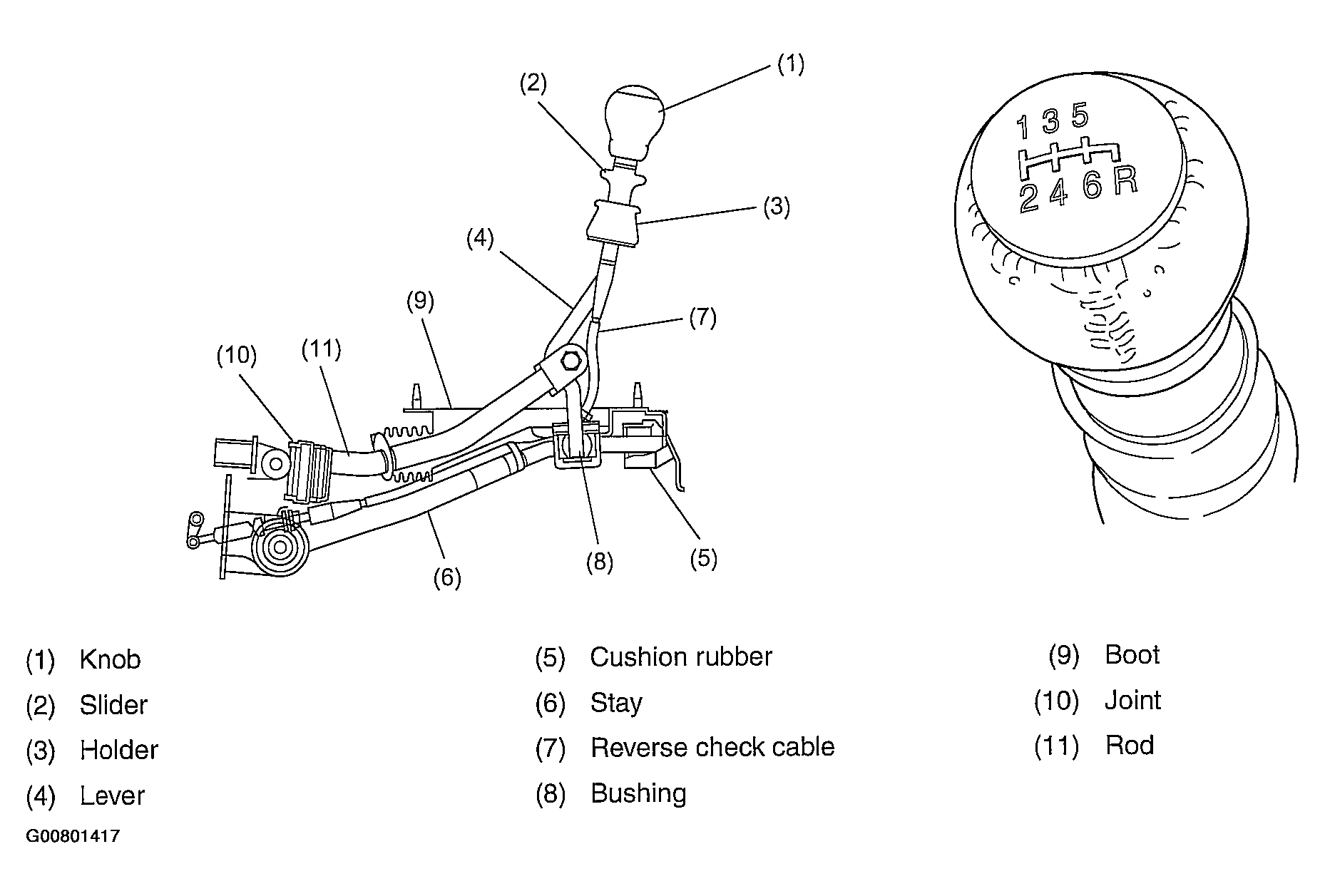

Fig 1: Identifying 6MT Gear Shift Lever Components
G00801417Courtesy of SUBARU OF AMERICA, INC.
