Security Horn: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the nuts and then detach the security horn while disconnecting the connector.

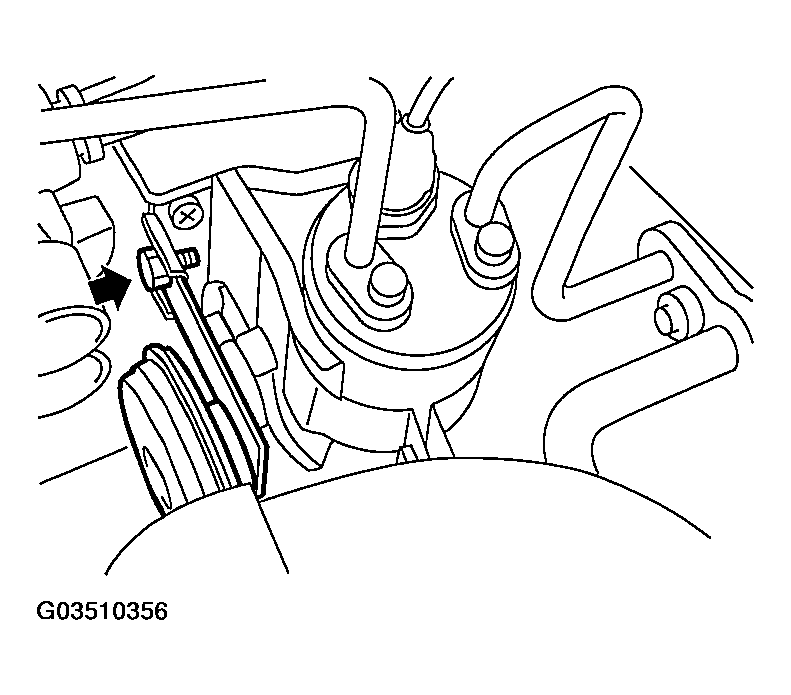

    Fig 1: Detaching Security Horn
    G03510356Courtesy of SUBARU OF AMERICA, INC.
