Diagnostic Procedure with Diagnostic Trouble Code (DTC)
>>
DTC P0122: Throttle/Pedal Position Sensor/Switch "A" Circuit Low Input
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

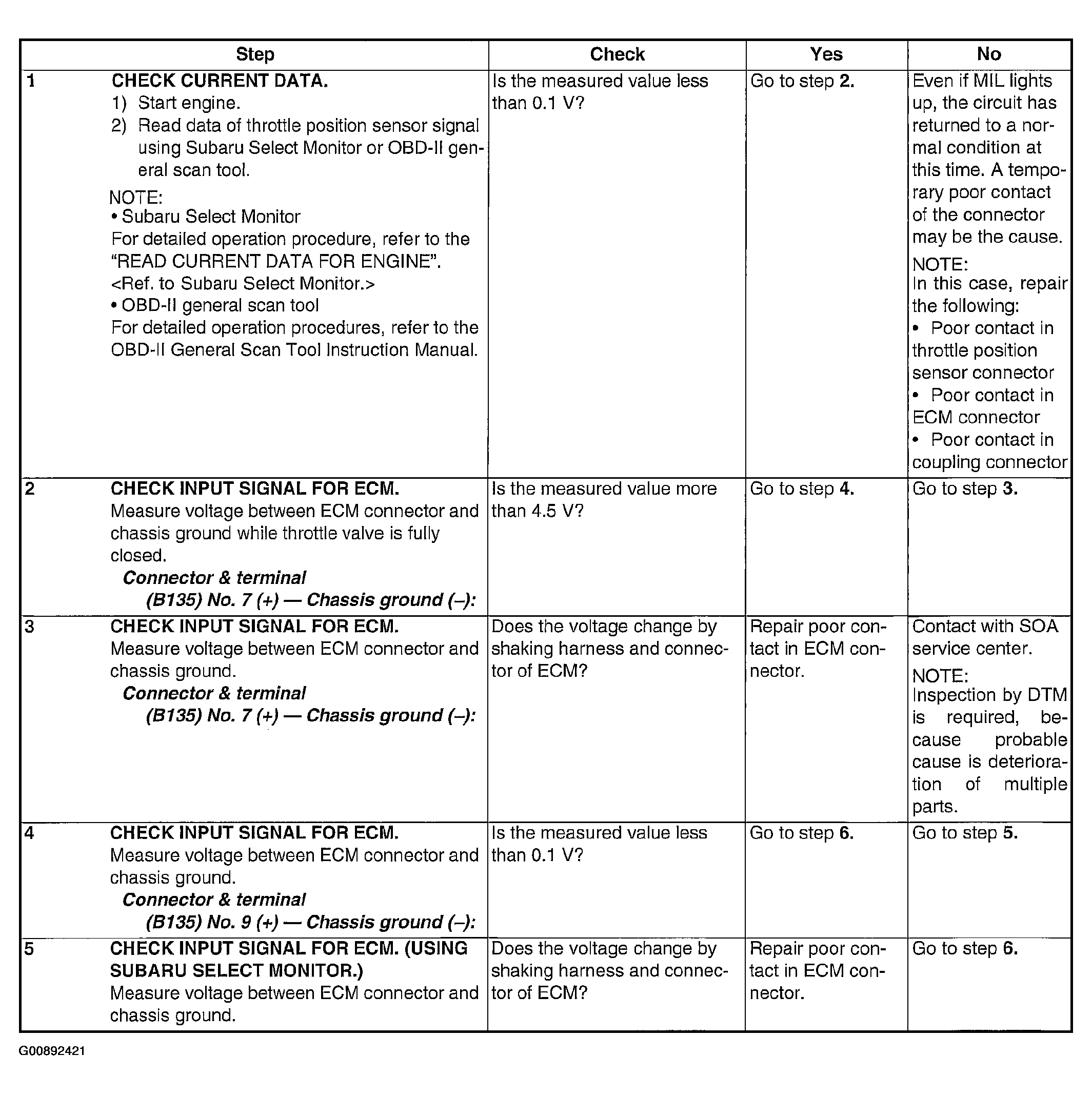

Fig 1: Diagnostic Procedure With Diagnostic Trouble Code Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

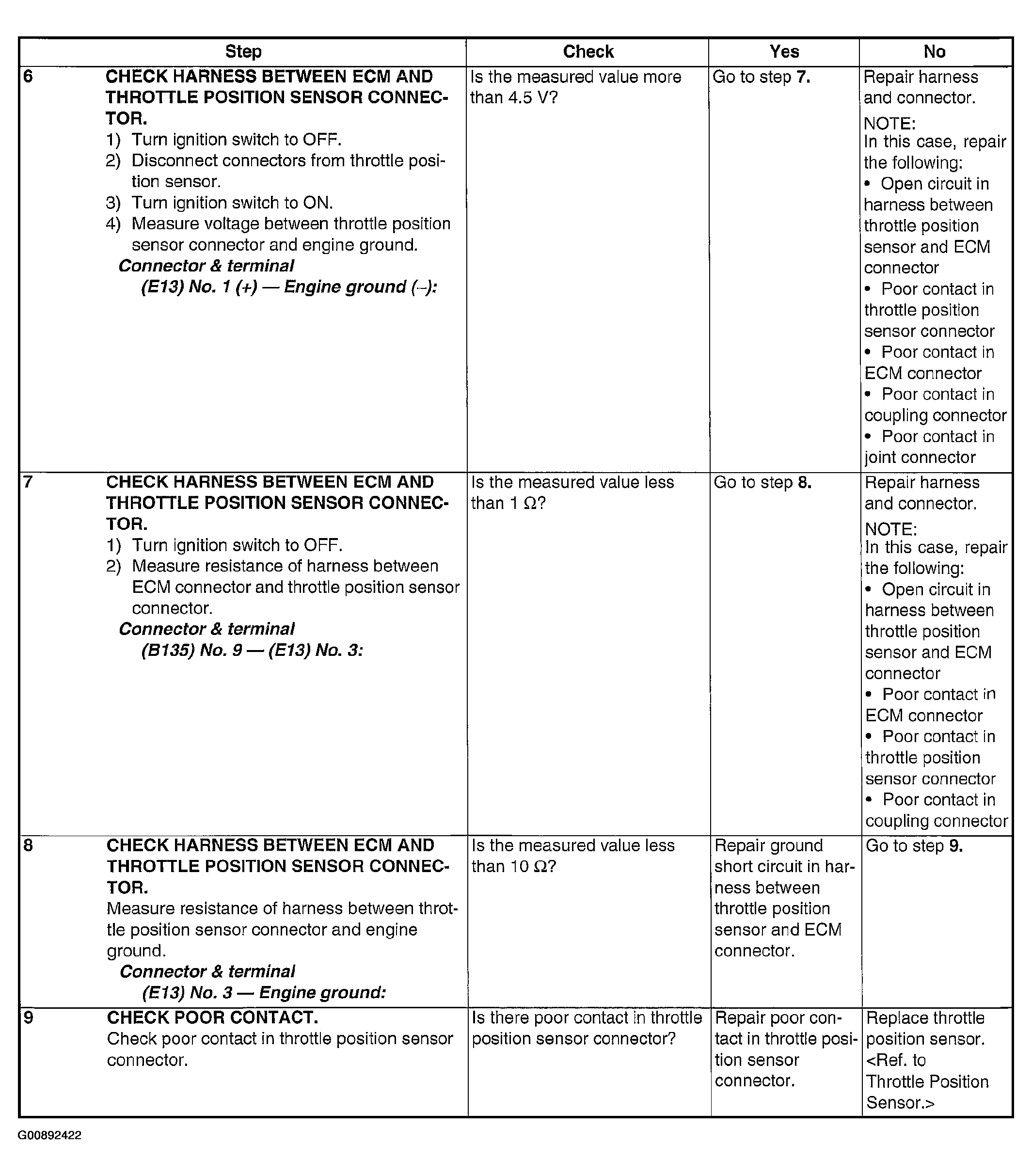

Fig 2: Diagnostic Procedure With Diagnostic Trouble Code Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
