DTC P0122: Throttle/Pedal Position Sensor/Switch "A" Circuit Low Input: Wiring Diagram

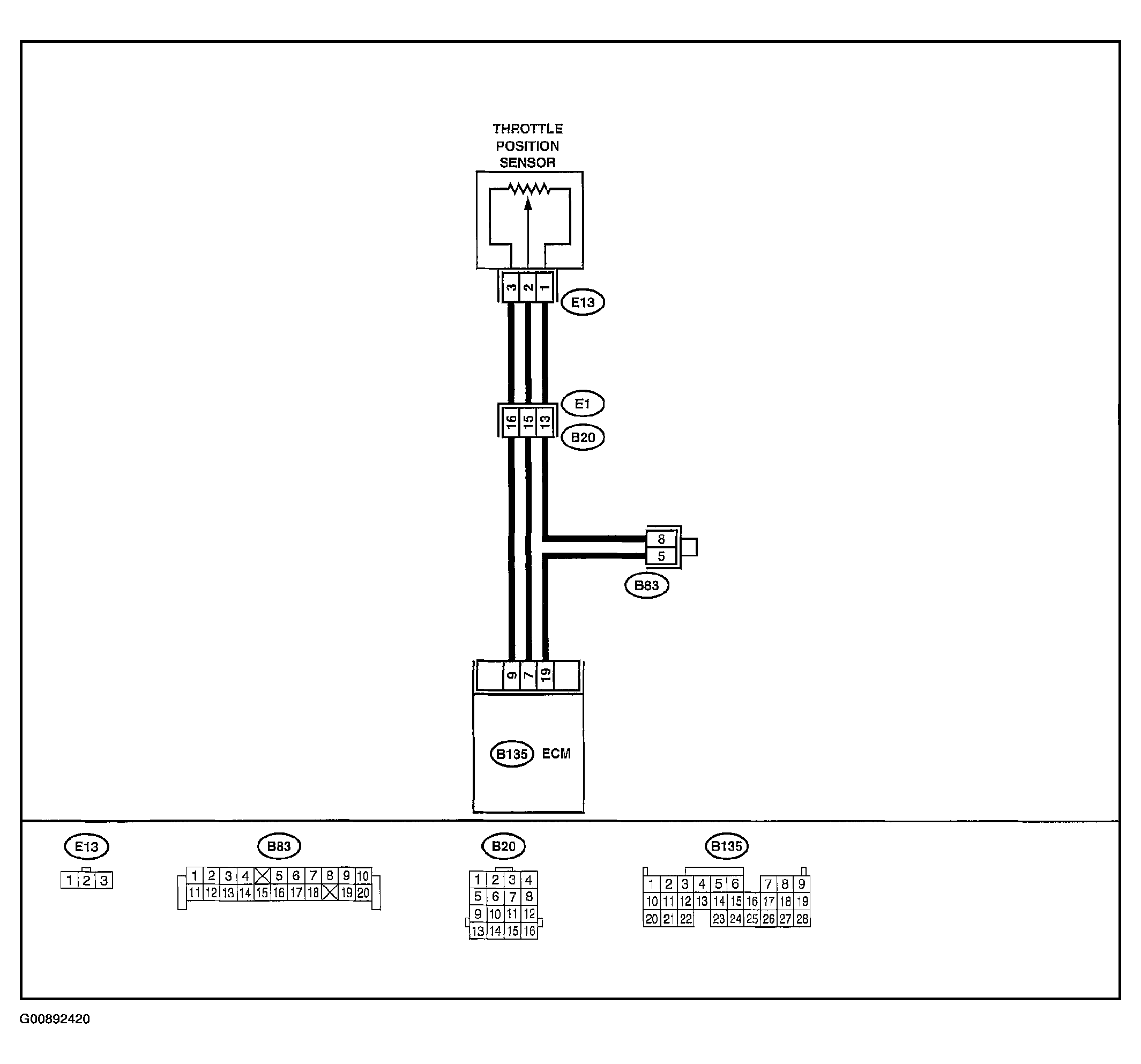

Fig 1: Throttle/Pedal Position Sensor/Switch "A" Circuit Low Wiring Diagram
G00892420Courtesy of SUBARU OF AMERICA, INC.
