DTC P0463: Fuel Level Sensor Circuit High Input: Wiring Diagram

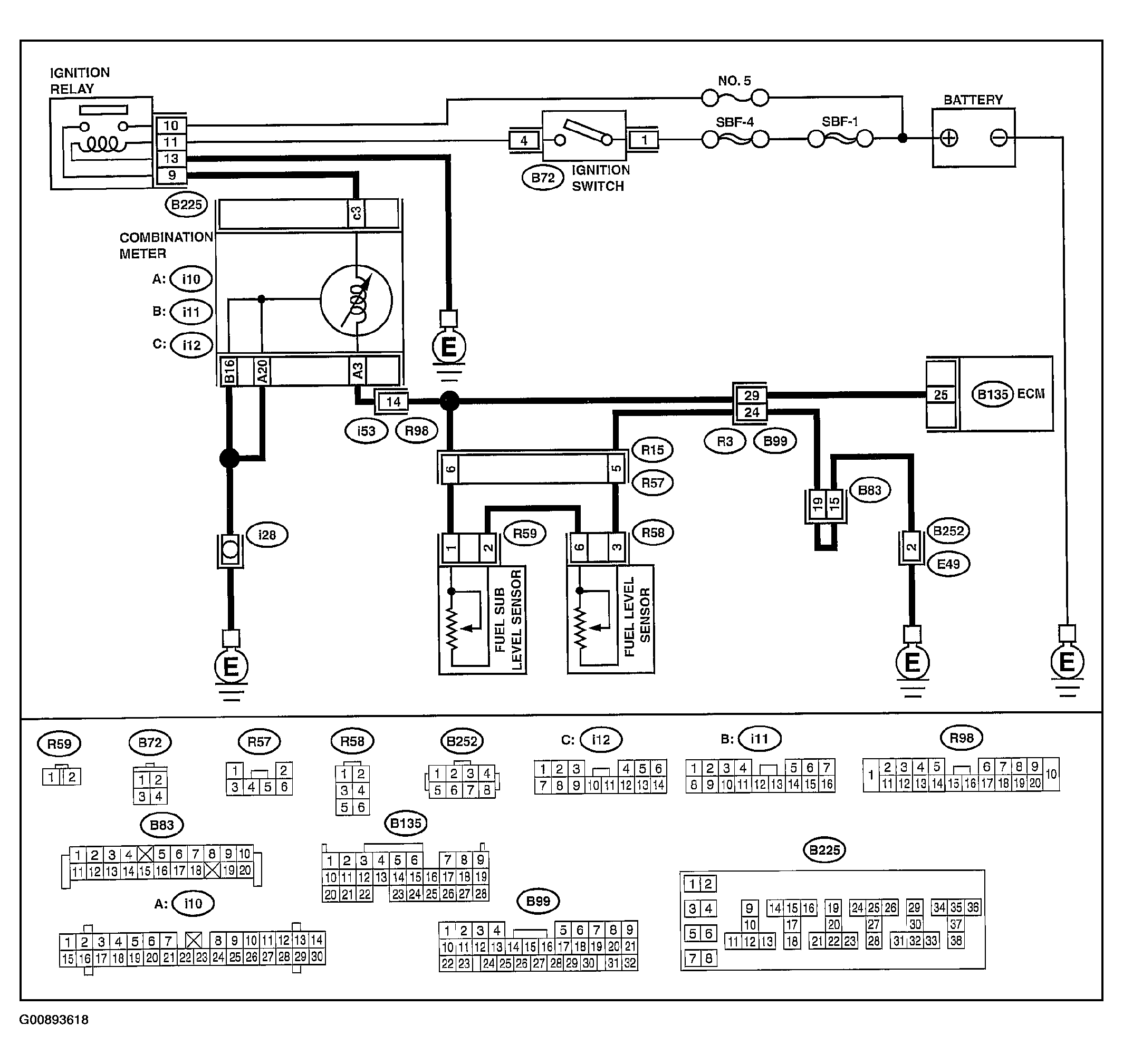

Fig 1: Fuel Level Sensor Circuit High Wiring Diagram
G00893618Courtesy of SUBARU OF AMERICA, INC.
