DTC P1134: A/F Sensor Micro-Computer Problem: Wiring Diagram

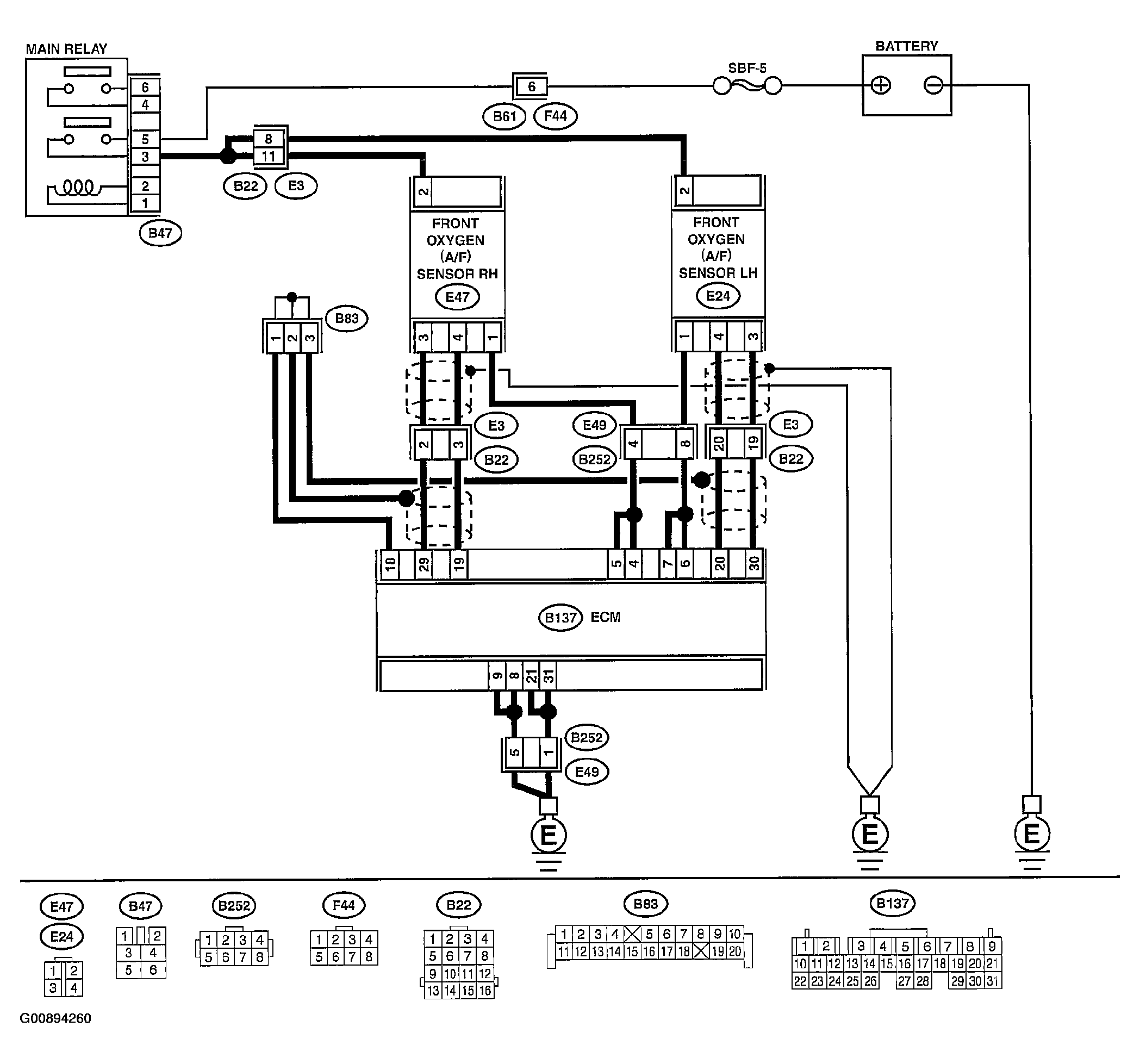

Fig 1: A/F Sensor Micro-Computer Problem Wiring Diagram
G00894260Courtesy of SUBARU OF AMERICA, INC.
