Input Shaft Play

In radial direction:
1. Service limit
  1. 0.18 mm (0.0071 in) or less
2. On condition
  1. P: 98 N (10 kgf, 22 lb)

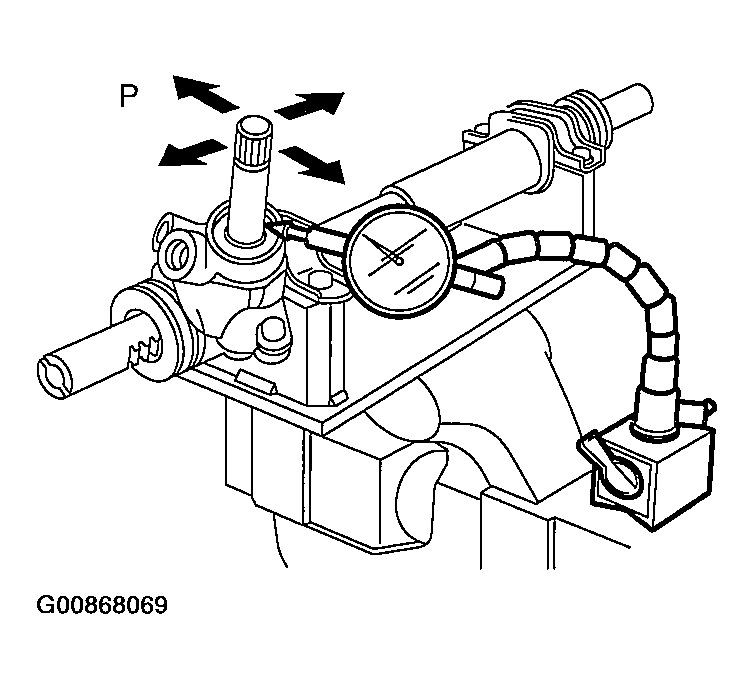

Fig 1: Measuring Input Shaft Play
Courtesy of SUBARU OF AMERICA, INC.
In axial direction:
1. Service limit
  1. 0.5 mm (0.020 in) or less
2. On condition
  1. P: 20-49 N (2-5 kgf, 4-11 lb)

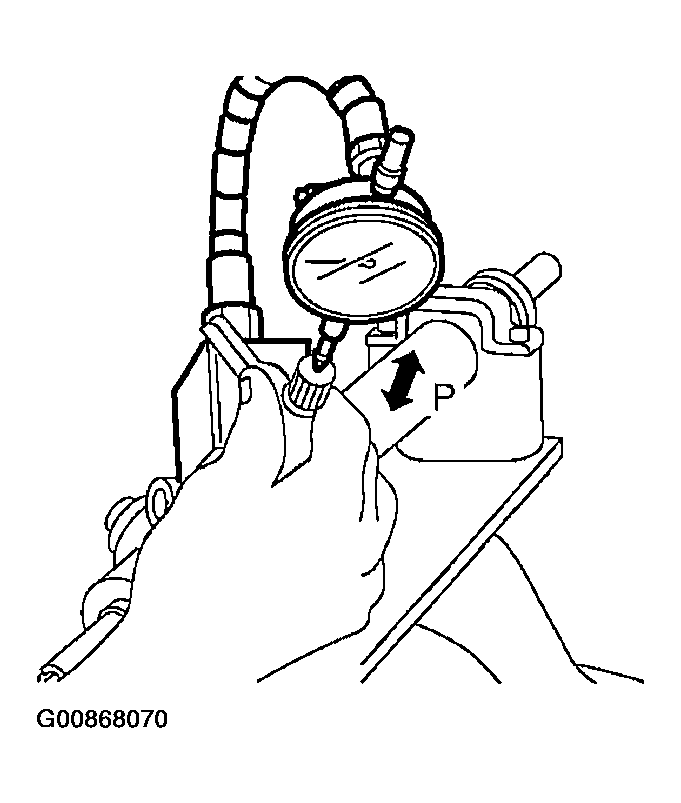

Fig 2: Measuring Input Shaft Play
Courtesy of SUBARU OF AMERICA, INC.
