Automatic Transmission: General Description: Preparation Tool

  1. SPECIAL TOOLS

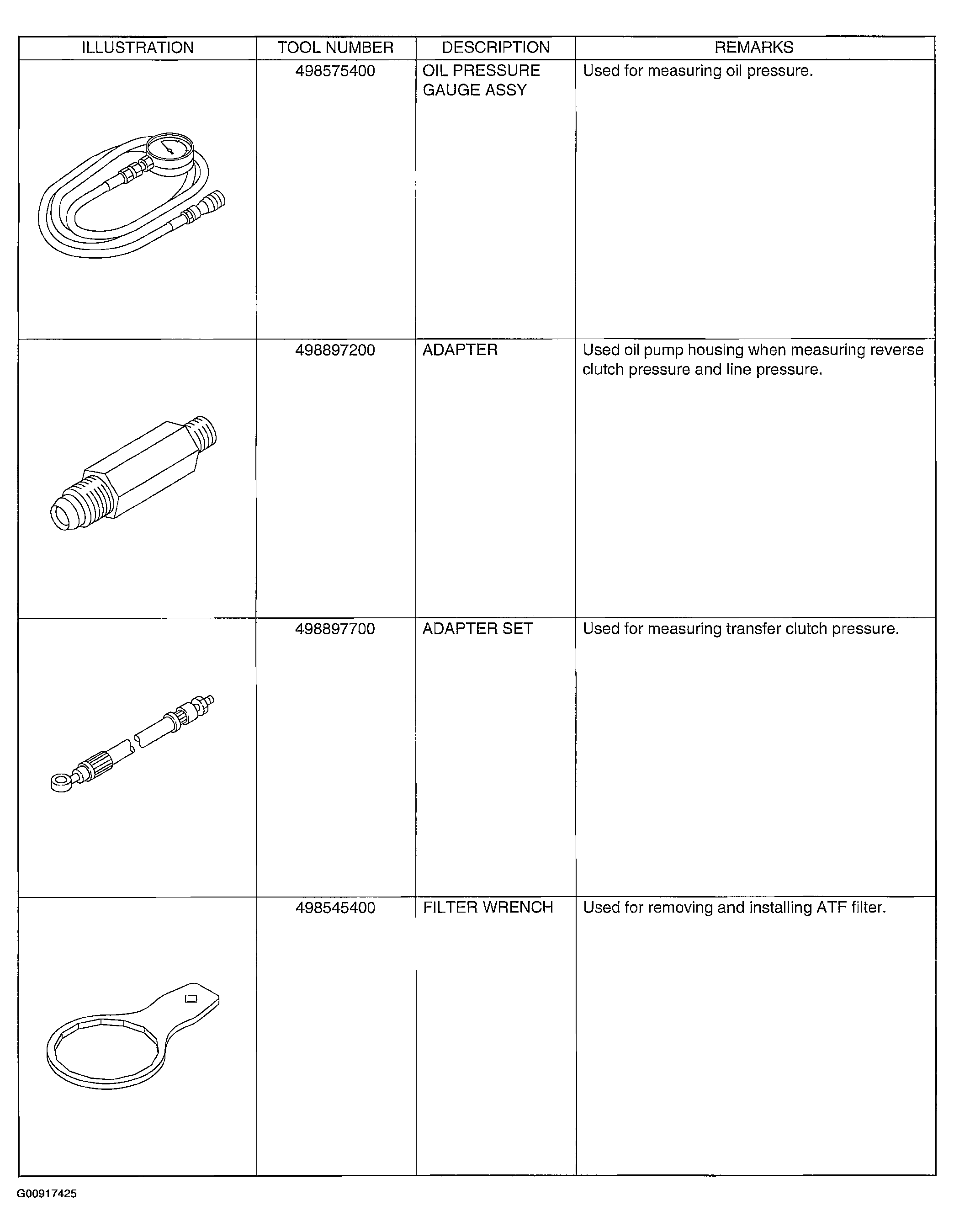

    Fig 1: Identifying Special Tools (1 Of 12)
    G00917425Courtesy of SUBARU OF AMERICA, INC.

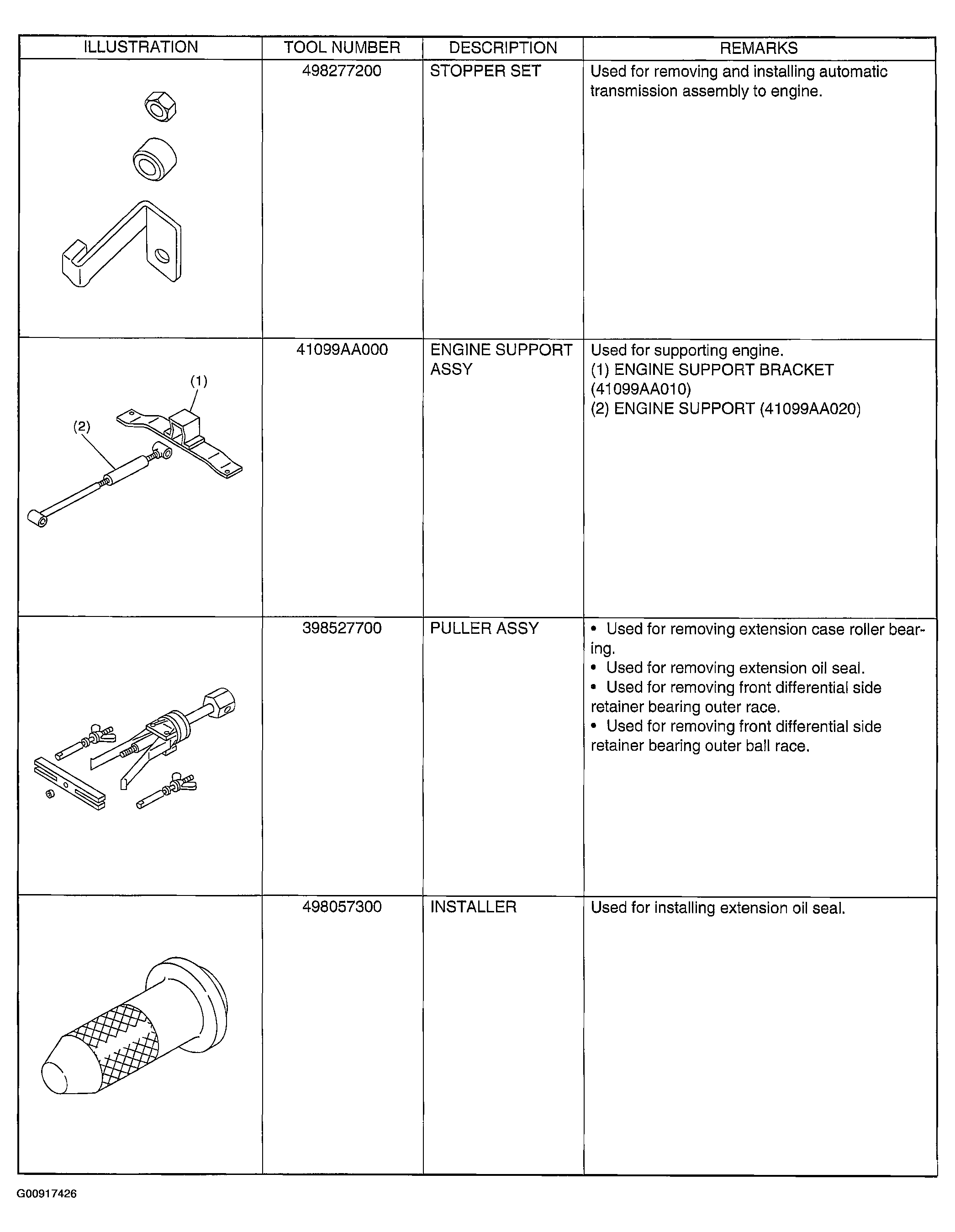

    Fig 2: Identifying Special Tools (2 Of 12)
    G00917426Courtesy of SUBARU OF AMERICA, INC.

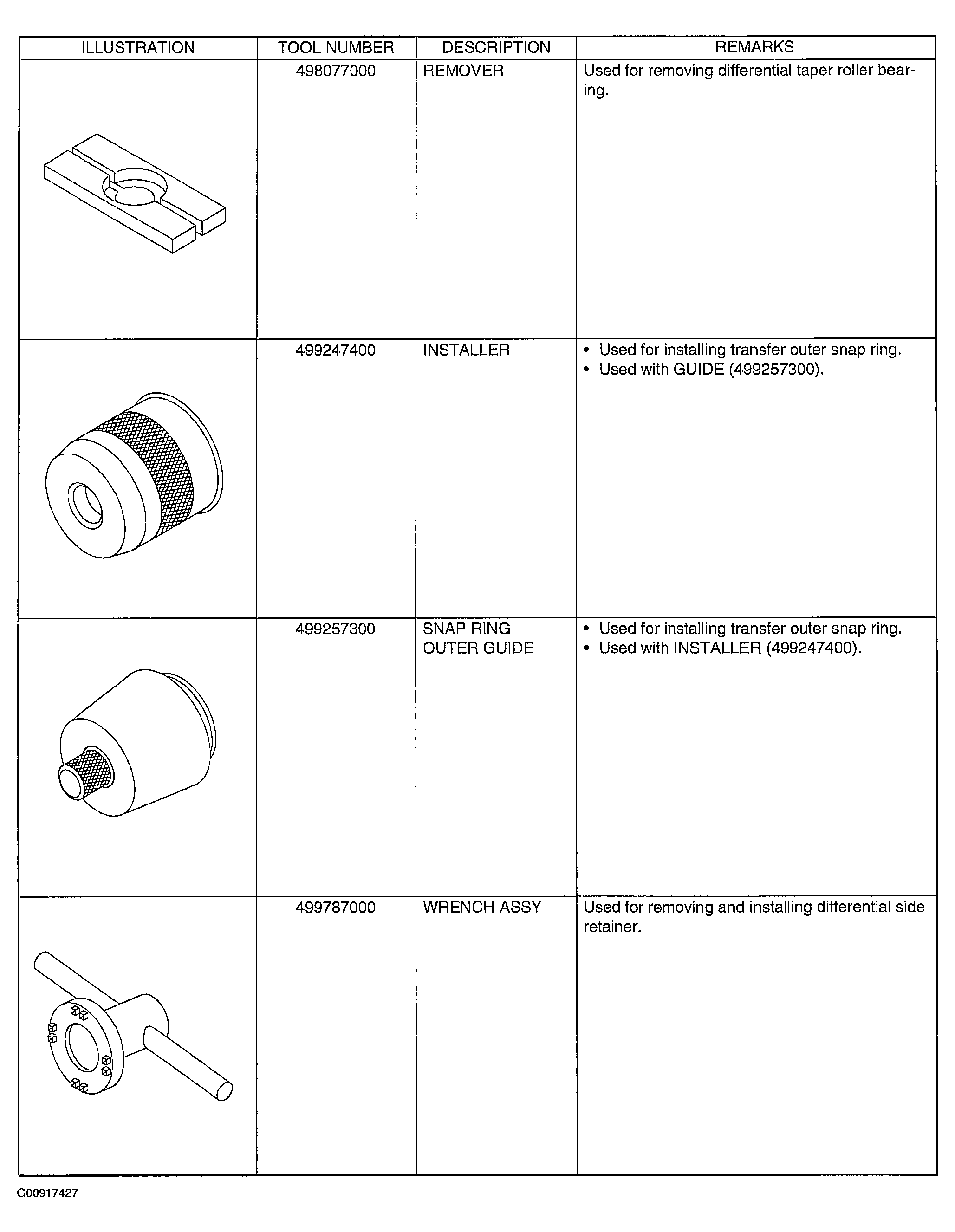

    Fig 3: Identifying Special Tools (3 Of 12)
    G00917427Courtesy of SUBARU OF AMERICA, INC.

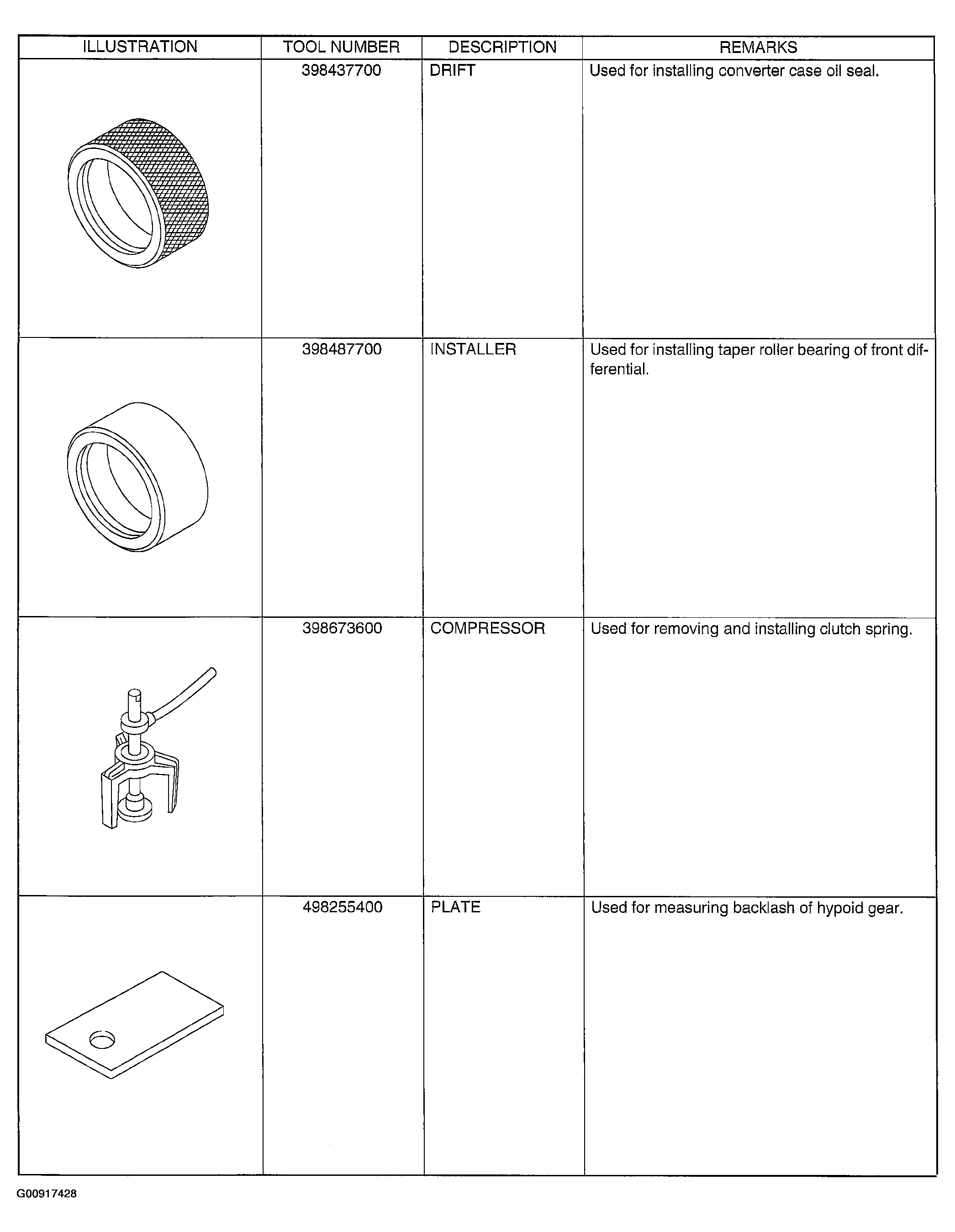

    Fig 4: Identifying Special Tools (4 Of 12)
    G00917428Courtesy of SUBARU OF AMERICA, INC.

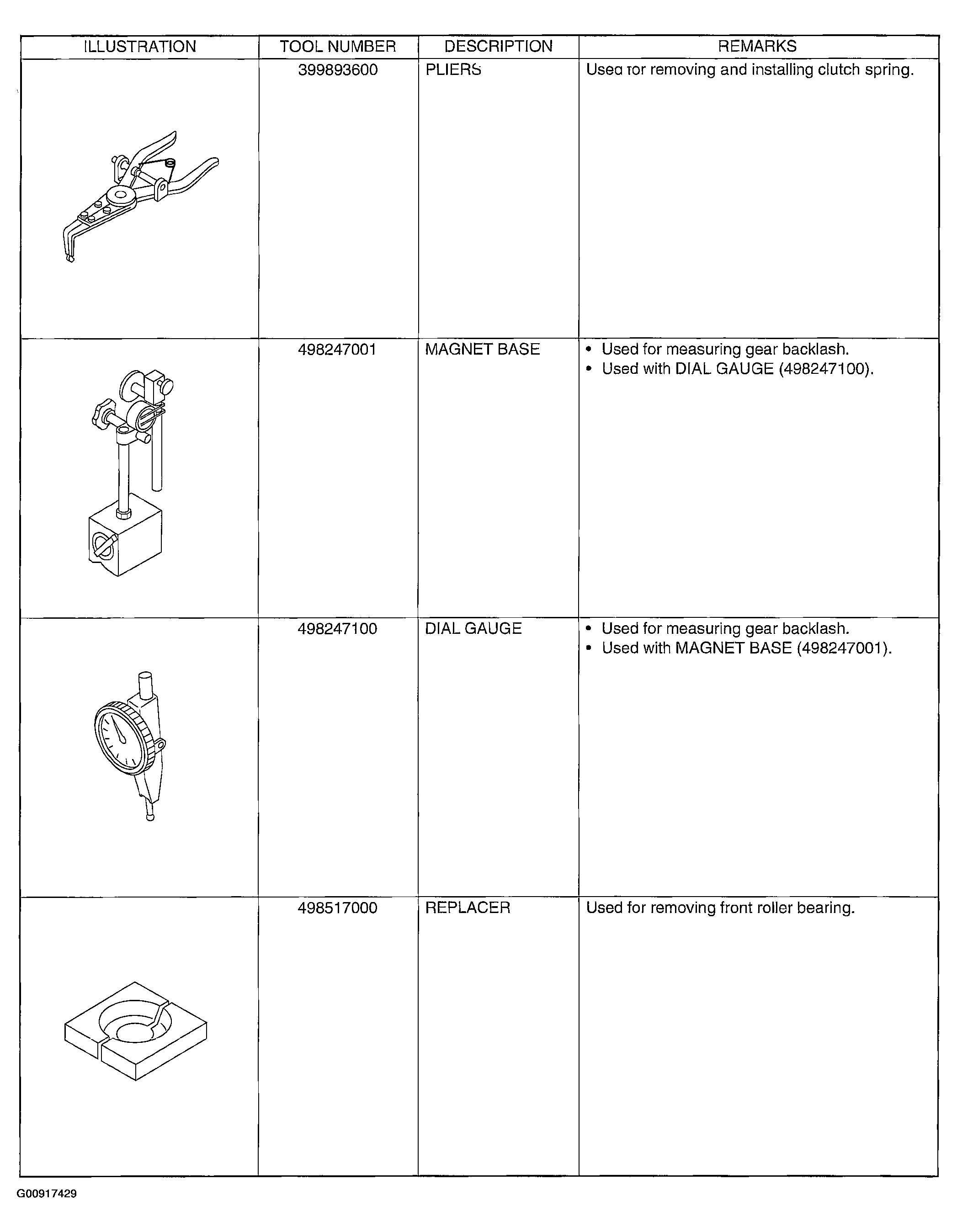

    Fig 5: Identifying Special Tools (5 Of 12)
    G00917429Courtesy of SUBARU OF AMERICA, INC.

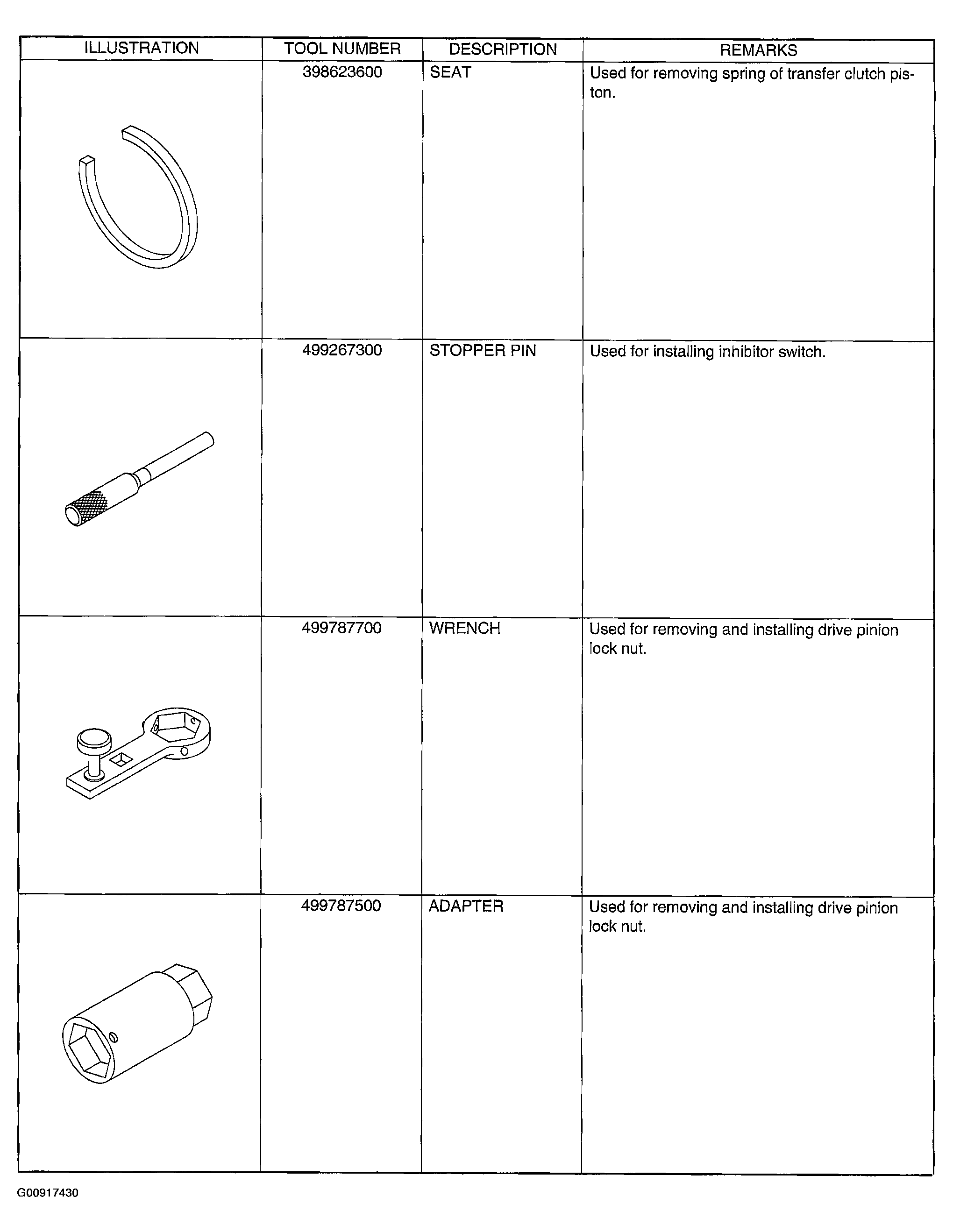

    Fig 6: Identifying Special Tools (6 Of 12)
    G00917430Courtesy of SUBARU OF AMERICA, INC.

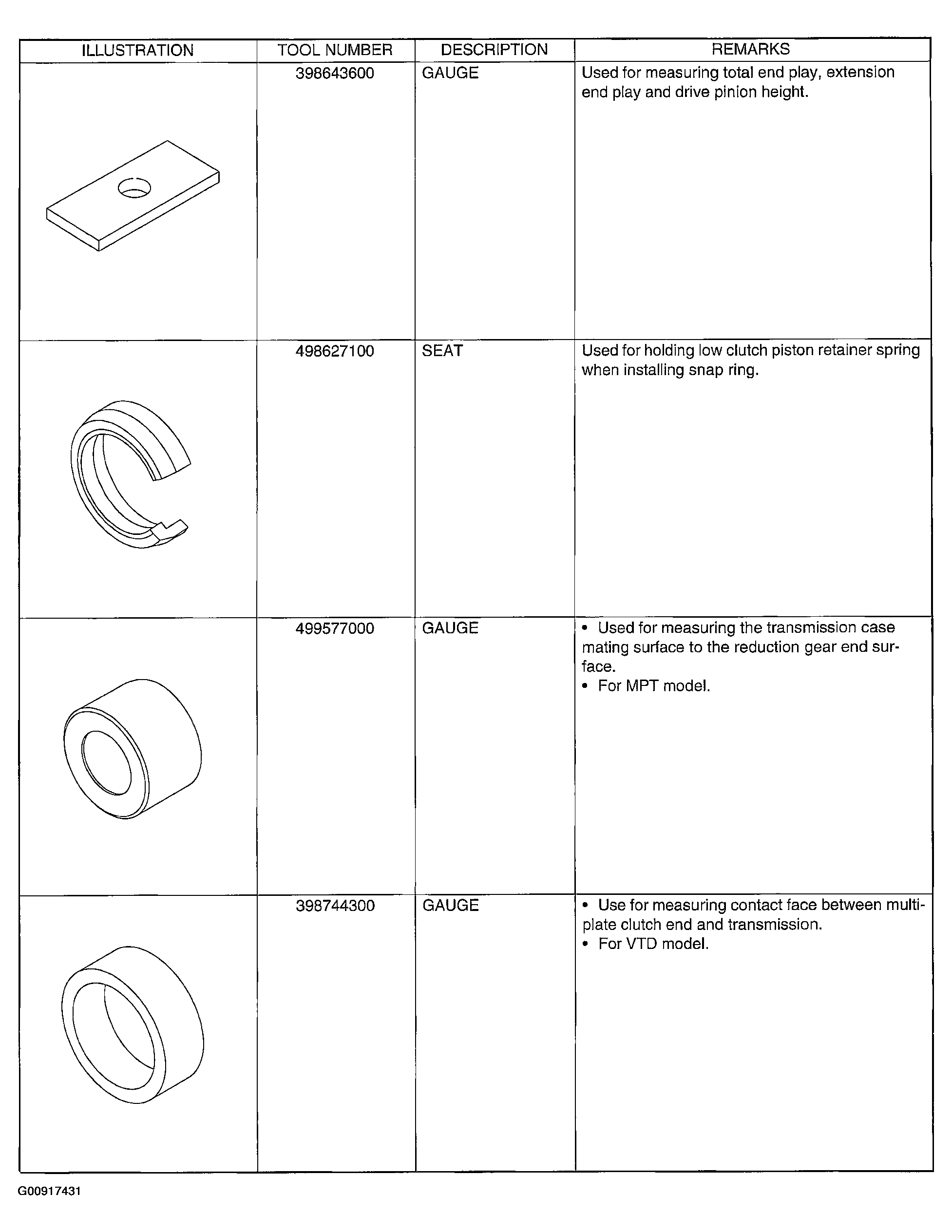

    Fig 7: Identifying Special Tools (7 Of 12)
    G00917431Courtesy of SUBARU OF AMERICA, INC.

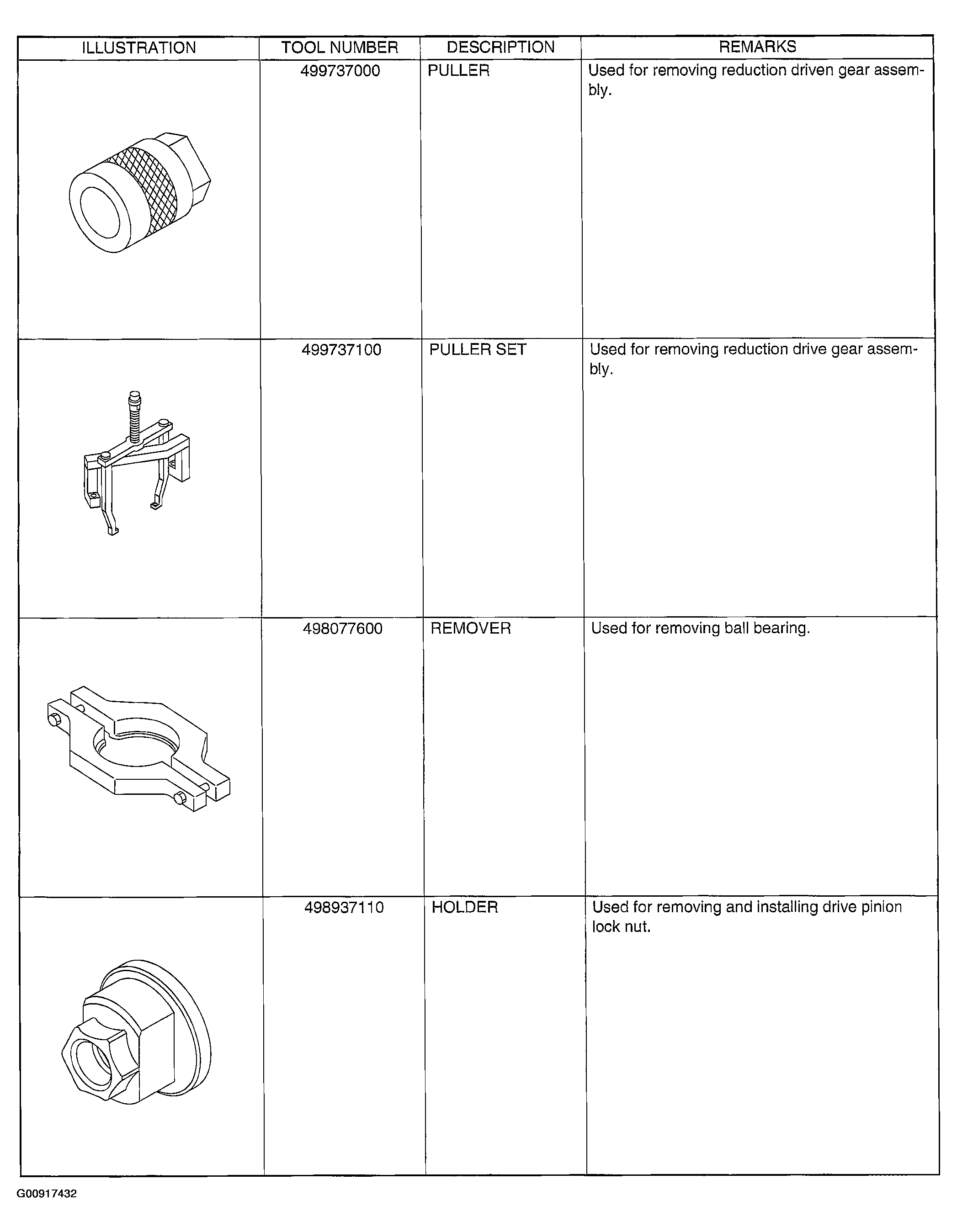

    Fig 8: Identifying Special Tools (8 Of 12)
    G00917432Courtesy of SUBARU OF AMERICA, INC.

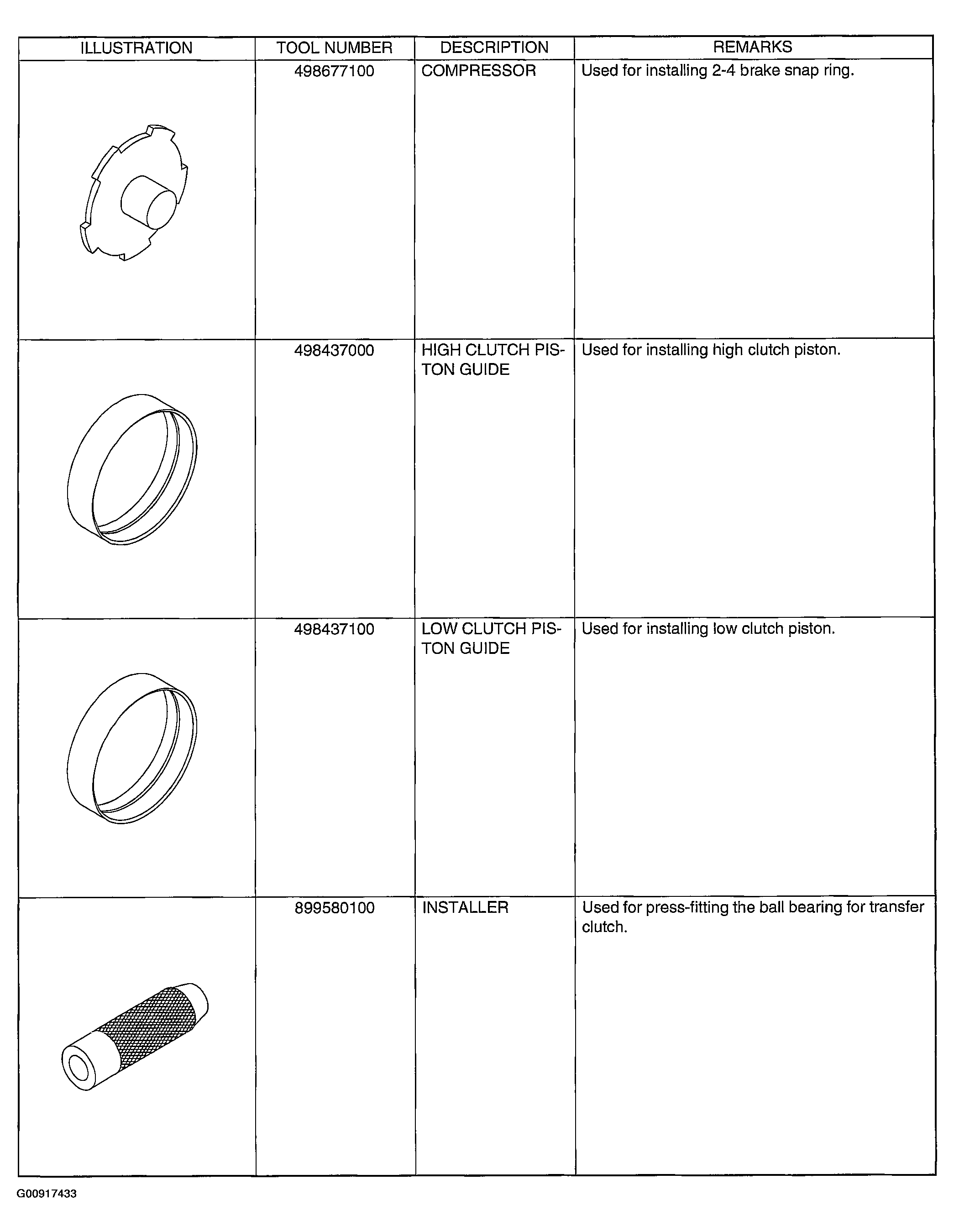

    Fig 9: Identifying Special Tools (9 Of 12)
    G00917433Courtesy of SUBARU OF AMERICA, INC.
    Fig 10: Identifying Special Tools (10 Of 12)
    G00917434Courtesy of SUBARU OF AMERICA, INC.

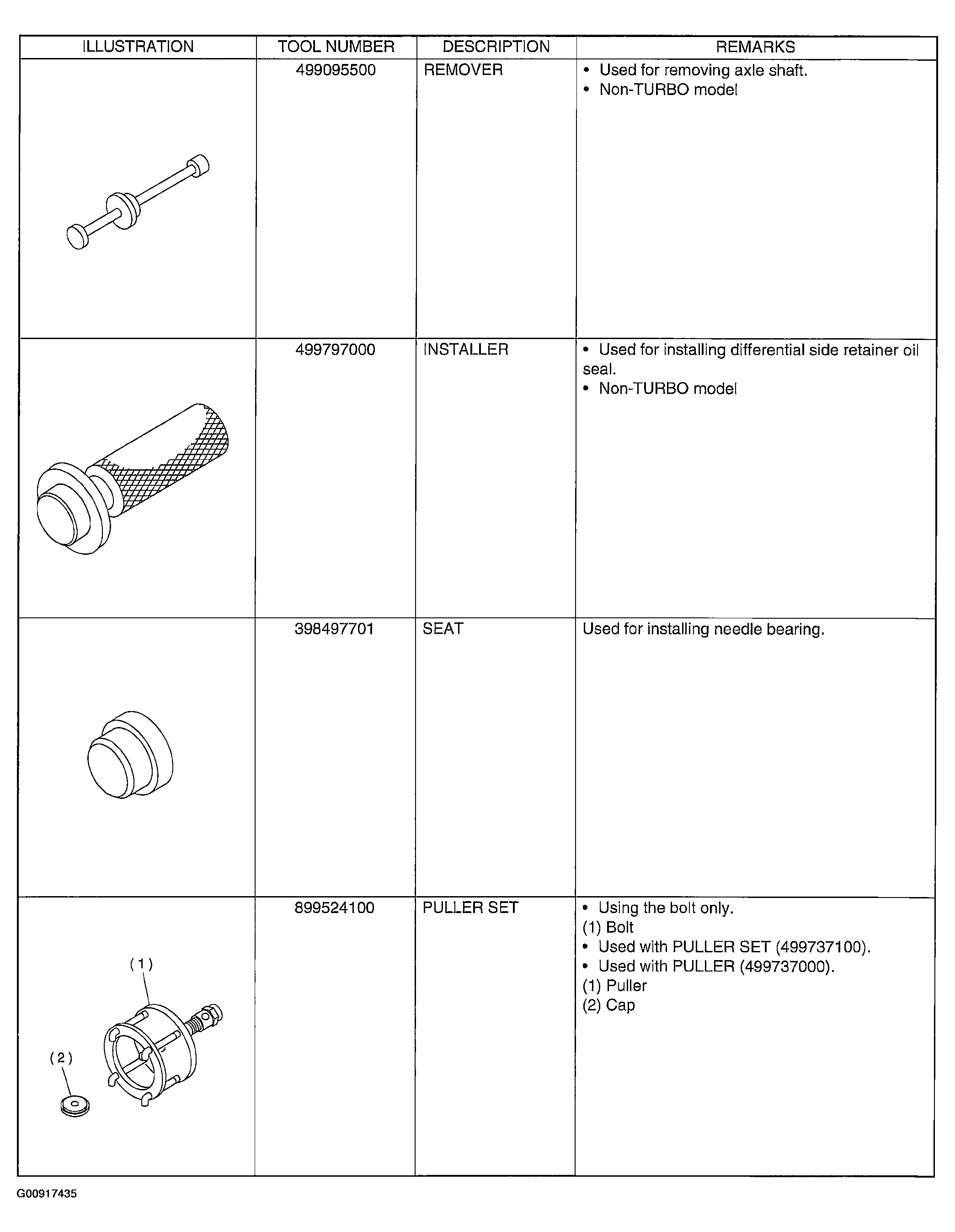

    Fig 11: Identifying Special Tools (11 Of 12)
    G00917435Courtesy of SUBARU OF AMERICA, INC.

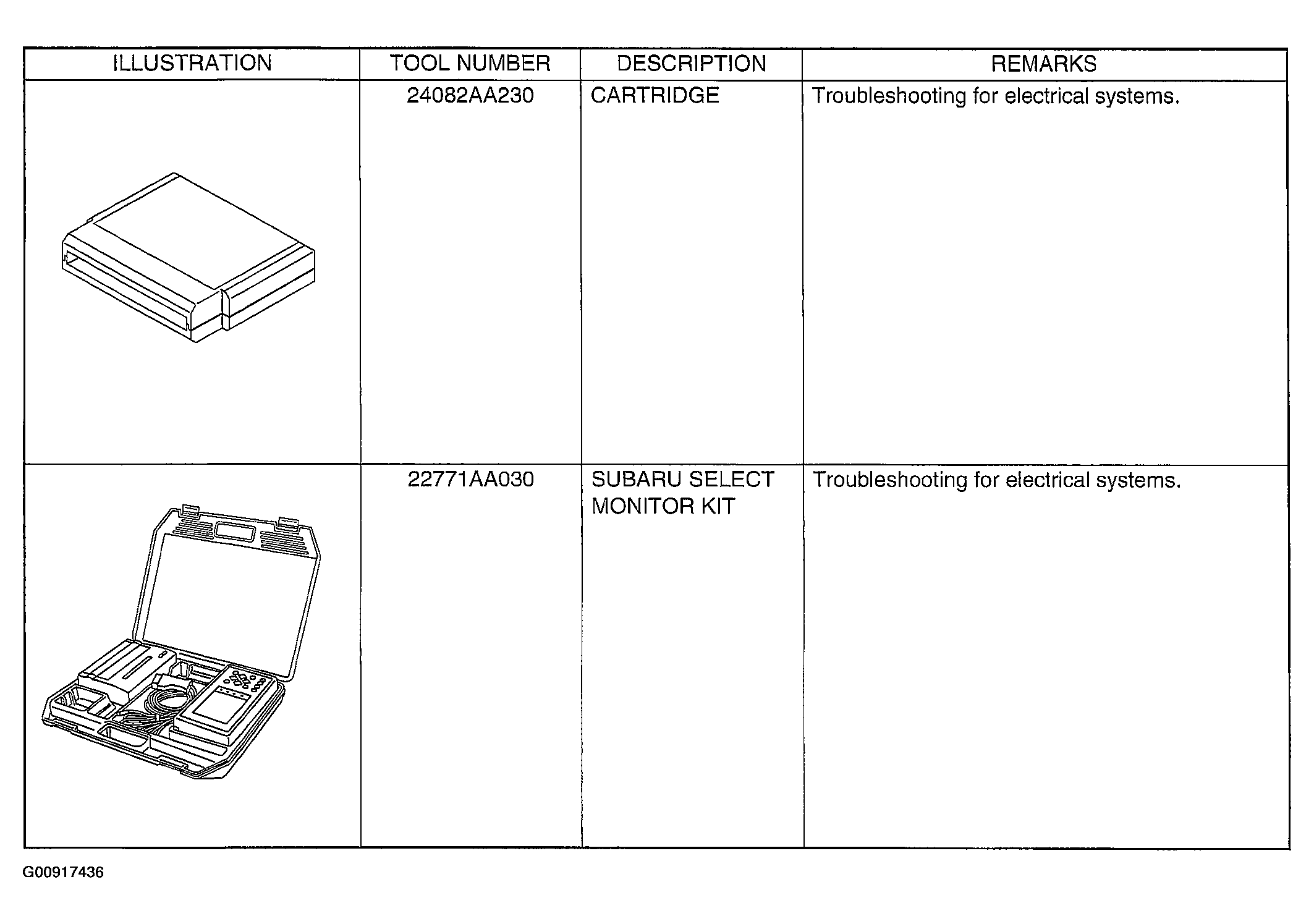

    Fig 12: Identifying Special Tools (12 Of 12)
    G00917436Courtesy of SUBARU OF AMERICA, INC.
  2. GENERAL PURPOSE TOOLS

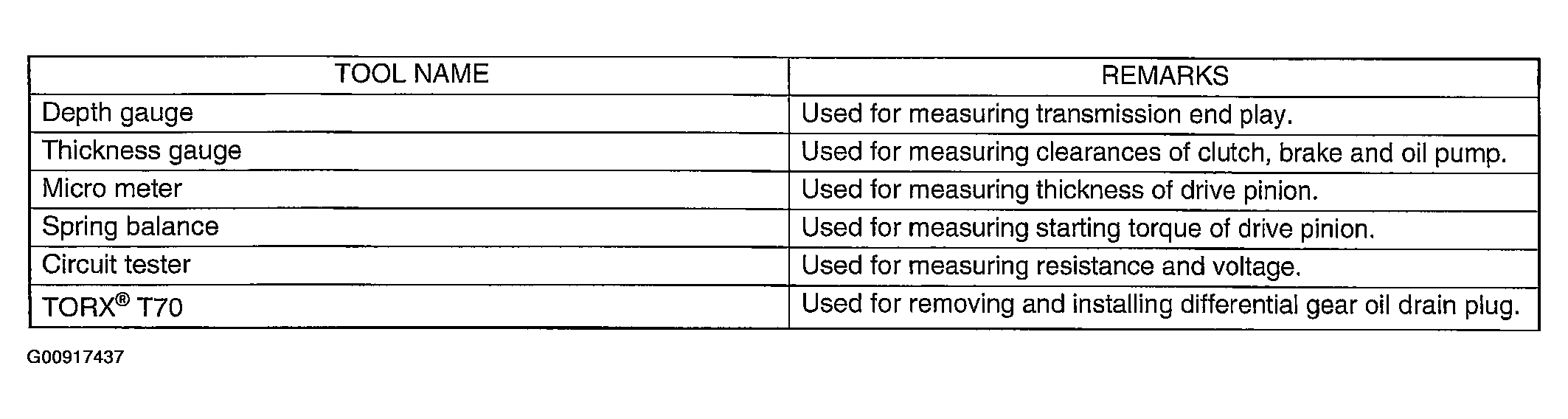

    Fig 13: General Purpose Tools Description Table
    G00917437Courtesy of SUBARU OF AMERICA, INC.
