Fuel Tank Pressure Sensor: Service and Repair

REMOVAL

1. Set the vehicle on the lift.
2. Open fuel flap lid, and remove fuel filler cap.

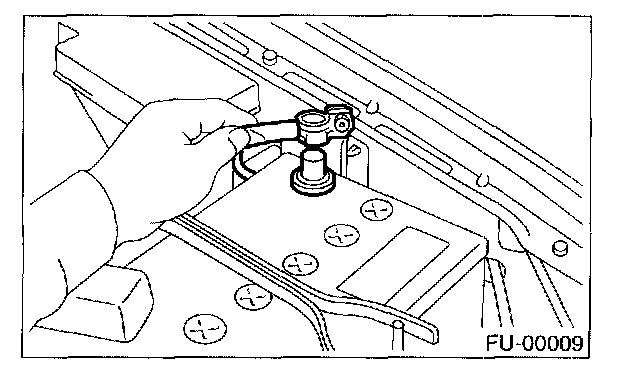

3. Disconnect battery ground cable.
4. Lift-up the vehicle.

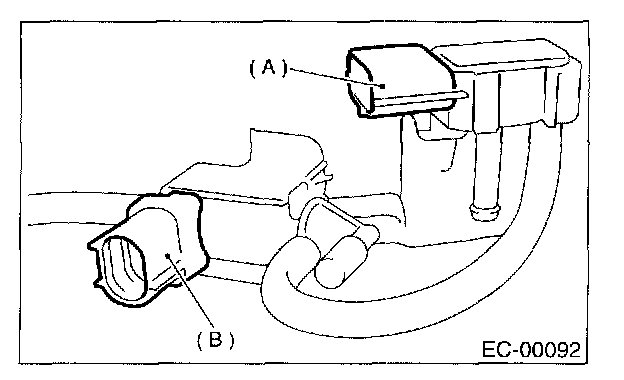

5. Disconnect connector from fuel tank pressure sensor and atmospheric pressure solenoid valve.

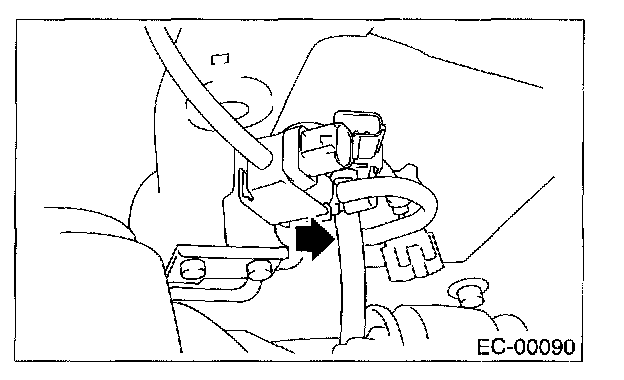

6. Disconnect pressure hose from fuel tank pressure sensor.

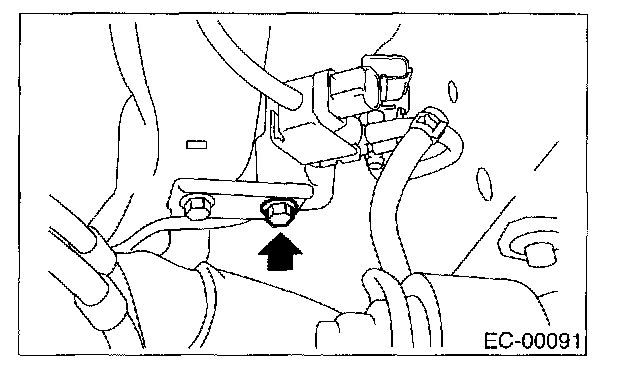

7. Remove fuel tank pressure sensor and atmospheric pressure solenoid valve with bracket.




8. Remove atmospheric pressure solenoid valve from bracket.

NOTE: Fuel tank pressure sensor cannot be removed because it is integral with bracket.

INSTALLATION




Install in the reverse order of removal.

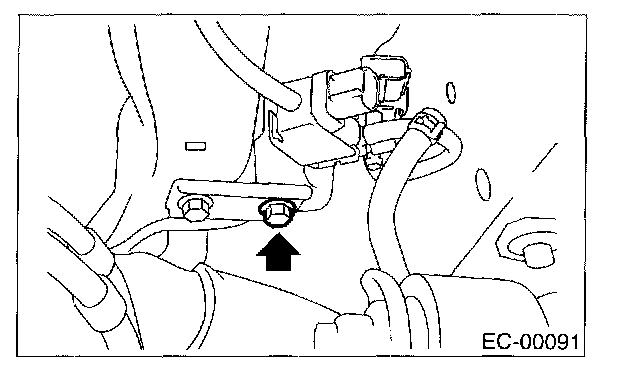

Tightening torque: 7.4 N.m (0.75 kgf-m, 5.4 ft-lb)
