Disassembly and Assembly

DISASSEMBLY

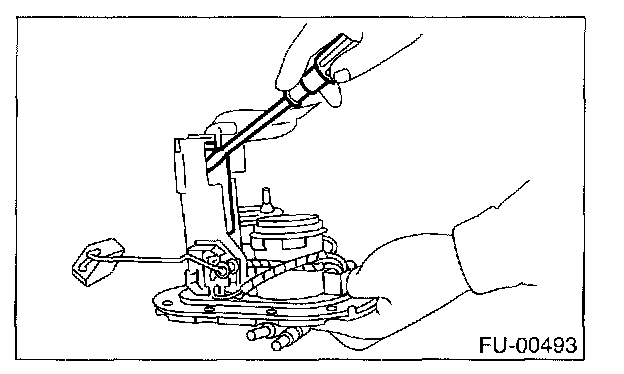

1. Remove fuel pump and pump holder.

NOTE: When disassembling pump holder, be careful as it is installed with two pawls.

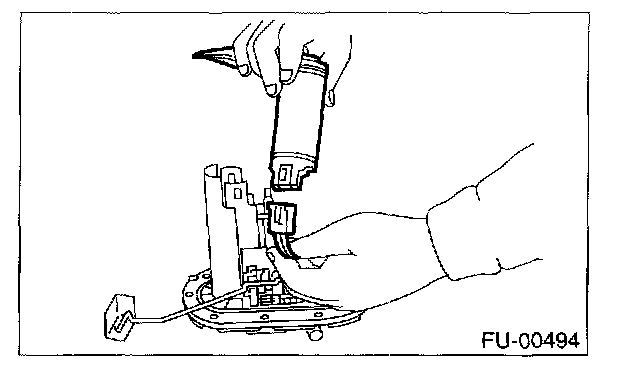

2. Disconnect connector from fuel pump.

ASSEMBLY
Assemble in the reverse order of disassembly.
