Diagnostic Method

• Abnormality Judgment

Judge NG when the continuous time of completing the malfunction criteria below becomes more than 2.5 seconds.

• Judgment Value

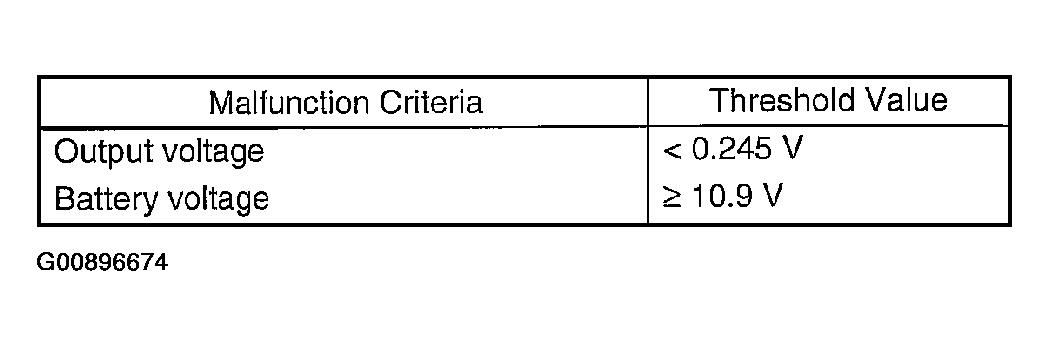

Fig 1: Judgment Value Table (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Time Needed for Diagnosis:  2.5 seconds

Malfunction Indicator Light Illumination:  Illuminates as soon as the malfunction occurs.

• Normality Judgment

Judge OK when the cumulative time until completing the malfunction criteria below becomes more than 2.5 seconds.

• Judgment Value

Fig 2: Judgment Value Table (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
