Enable Condition

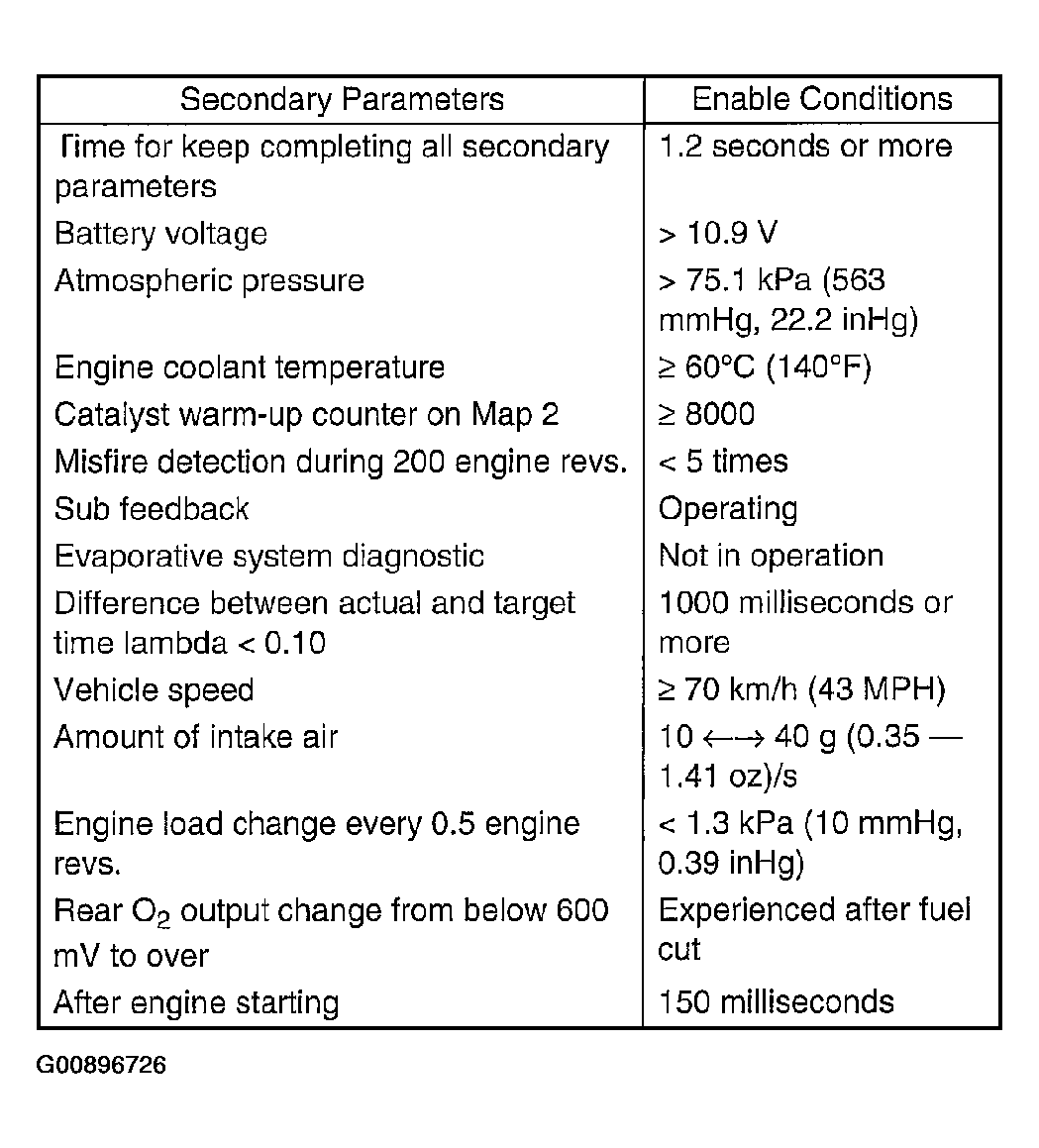

Fig 1: Enable Condition Chart

Courtesy of SUBARU OF AMERICA, INC.

• Map 2

Add the following value every 512 milliseconds.

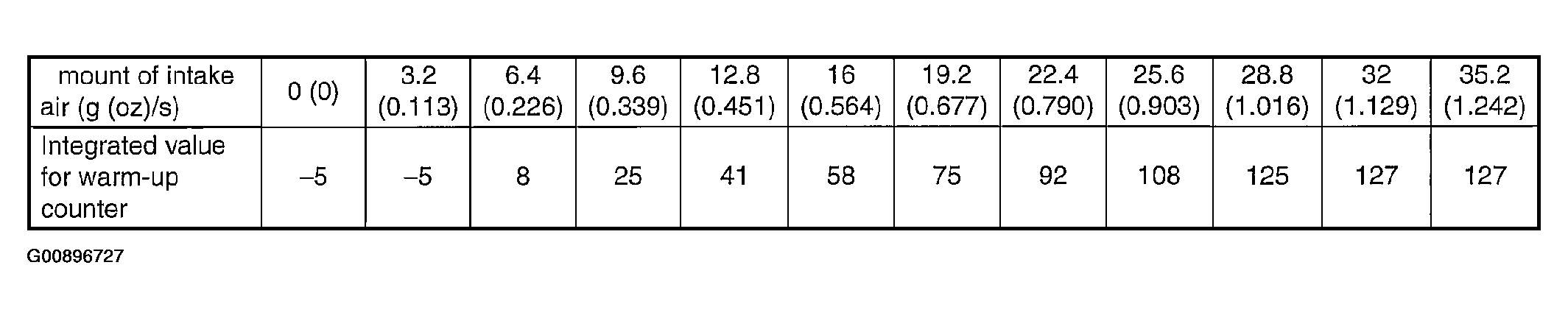

Fig 2: Intake Air Specification Table

Courtesy of SUBARU OF AMERICA, INC.
